0.75-inch compression driver · 51 mm voice coil · 50 W
Eighteen Sound ND100KT 8Ω
8 Ω · 500–5000 Hz
No current price
- SPL
- 111dB
- Pe
- 50W
- Xover
- 500Hz
- Throat
- 19mm
- VC
- 51mm

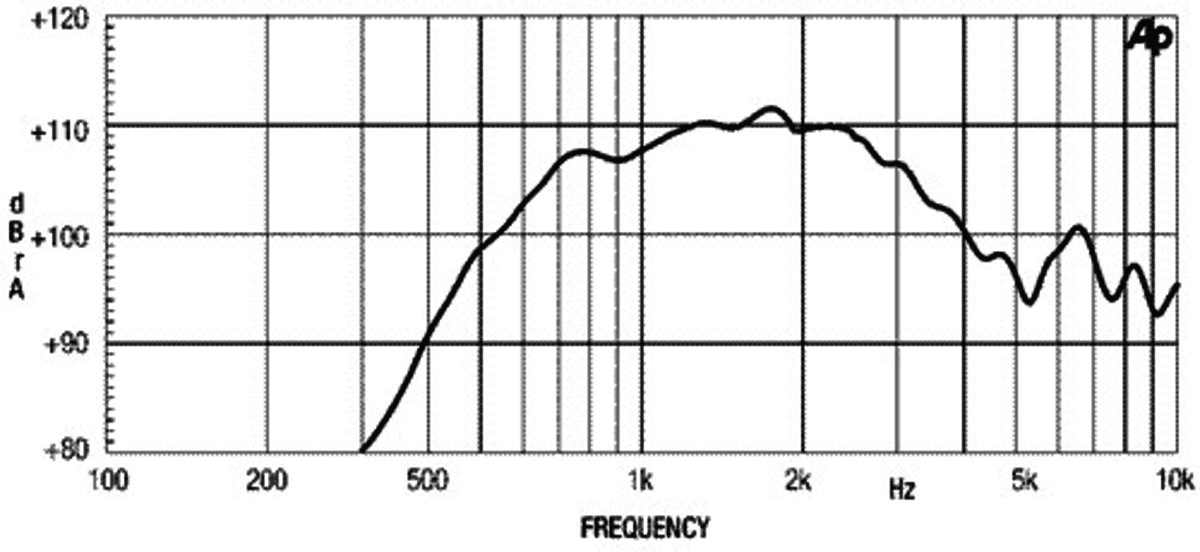

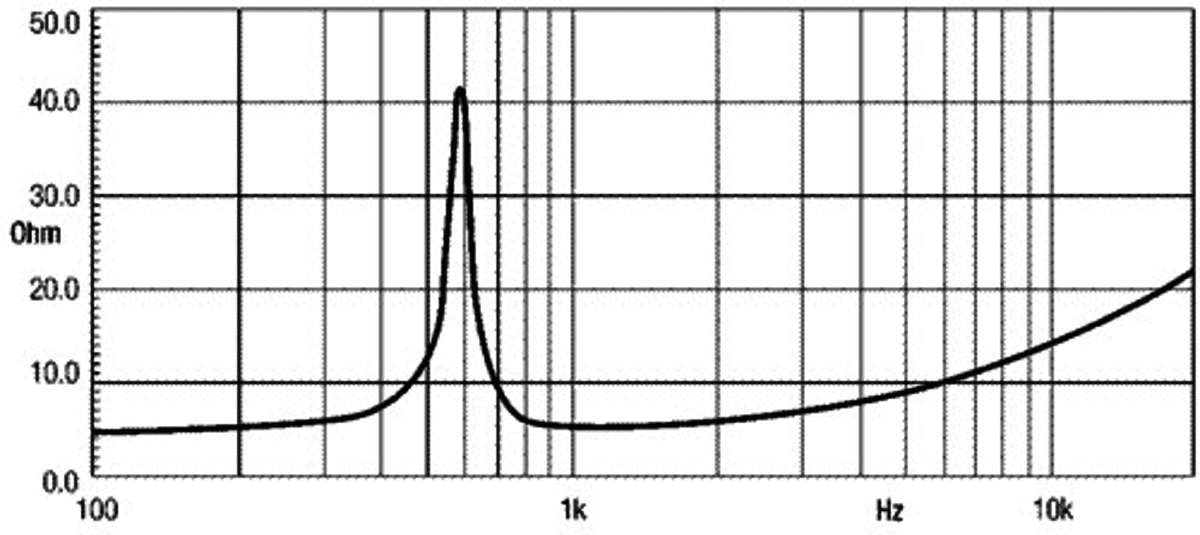

Published graphs
Eighteen Sound ND100KT is a 0.75-inch 8 ohm compression driver rated at 50 W RMS. The source-backed specifications include sensitivity 111 dB, range from 500 Hz, to 5000 Hz, throat 19 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 51mm
Power and response
- Sensitivity
- 111dB
- Power
- 50W
- Nominal power
- 50W
- Impedance
- 8Ω
- Min. impedance
- 5.5Ω
- Range
- 500–5000Hz
- Crossover
- 500Hz
- Throat
- 19mm
Size and mounting
- Weight
- 1.5kg
Other published values
- Power Program
- 100
Everything else Eighteen Sound lists
HF · Primary · 0.75″
- SPL
- 111dB
- Power
- 50W
- Impedance
- 8Ω
- Sensitivity
- 111dB
- Low limit
- 500Hz
- Nominal power
- 50W
- Power Program
- 100
- High limit
- 5000Hz
- Throat
- 19mm
- Manufacturer sensitivity
- 111dB
- Min. impedance
- 5.5Ω
- Voice coil
- 51mm
- Crossover
- 500Hz
- Weight
- 1.5kg
