1.5-inch compression driver · 75 mm voice coil · 100 W
Eighteen Sound HD1480T 8Ω
8 Ω · 500–20000 Hz
- SPL
- 109dB
- Pe
- 100W
- Xover
- 800Hz
- Throat
- 35mm
- VC
- 75mm

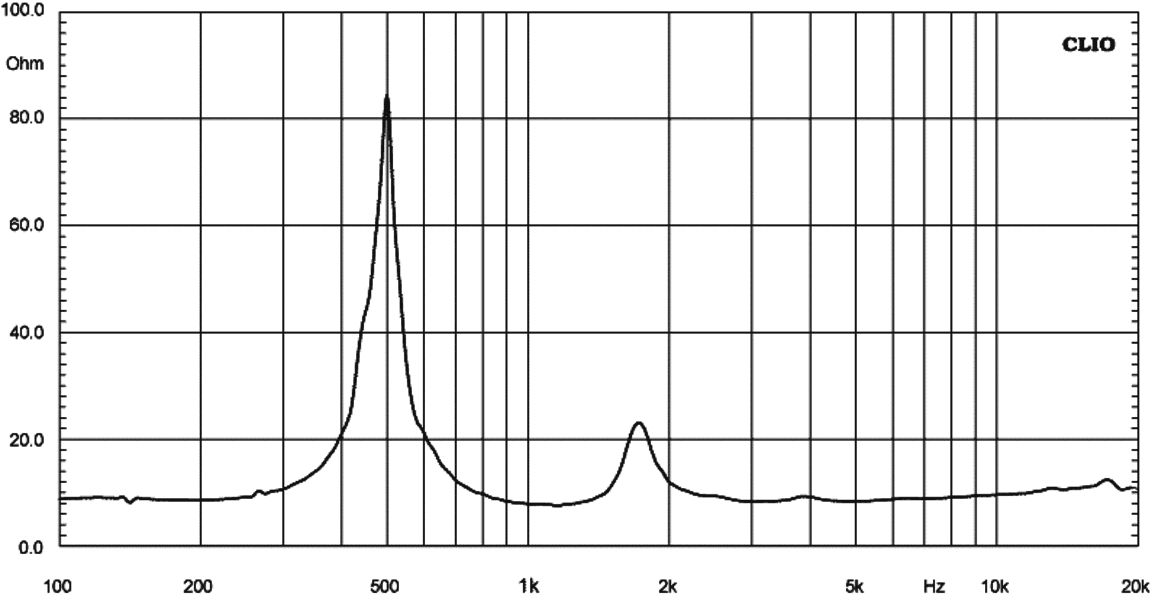

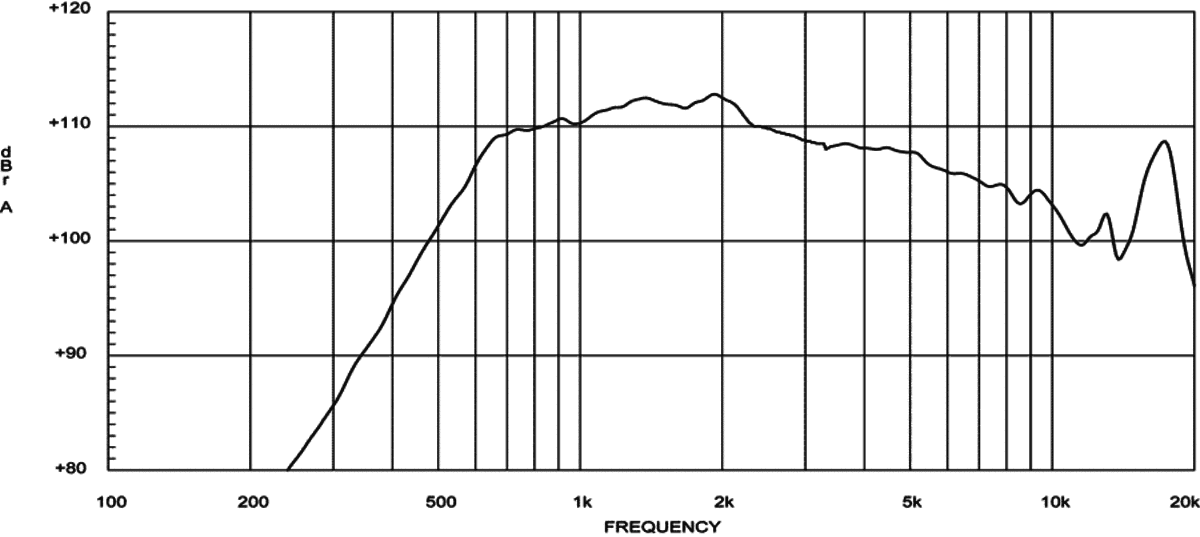

Published graphs
Eighteen Sound HD1480T is a 1.5-inch 8 ohm compression driver rated at 100 W RMS. The source-backed specifications include sensitivity 109 dB, range from 500 Hz, to 20000 Hz, throat 35 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £202.63.
Source-backed specifications
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 109dB
- Power
- 100W
- Nominal power
- 100W
- Impedance
- 8Ω
- Min. impedance
- 8Ω
- Range
- 500–20000Hz
- Crossover
- 800Hz
- Throat
- 35mm
Size and mounting
- Diameter
- 169mm
- Depth
- 75mm
- Weight
- 5.3kg
Other published values
- Power Program
- 200
Everything else Eighteen Sound lists
HF · Primary · 1.4″
- SPL
- 109dB
- Power
- 100W
- Impedance
- 8Ω
- Sensitivity
- 109dB
- Low limit
- 500Hz
- Nominal power
- 100W
- Power Program
- 200
- High limit
- 20000Hz
- Throat
- 35mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 8Ω
- Voice coil
- 75mm
- Crossover
- 800Hz
- Weight
- 5.3kg
- Diameter
- 169mm
- Depth
- 75mm
- Thomann5.0 out of 54 ratings · Checked 23 Oct 2026Read reviews on Thomann
Each shop collects its own ratings. Bits shows them as published and doesn't verify them.
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £202.63, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £202.63 | 2 in stock | Visit shop at Lean Audio | |
Thomann | £236.00 | 17% above the lowest price | In stock | Visit shop at Thomann |
Best price over time
Tracked since 1 Apr
Recent changes
- 19 OctThomann£237.00 → £236.00Down 0.4% from £237.00
- 11 OctThomann£238.00 → £237.00Down 0.4% from £238.00
- 3 OctThomann£240.00 → £238.00Down 0.8% from £240.00
