1-inch compression driver · 25 mm voice coil · 20 W
Eighteen Sound HD110 8Ω
8 Ω · 2000–20000 Hz
No price for delivery to the UK
- SPL
- 109dB
- Pe
- 20W
- Xover
- 2500Hz
- Throat
- 25mm
- VC
- 25mm

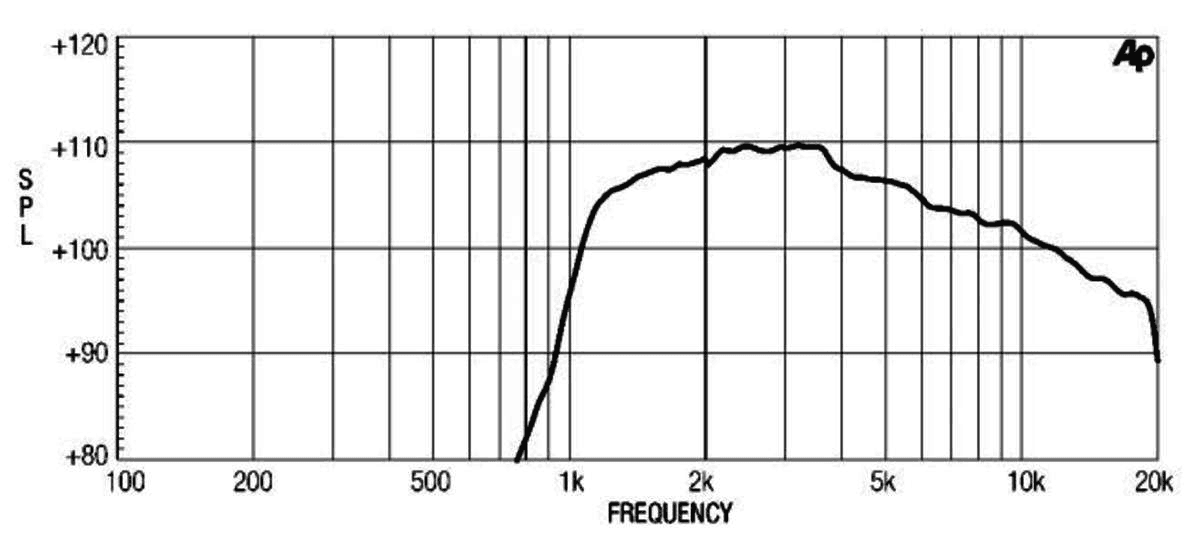

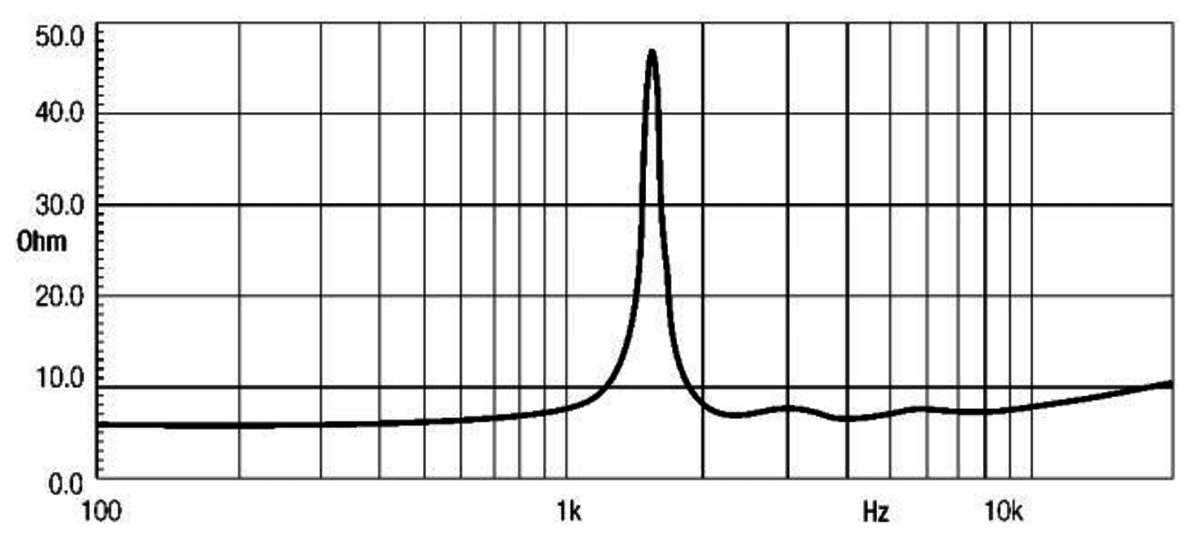

Published graphs
Eighteen Sound HD110 is a 1-inch 8 ohm compression driver rated at 20 W RMS. The source-backed specifications include sensitivity 109 dB, range from 2000 Hz, to 20000 Hz, throat 25 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 25mm
Power and response
- Sensitivity
- 109dB
- Power
- 20W
- Nominal power
- 20W
- Impedance
- 8Ω
- Min. impedance
- 7Ω
- Range
- 2000–20000Hz
- Crossover
- 2500Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 86mm
- Depth
- 62mm
- Weight
- 0.8kg
Other published values
- Power Program
- 40
Everything else Eighteen Sound lists
HF · Primary · 1″
- SPL
- 109dB
- Power
- 20W
- Impedance
- 8Ω
- Sensitivity
- 109dB
- Low limit
- 2000Hz
- Nominal power
- 20W
- Power Program
- 40
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 7Ω
- Voice coil
- 25mm
- Crossover
- 2500Hz
- Weight
- 0.8kg
- Diameter
- 86mm
- Depth
- 62mm
