1-inch compression driver · 44 mm voice coil · 40 W
Eighteen Sound HD1040 8Ω
8 Ω · 1600–20000 Hz
£91.37
SteadyLean Business · All 3 offers
- SPL
- 107dB
- Pe
- 40W
- Xover
- 1600Hz
- Throat
- 25mm
- VC
- 44mm

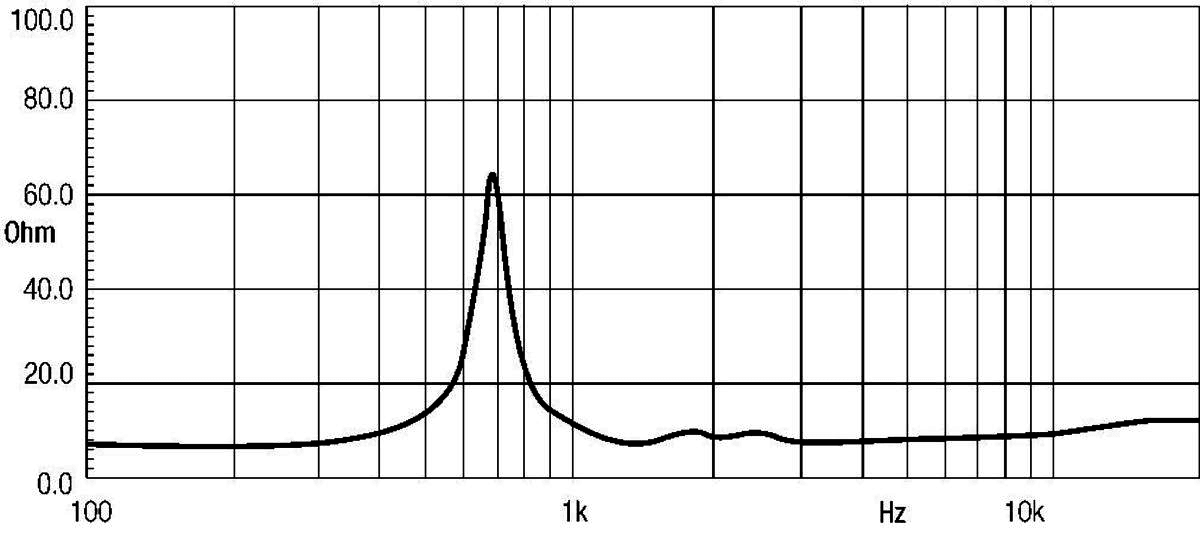

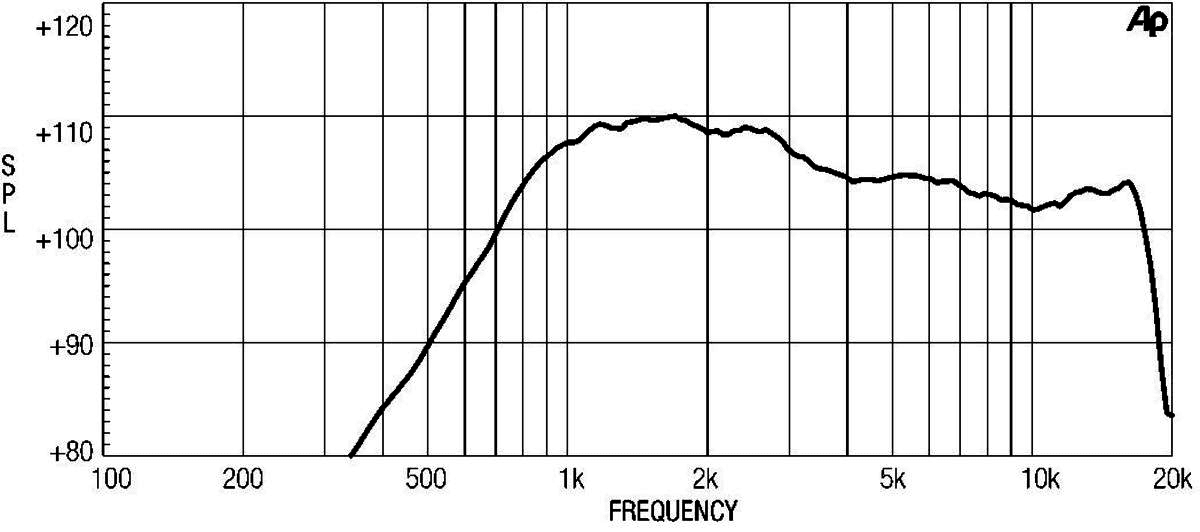

Published graphs
Eighteen Sound HD1040 is a 1-inch 8 ohm compression driver rated at 40 W RMS. The source-backed specifications include sensitivity 107 dB, range from 1600 Hz, to 20000 Hz, throat 25 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £91.37.
Source-backed specifications
Motor and cone
- Voice coil
- 44mm
Power and response
- Sensitivity
- 107dB
- Power
- 40W
- Nominal power
- 40W
- Impedance
- 8Ω
- Min. impedance
- 7Ω
- Range
- 1600–20000Hz
- Crossover
- 1600Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 110mm
- Depth
- 60mm
- Weight
- 1.6kg
Other published values
- Power Program
- 80
Everything else Eighteen Sound lists
HF · Primary · 1″
- SPL
- 107dB
- Power
- 40W
- Impedance
- 8Ω
- Sensitivity
- 107dB
- Low limit
- 1600Hz
- Nominal power
- 40W
- Power Program
- 80
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 107dB
- Min. impedance
- 7Ω
- Voice coil
- 44mm
- Crossover
- 1600Hz
- Weight
- 1.6kg
- Diameter
- 110mm
- Depth
- 60mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £91.37, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £108.62 | 19% above the lowest price | 2 in stock | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
