1-inch compression driver · 34 mm voice coil · 30 W
Eighteen Sound HD1030 8Ω
8 Ω · 1800–20000 Hz
£66.69
SteadyLean Business · All 3 offers
- SPL
- 106dB
- Pe
- 30W
- Xover
- 1800Hz
- Throat
- 25mm
- VC
- 34mm

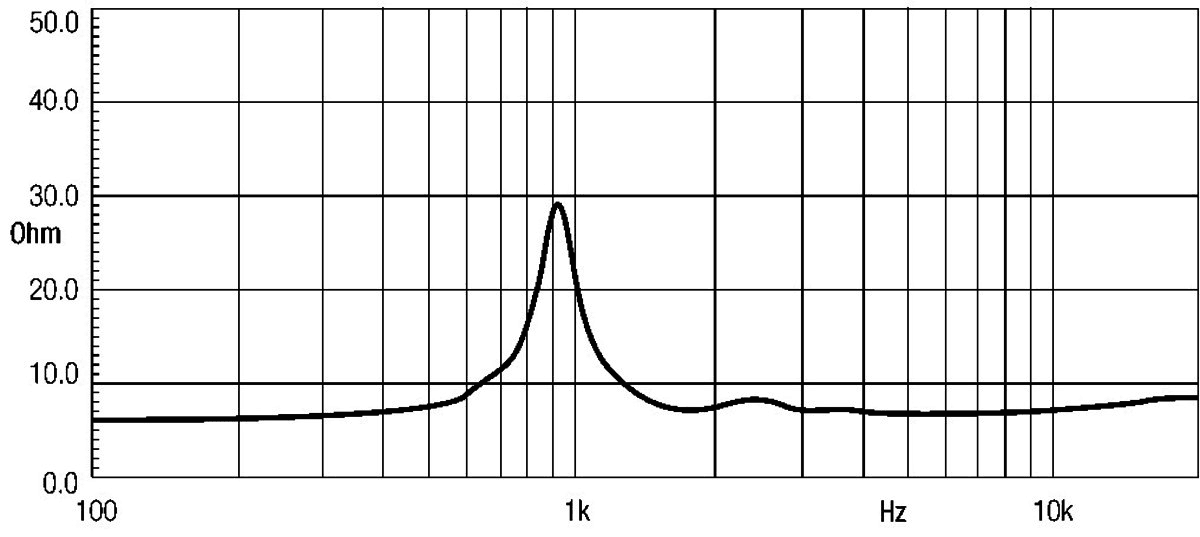

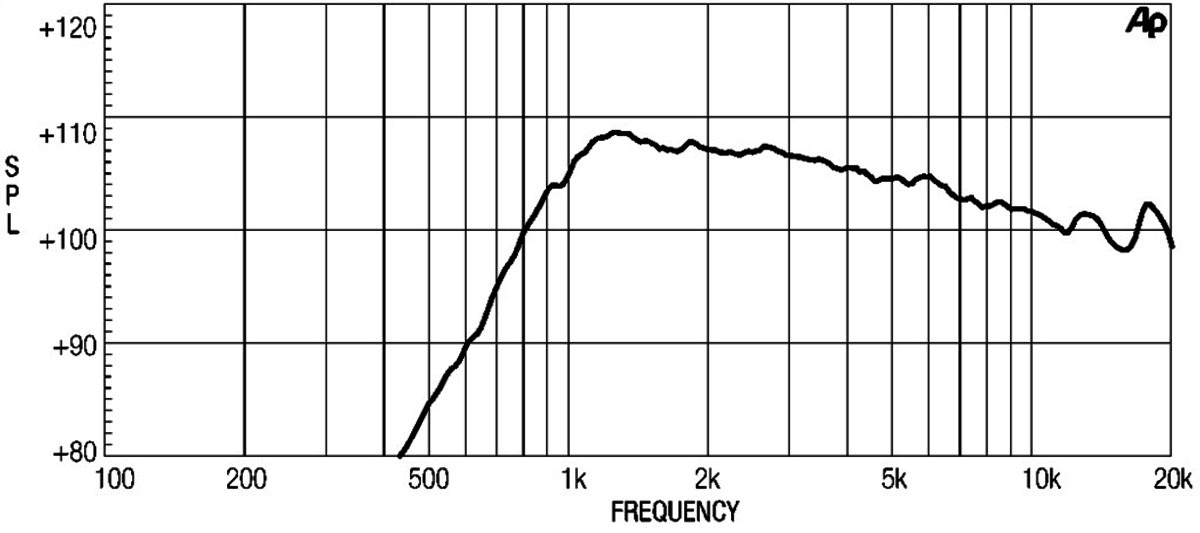

Published graphs
Eighteen Sound HD1030 is a 1-inch 8 ohm compression driver rated at 30 W RMS. The source-backed specifications include sensitivity 106 dB, range from 1800 Hz, to 20000 Hz, throat 25 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £66.69.
Source-backed specifications
Motor and cone
- Voice coil
- 34mm
Power and response
- Sensitivity
- 106dB
- Power
- 30W
- Nominal power
- 30W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 1800–20000Hz
- Crossover
- 1800Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 91mm
- Depth
- 51mm
- Weight
- 1kg
Other published values
- Power Program
- 60
Everything else Eighteen Sound lists
HF · Primary · 1″
- SPL
- 106dB
- Power
- 30W
- Impedance
- 8Ω
- Sensitivity
- 106dB
- Low limit
- 1800Hz
- Nominal power
- 30W
- Power Program
- 60
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 106dB
- Min. impedance
- 6.5Ω
- Voice coil
- 34mm
- Crossover
- 1800Hz
- Weight
- 1kg
- Diameter
- 91mm
- Depth
- 51mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £66.69, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £66.70 | In stock | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
