1-inch compression driver · 44 mm voice coil · 50 W
Eighteen Sound HD1000 8Ω
8 Ω · 1600–20000 Hz
No price for delivery to the UK
- SPL
- 109dB
- Pe
- 50W
- Xover
- 1600Hz
- Throat
- 25mm
- VC
- 44mm

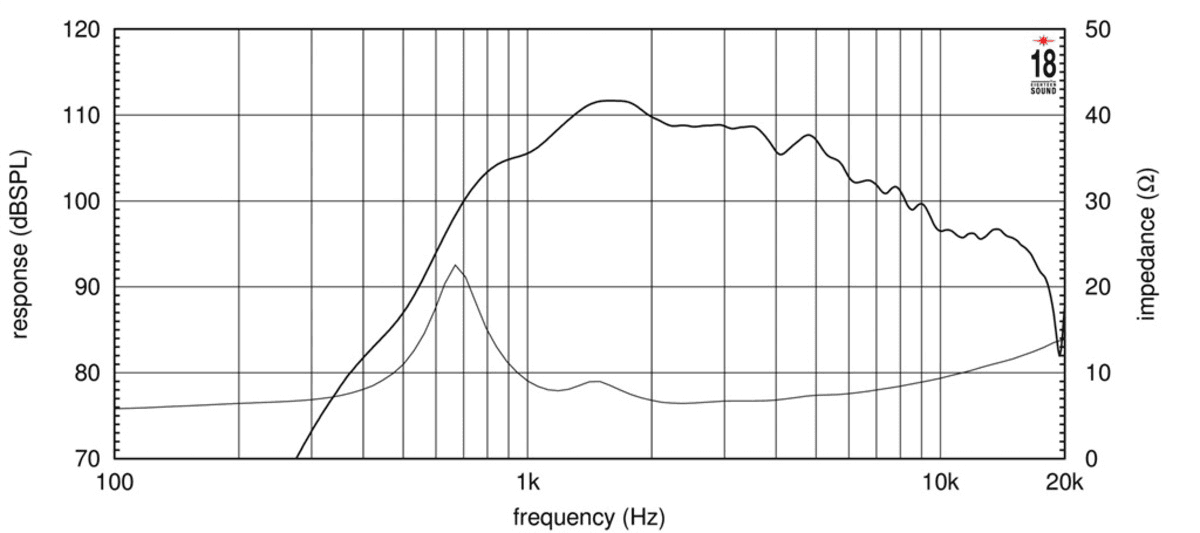

Published graphs
Eighteen Sound HD1000 is a 1-inch 8 ohm compression driver rated at 50 W RMS. The source-backed specifications include sensitivity 109 dB, range from 1600 Hz, to 20000 Hz, throat 25 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 44mm
Power and response
- Sensitivity
- 109dB
- Power
- 50W
- Nominal power
- 50W
- Impedance
- 8Ω
- Min. impedance
- 6.7Ω
- Range
- 1600–20000Hz
- Crossover
- 1600Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 100mm
- Depth
- 61mm
- Weight
- 1.4kg
Other published values
- Power Program
- 100
Everything else Eighteen Sound lists
HF · Primary · 1″
- SPL
- 109dB
- Power
- 50W
- Impedance
- 8Ω
- Sensitivity
- 109dB
- Low limit
- 1600Hz
- Nominal power
- 50W
- Power Program
- 100
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 6.7Ω
- Voice coil
- 44mm
- Crossover
- 1600Hz
- Weight
- 1.4kg
- Diameter
- 100mm
- Depth
- 61mm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £144.83 | Out of stock | Visit shop at Lean Audio |
