2-inch compression driver · CDX20 series · 75 mm voice coil · 100 W

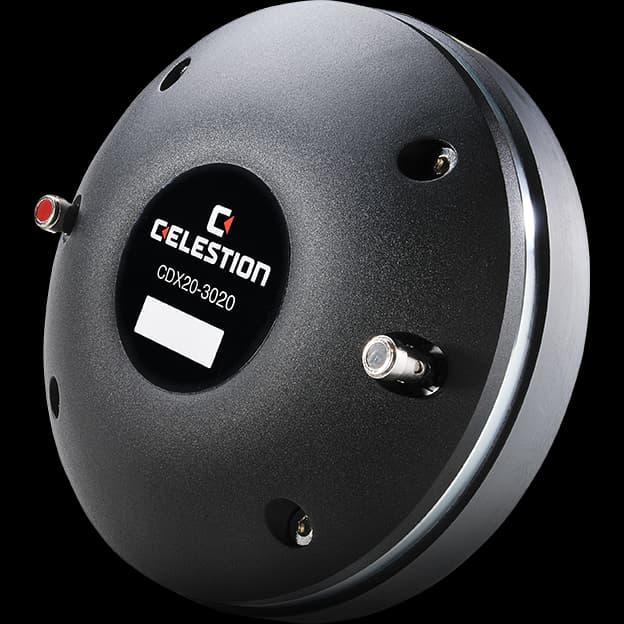

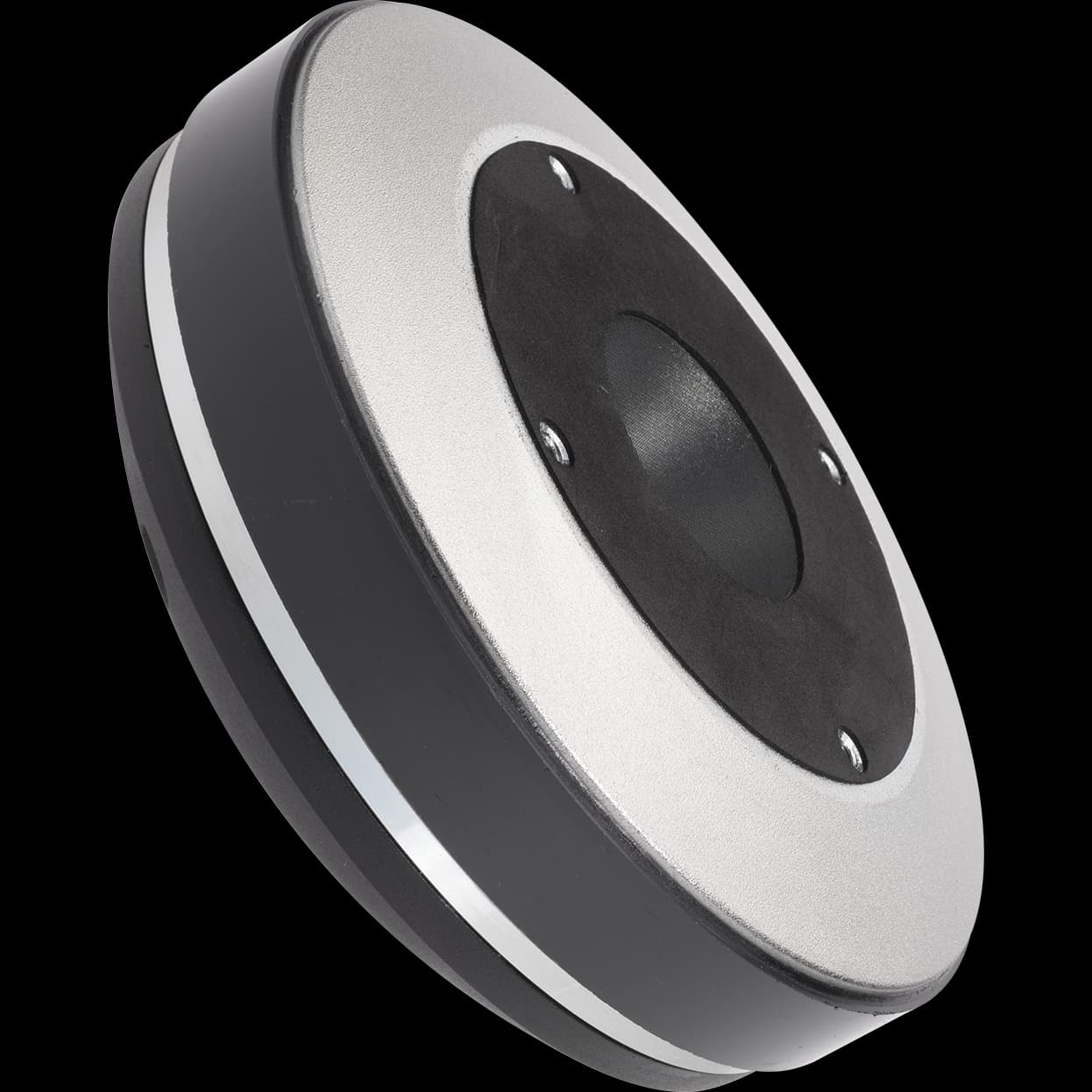

Celestion CDX20-3020 8Ω
8 Ω · 500–18000 Hz
£159.97
8.6%Lean Audio · 2 in stock · All 2 offers
- SPL
- 107dB
- Pe
- 100W
- Xover
- 800Hz
- Throat
- 50mm
- VC
- 75mm
Published graphs
Celestion CDX20-3020 is a 2-inch 8 ohm compression driver rated at 100 W RMS. The source-backed specifications include sensitivity 107 dB, range from 500 Hz, to 18000 Hz, throat 50 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £159.97.
Source-backed specifications
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 107dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 500–18000Hz
- Crossover
- 800Hz
- Throat
- 50mm
Size and mounting
- Weight
- 4.9kg
Other published values
- Power Program
- 200
Everything else Celestion lists
HF · Primary · 1.968503937007874″
- SPL
- 107dB
- Power
- 100W
- Impedance
- 8Ω
- Sensitivity
- 107dB
- Low limit
- 500Hz
- Power Program
- 200
- High limit
- 18000Hz
- Throat
- 50mm
- Manufacturer sensitivity
- 107dB
- Voice coil
- 75mm
- Crossover
- 800Hz
- Weight
- 4.9kg
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £159.97, the lowest price | 2 in stock | Visit shop at Lean Audio | |
Lean Business | £175.00 | 9.4% above the lowest price | Stock not listed | Visit shop at Lean Business |
Best price over time
Tracked since 1 Apr
Recent changes
- 29 OctLean Audio£182.50 → £159.97Down 12% from £182.50
