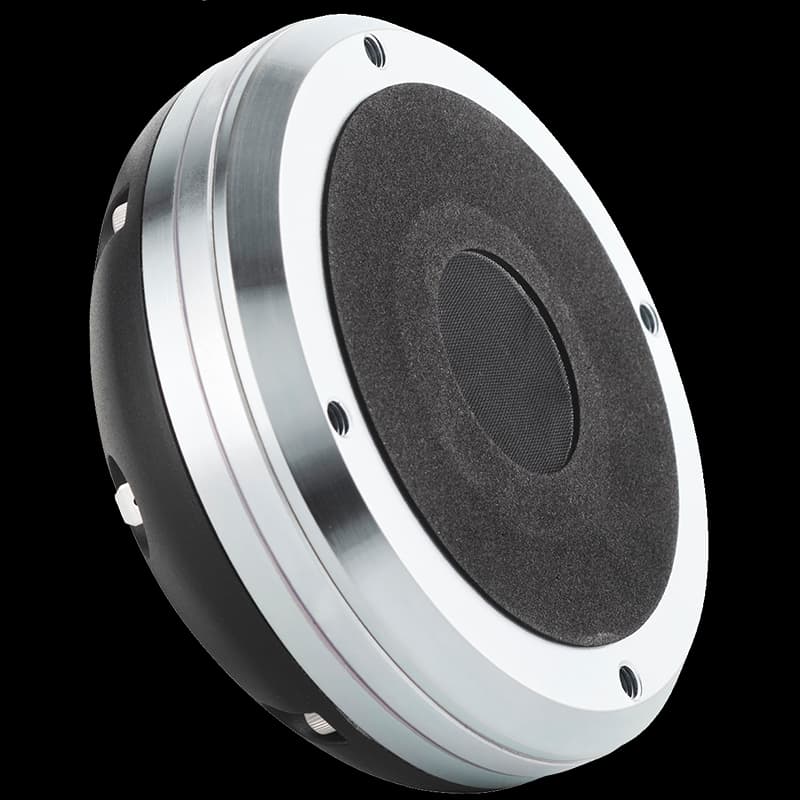

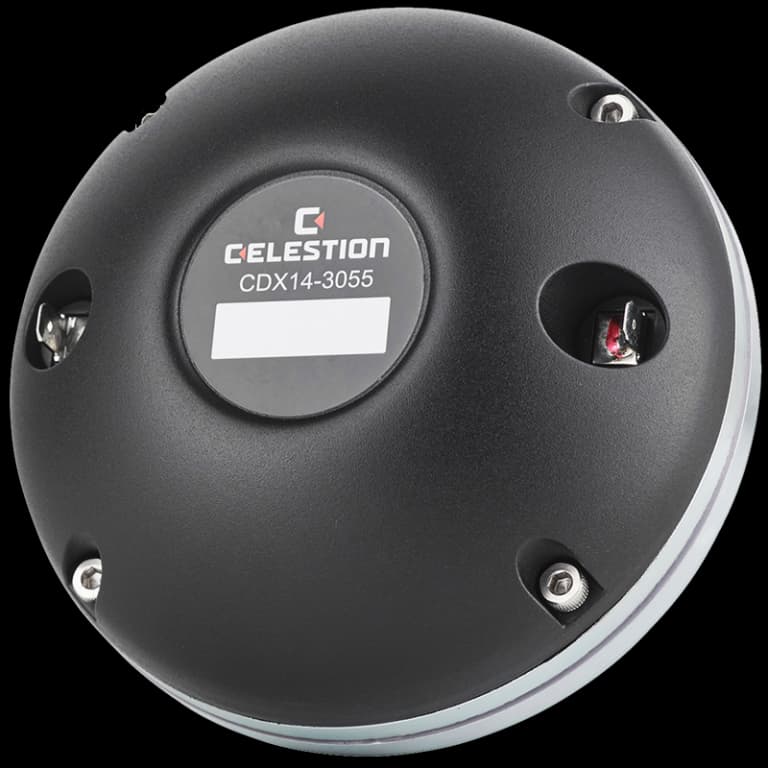

1.5-inch compression driver · CDX14 series · 75 mm voice coil · 120 W
Celestion CDX14-3055 8Ω
8 Ω · 500–20000 Hz
No price for delivery to the UK
- SPL
- 108dB
- Pe
- 120W
- Xover
- 800Hz
- Throat
- 35mm
- VC
- 75mm
Published graphs
Celestion CDX14-3055 is a 1.5-inch 8 ohm compression driver rated at 120 W RMS. The source-backed specifications include sensitivity 108 dB, range from 500 Hz, to 20000 Hz, throat 35 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 108dB
- Power
- 120W
- Impedance
- 8Ω
- Range
- 500–20000Hz
- Crossover
- 800Hz
- Throat
- 35mm
Size and mounting
- Weight
- 1.7kg
Other published values
- Power Program
- 240
Everything else Celestion lists
HF · Primary · 1.377952755905512″
- SPL
- 108dB
- Power
- 120W
- Impedance
- 8Ω
- Sensitivity
- 108dB
- Low limit
- 500Hz
- Power Program
- 240
- High limit
- 20000Hz
- Throat
- 35mm
- Manufacturer sensitivity
- 108dB
- Voice coil
- 75mm
- Crossover
- 800Hz
- Weight
- 1.7kg
