Celestion CDX14-3045 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX14-3045

Media

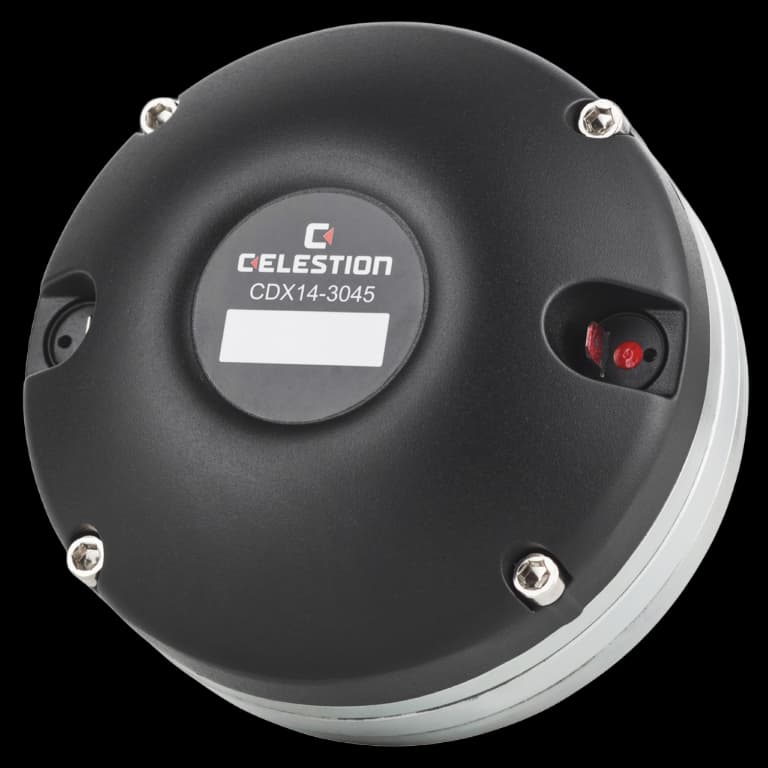

Celestion CDX14-3045 1.377952755905512 inch 8 ohm loudspeaker driver view 1

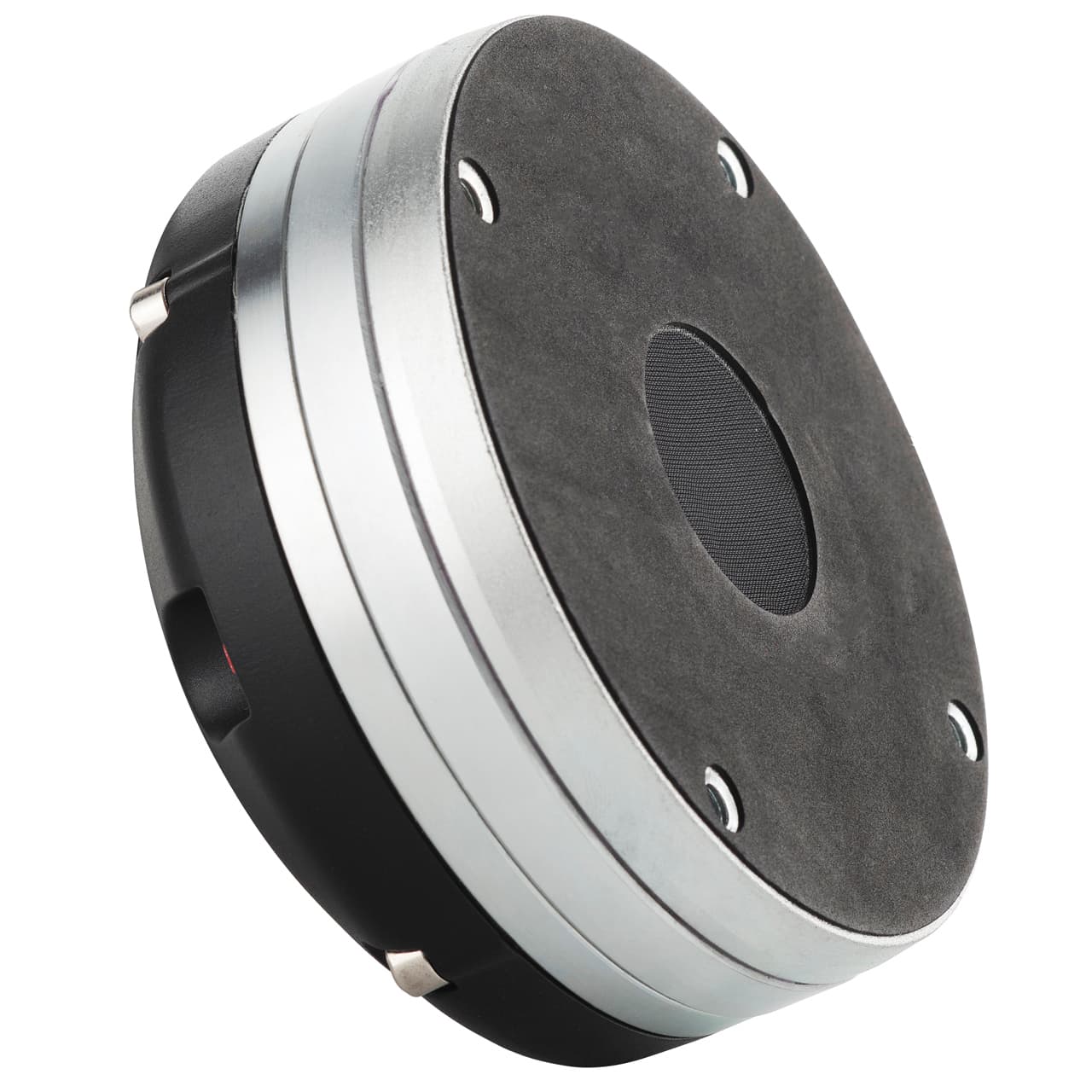

Celestion CDX14-3045 1.377952755905512 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression DriverCDX14 series
Celestion

Celestion CDX14-3045

Celestion CDX14-3045 is a 1.5" 8 ohm compression driver rated at 120W RMS. The source-backed specifications include sensitivity 108dB, range from 500Hz, to 20000Hz, throat 35mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
8Ω
RMS Power
120W
Sensitivity
108.0dB
Datasheet

Technical Specifications

Canonical
SPL108dB
Power120W
Impedance8Ω
F Low500Hz
F High20000Hz
Xover800Hz
Throat35mm
Voice Coil75mm

Pricing & availability

Price definitions

Vendor offers

1 vendor
leanaudio
Updated 22 Sept 2026· 8Ω
Source: inc VAT · 20%
£229.00
inc VAT
Back order

Dimensions & Physical

Weight2.0kg
