1.5-inch compression driver · CDX14 series · 75 mm voice coil · 75 W

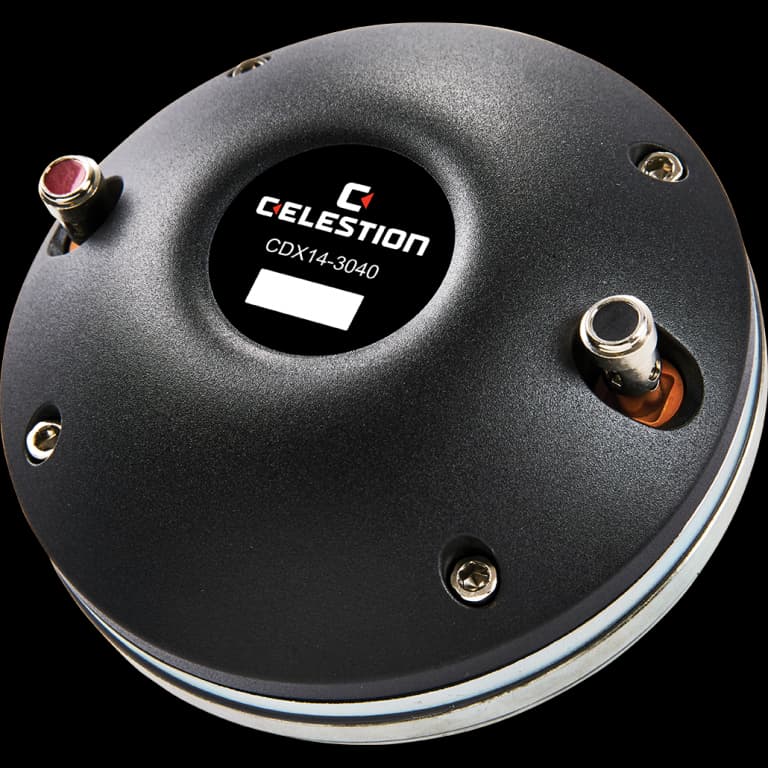

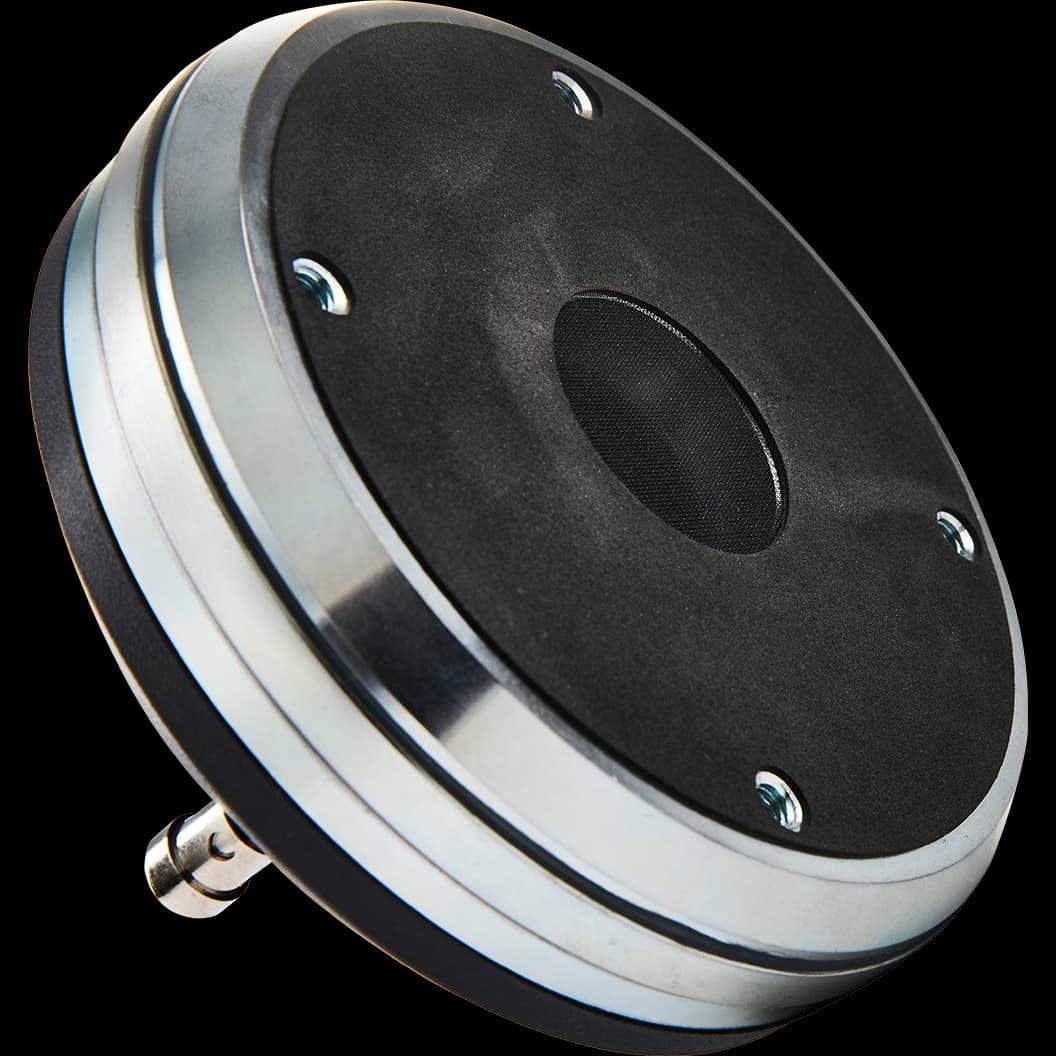

Celestion CDX14-3040 8Ω
8 Ω · 500–18000 Hz
£235.00
SteadyLean Business · All 2 offers
- SPL
- 107dB
- Pe
- 75W
- Xover
- 1000Hz
- Throat
- 35mm
- VC
- 75mm

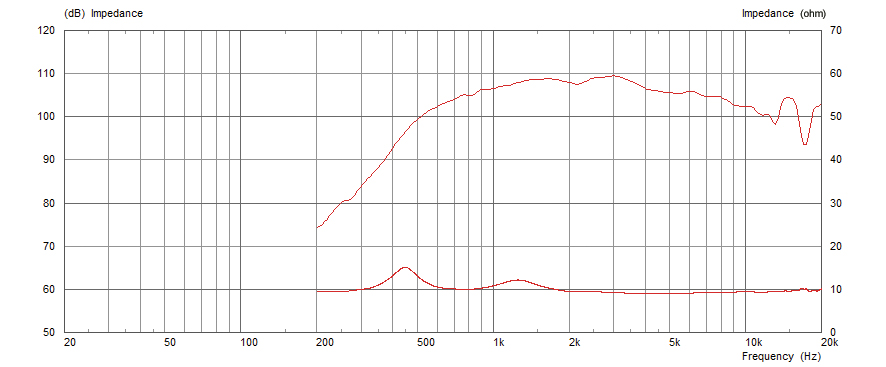

Published graphs
Celestion CDX14-3040 is a 1.5-inch 8 ohm compression driver rated at 75 W RMS. The source-backed specifications include sensitivity 106.5 dB, range from 500 Hz, to 18000 Hz, throat 35 mm. bits tracks UK, EU and US shop prices, price movement, and datasheet links, with a current best price of £235.00.
Source-backed specifications
Motor and cone
- Voice coil
- 75mm
Power and response
- Sensitivity
- 106.5dB
- Power
- 75W
- Impedance
- 8Ω
- Range
- 500–18000Hz
- Crossover
- 1000Hz
- Throat
- 35mm
Size and mounting
- Weight
- 1.4kg
Other published values
- Power Program
- 150
Everything else Celestion lists
HF · Primary · 1.377952755905512″
- SPL
- 106.5dB
- Power
- 75W
- Impedance
- 8Ω
- Sensitivity
- 106.5dB
- Low limit
- 500Hz
- Power Program
- 150
- High limit
- 18000Hz
- Throat
- 35mm
- Manufacturer sensitivity
- 106.5dB
- Voice coil
- 75mm
- Crossover
- 1000Hz
- Weight
- 1.4kg
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £235.00, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £235.00 | Out of stock | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
