Celestion CDX14-2420 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX14-2420

Media

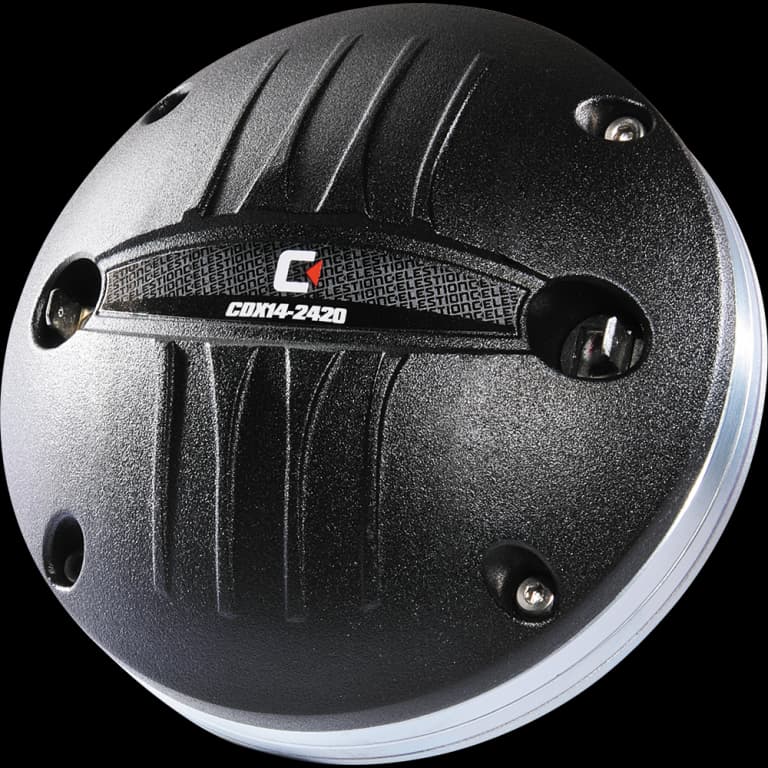

Celestion CDX14-2420 1.417322834645669 inch 8 ohm loudspeaker driver view 1

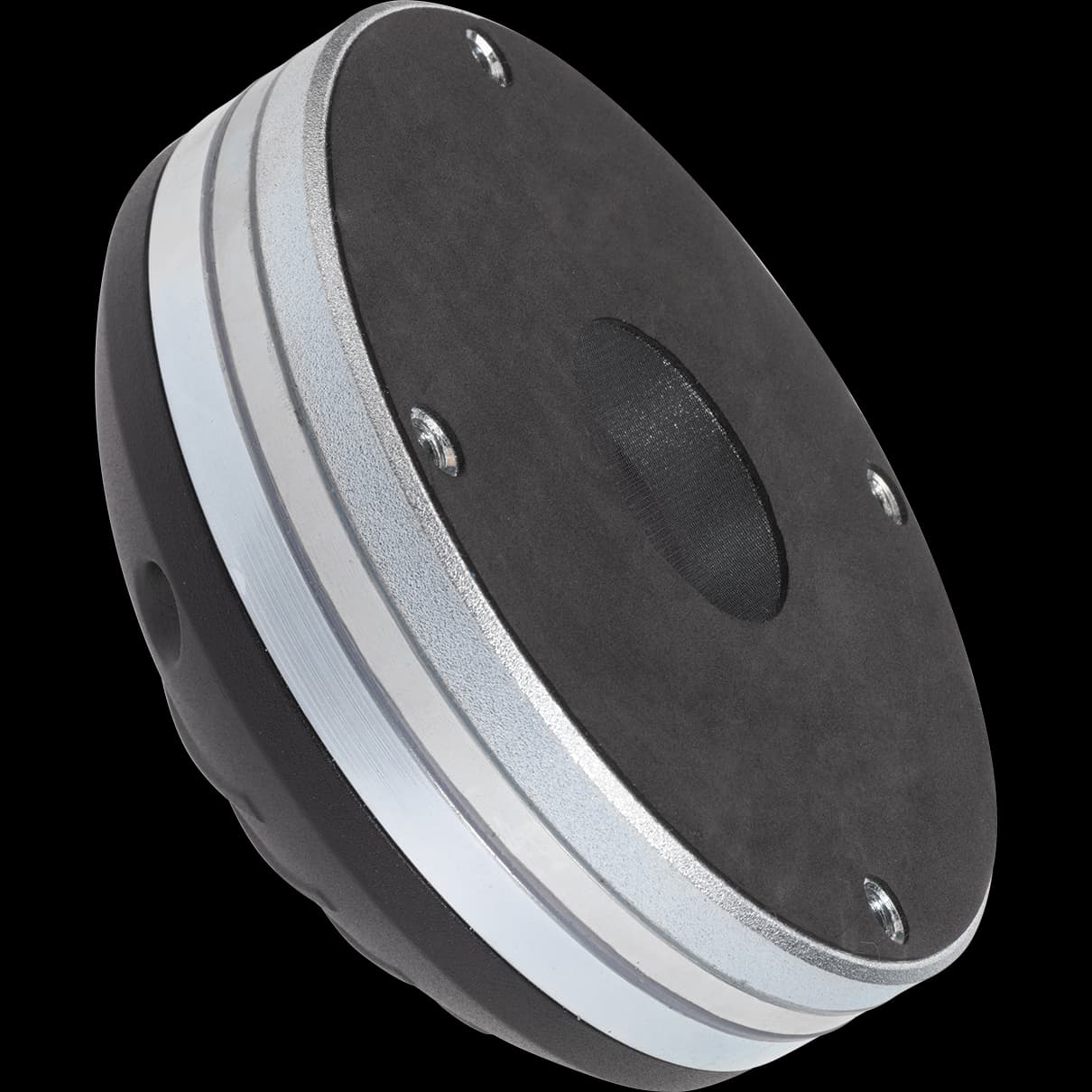

Celestion CDX14-2420 1.417322834645669 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression DriverCDX14 series
Celestion

Celestion CDX14-2420

Celestion CDX14-2420 is a 1.5" 8 ohm compression driver rated at 70W RMS. The source-backed specifications include sensitivity 106.5dB, range from 800Hz, to 20000Hz, throat 36mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
8Ω
RMS Power
70W
Sensitivity
106.5dB
Datasheet

Technical Specifications

Canonical
SPL107dB
Power70W
Impedance8Ω
F Low800Hz
F High20000Hz
Xover1200Hz
Throat36mm
Voice Coil60mm

Pricing & availability

Price definitions

Vendor offers

2 vendors
leanaudio
Updated 22 Sept 2026· 8Ω
Source: inc VAT · 20%
£225.00
inc VAT
Out of stock
leanbusinessNot currently listed
Last seen 17 May 2026· 8Ω
Source: inc VAT · 20%
This vendor's catalogue no longer lists this product, so the price is not counted. Check the vendor for current availability.
£235.00
inc VAT

Dimensions & Physical

Weight1.5kg
