Celestion CDX14-2410 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX14-2410

Media

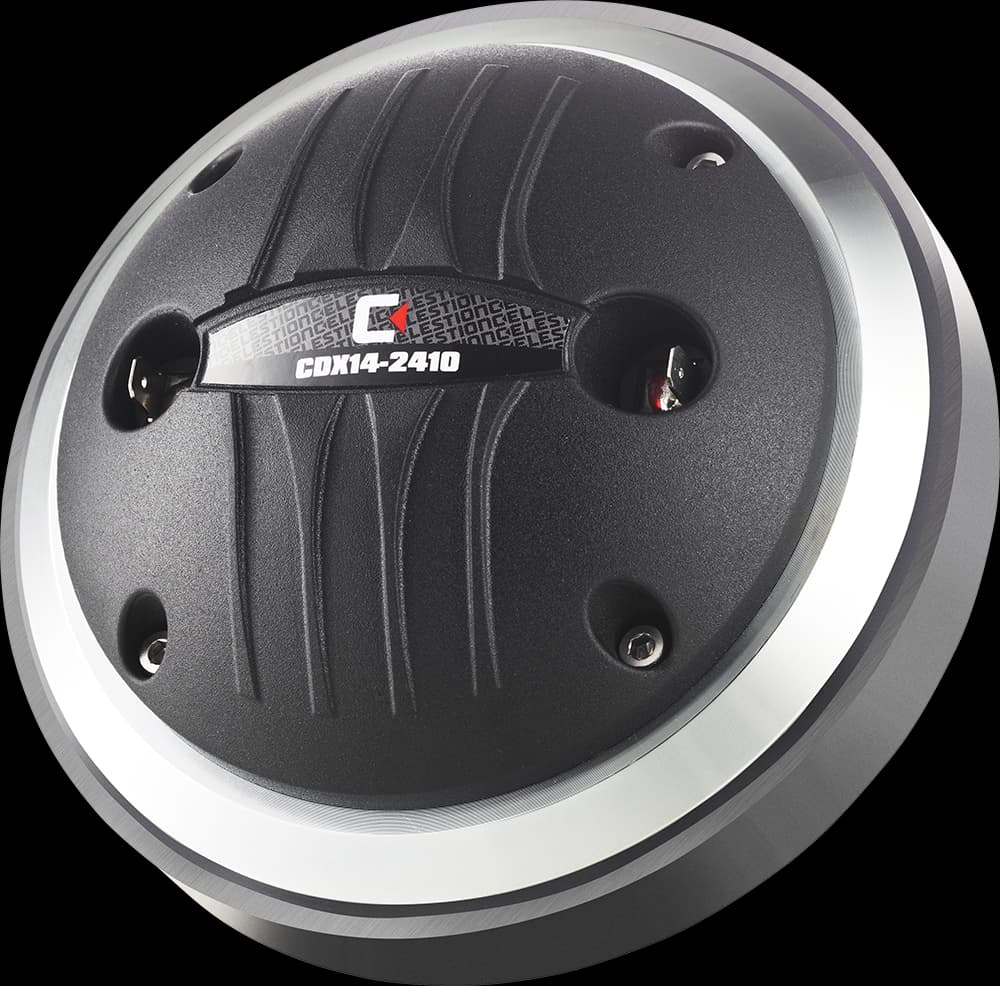

Celestion CDX14-2410 1.377952755905512 inch 8 ohm loudspeaker driver view 1

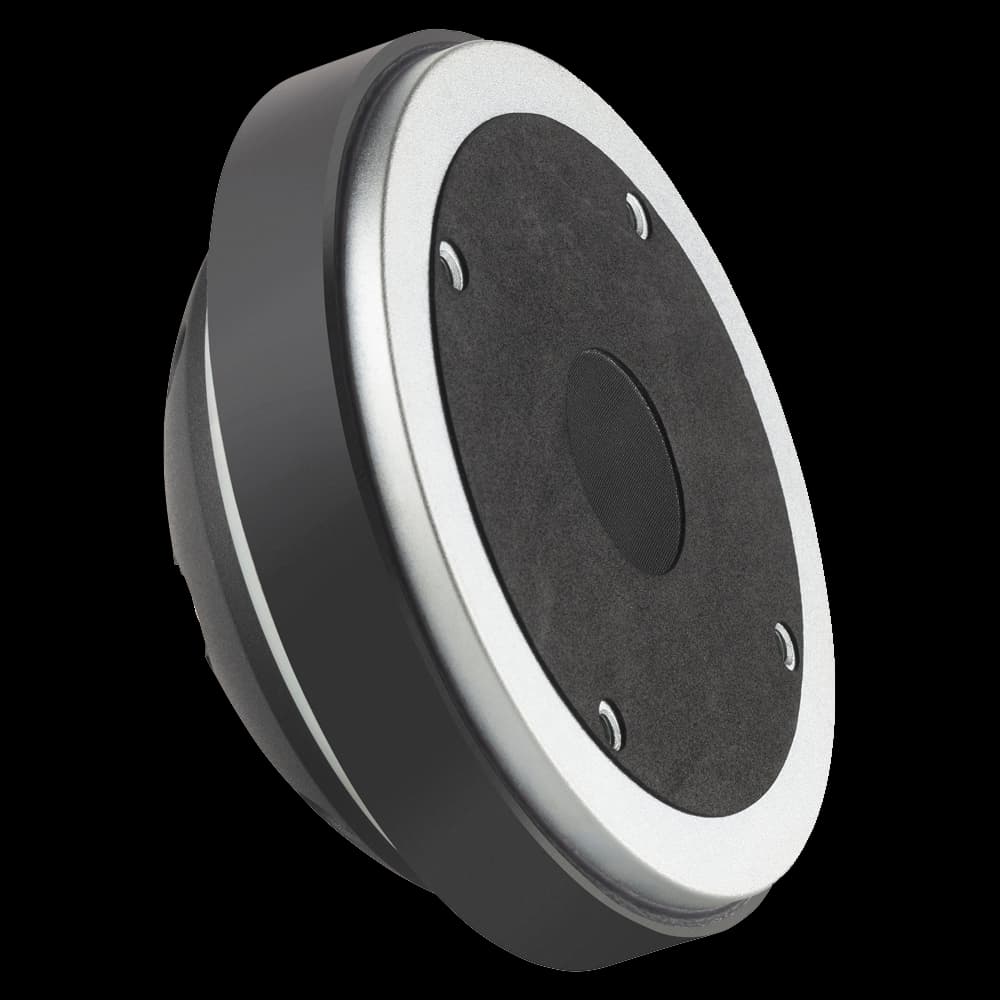

Celestion CDX14-2410 1.377952755905512 inch 8 ohm loudspeaker driver view 2

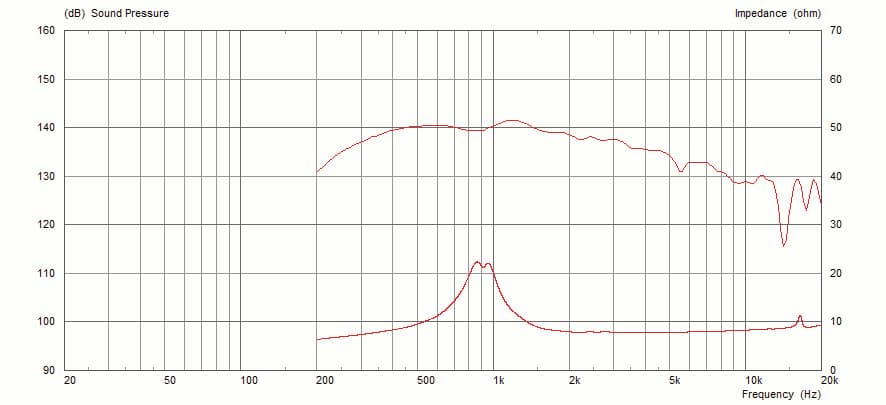

Celestion CDX14-2410 1.377952755905512 inch 8 ohm loudspeaker driver view 3
Auto-advancing

Overview

Compression DriverCDX14 series
Celestion

Celestion CDX14-2410

Celestion CDX14-2410 is a 1.5" 8 ohm compression driver rated at 50W RMS. The source-backed specifications include sensitivity 106dB, range from 800Hz, to 20000Hz, throat 35mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1.5"
Impedance
8Ω
RMS Power
50W
Sensitivity
106.0dB
Datasheet

Technical Specifications

Canonical
SPL106dB
Power50W
Impedance8Ω
F Low800Hz
F High20000Hz
Xover1200Hz
Throat35mm
Voice Coil60mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight3.3kg
