Celestion CDX1-1770 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX1-1770

Media

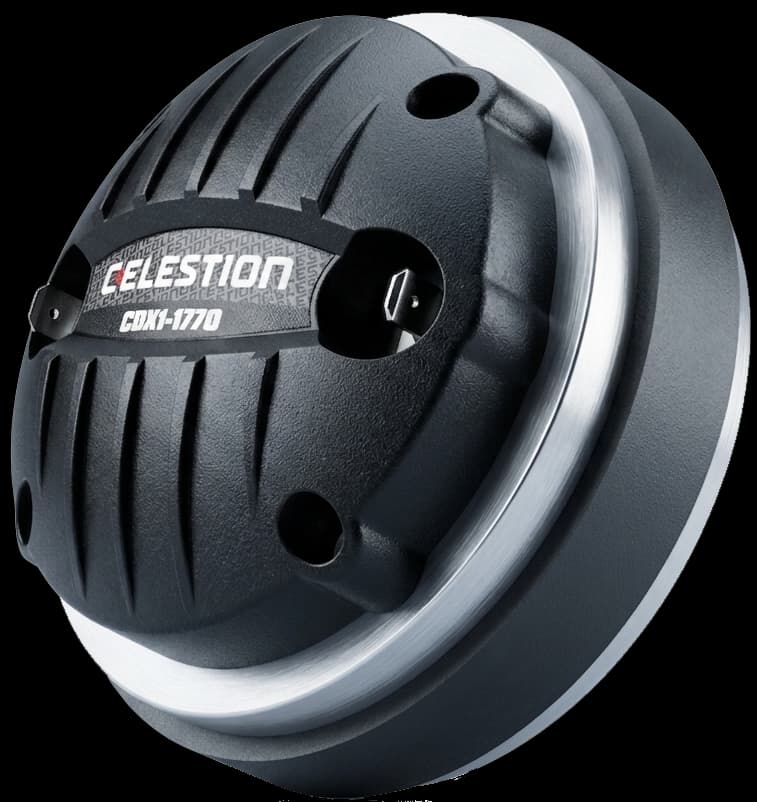

Celestion CDX1-1770 0.984251968503937 inch 8 ohm loudspeaker driver view 1

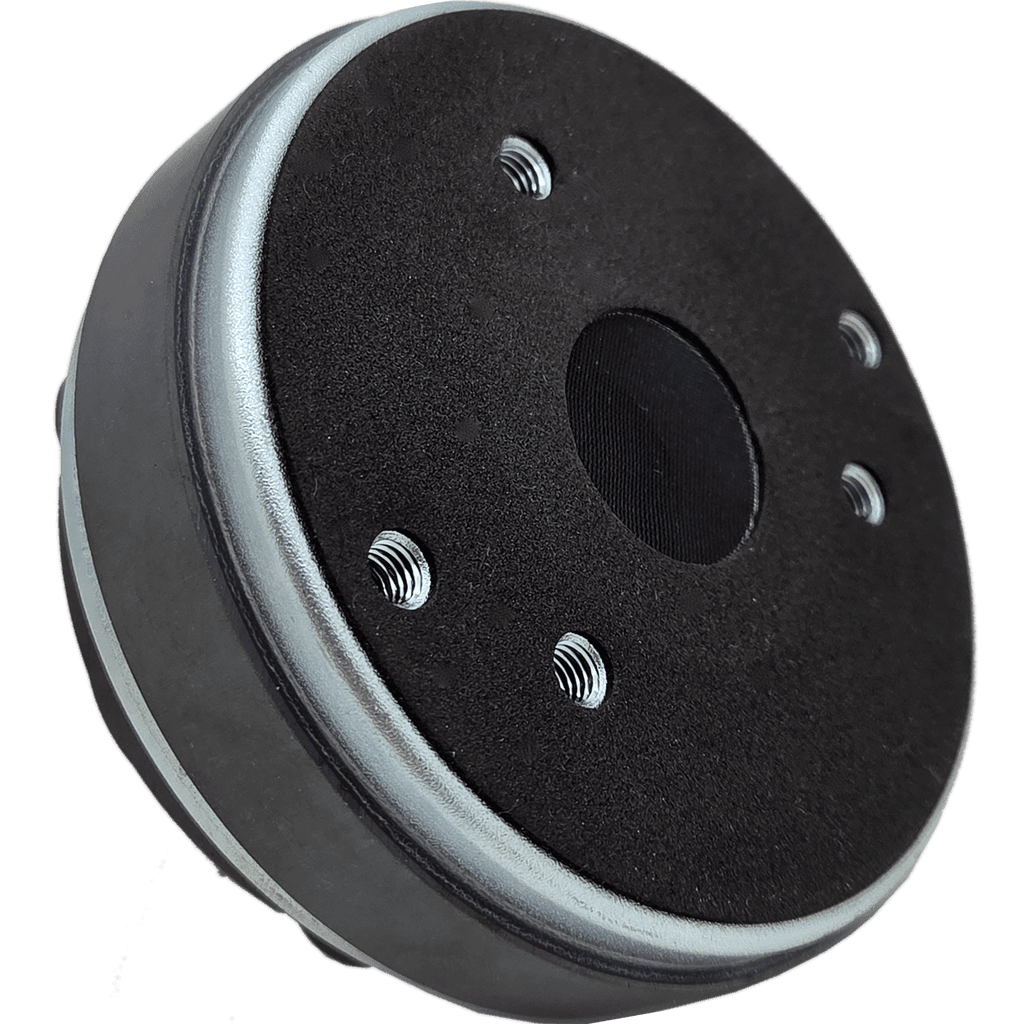

Celestion CDX1-1770 0.984251968503937 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression DriverCDX1 series
Celestion

Celestion CDX1-1770

Celestion CDX1-1770 is a 1" 8 ohm compression driver rated at 40W RMS. The source-backed specifications include sensitivity 108dB, range from 1400Hz, to 20000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
40W
Sensitivity
108.0dB
Datasheet

Technical Specifications

Canonical
SPL108dB
Power40W
Impedance8Ω
F Low1400Hz
F High20000Hz
Xover2200Hz
Throat25mm
Voice Coil44mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight1.4kg
