Celestion CDX1-1747 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX1-1747

Media

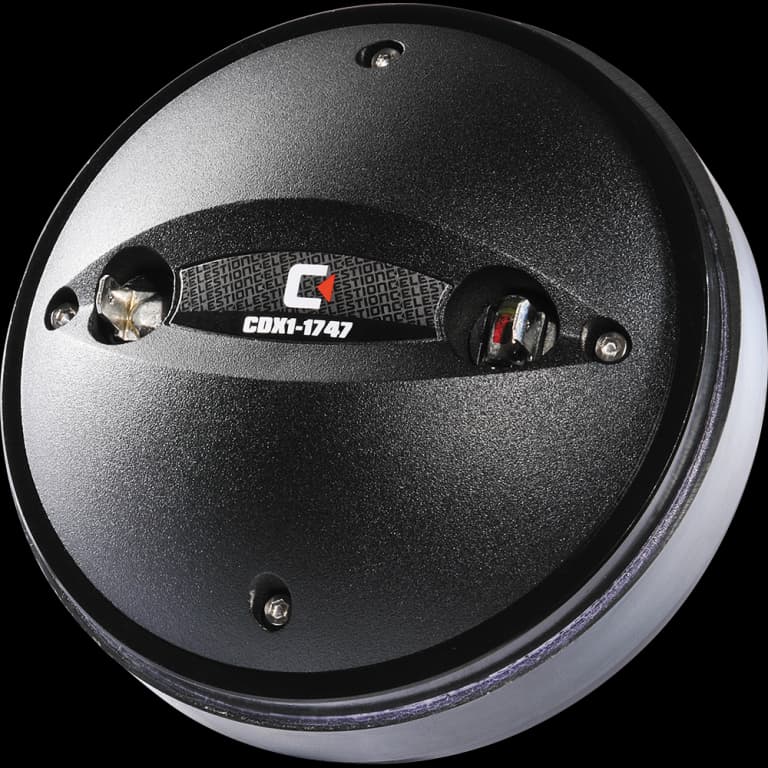

Celestion CDX1-1747 0.984251968503937 inch 8 ohm loudspeaker driver view 1

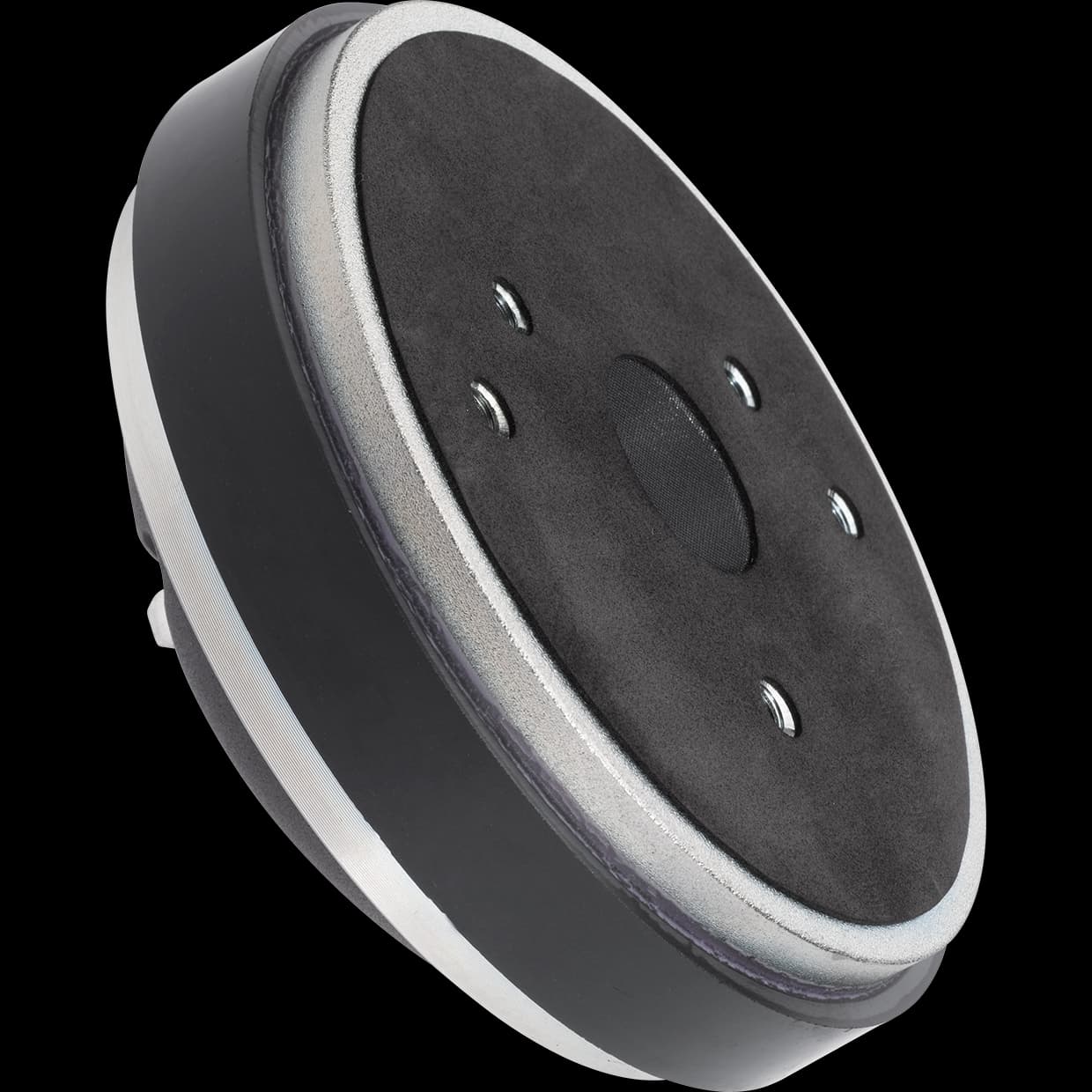

Celestion CDX1-1747 0.984251968503937 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression DriverCDX1 series
Celestion

Celestion CDX1-1747

Celestion CDX1-1747 is a 1" 8 ohm compression driver rated at 60W RMS. The source-backed specifications include sensitivity 110dB, range from 1000Hz, to 20000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
60W
Sensitivity
110.0dB
Datasheet

Technical Specifications

Canonical
SPL110dB
Power60W
Impedance8Ω
F Low1000Hz
F High20000Hz
Xover1600Hz
Throat25mm
Voice Coil44mm

Pricing & availability

Price definitions

Vendor offers

2 vendors
leanbusinessNot currently listed
Last seen 17 May 2026· 8Ω
Source: inc VAT · 20%
This vendor's catalogue no longer lists this product, so the price is not counted. Check the vendor for current availability.
£85.00
inc VAT
leanaudio
Updated 22 Sept 2026· 8Ω
Source: inc VAT · 20%
£85.00
inc VAT
Back order

Dimensions & Physical

Weight2.3kg
