Celestion CDX1-1746 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX1-1746

Media

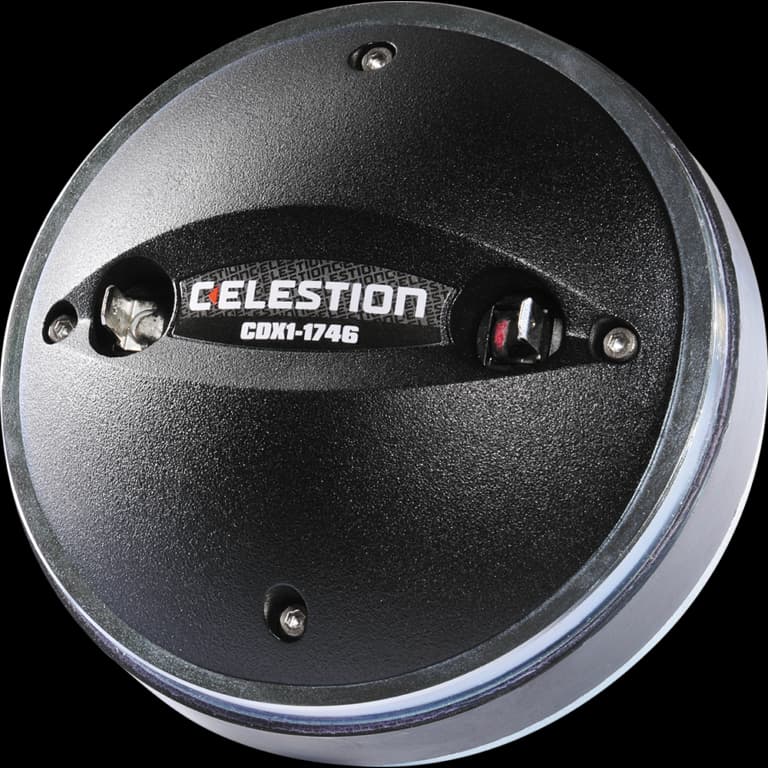

Celestion CDX1-1746 0.984251968503937 inch 8 ohm loudspeaker driver view 1

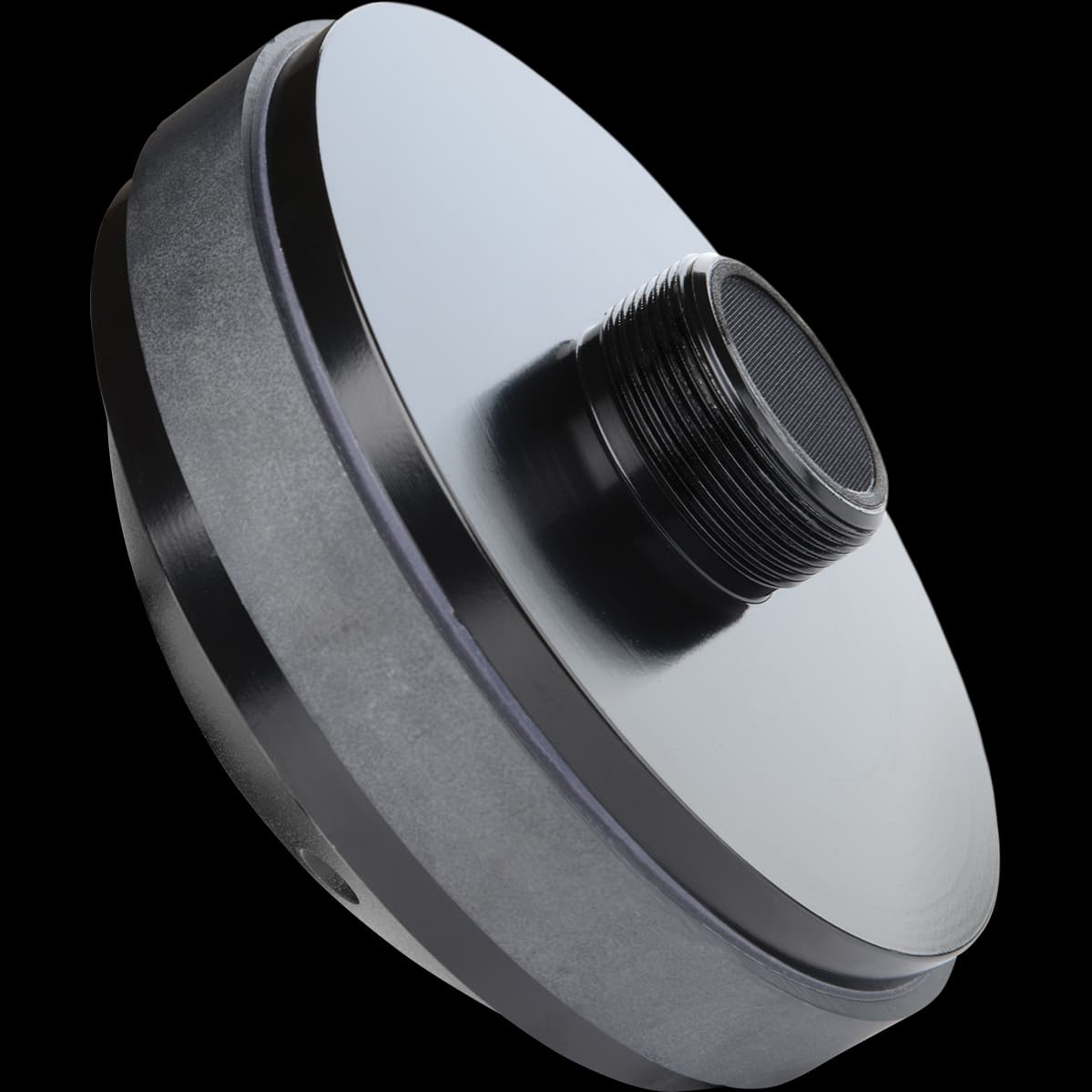

Celestion CDX1-1746 0.984251968503937 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression DriverCDX1 series
Celestion

Celestion CDX1-1746

Celestion CDX1-1746 is a 1" 8 ohm compression driver rated at 40W RMS. The source-backed specifications include sensitivity 110dB, range from 1200Hz, to 20000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
40W
Sensitivity
110.0dB
Datasheet

Technical Specifications

Canonical
SPL110dB
Power40W
Impedance8Ω
F Low1200Hz
F High20000Hz
Xover2200Hz
Throat25mm
Voice Coil44mm

Pricing & availability

Price definitions

Vendor offers

3 vendors
leanbusinessNot currently listed
Last seen 17 May 2026
Source: inc VAT · 20%
This vendor's catalogue no longer lists this product, so the price is not counted. Check the vendor for current availability.
£65.00
inc VAT
partsexpress
Updated 22 Sept 2026
Source: ex VAT
£81.37
inc VAT
Back order
leanaudio
Updated 22 Sept 2026· 8Ω
Source: inc VAT · 20%
£82.50
inc VAT
Back order

Dimensions & Physical

Weight2.3kg
