Celestion CDX1-1740 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX1-1740

Media

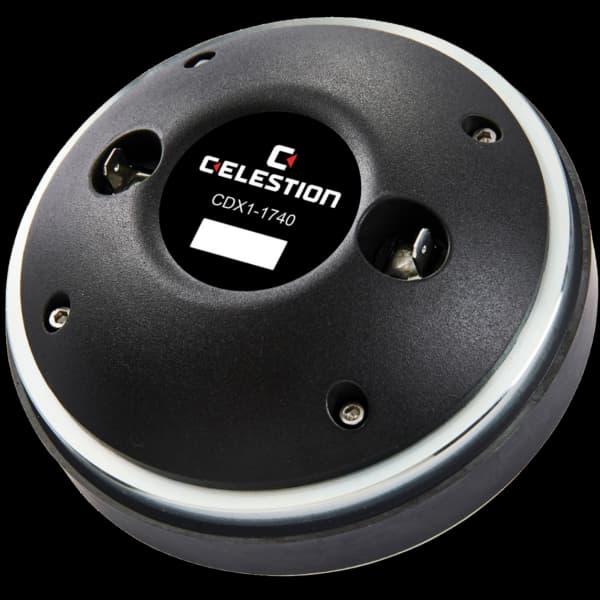

Celestion CDX1-1740 0.984251968503937 inch 8 ohm loudspeaker driver view 1

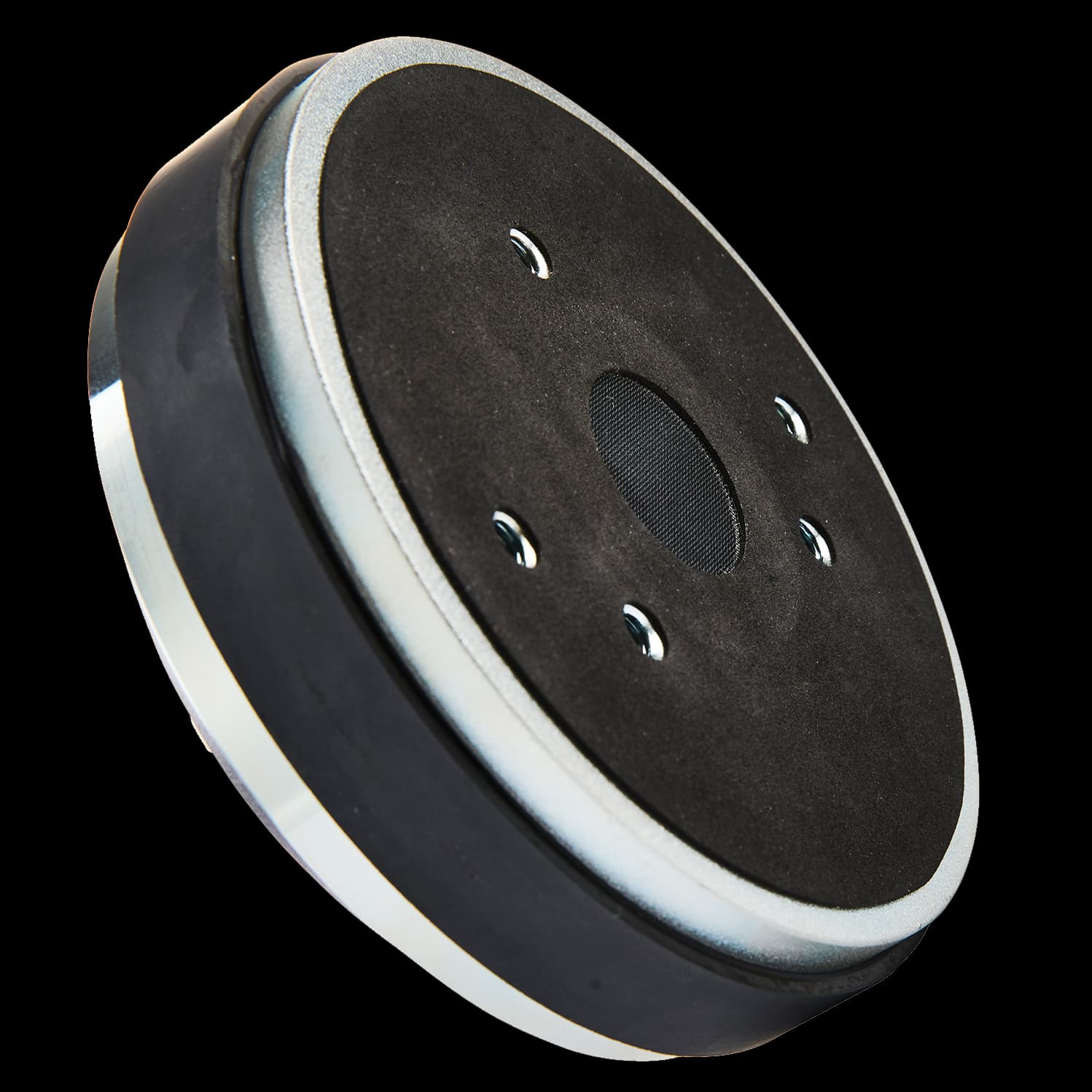

Celestion CDX1-1740 0.984251968503937 inch 8 ohm loudspeaker driver view 2

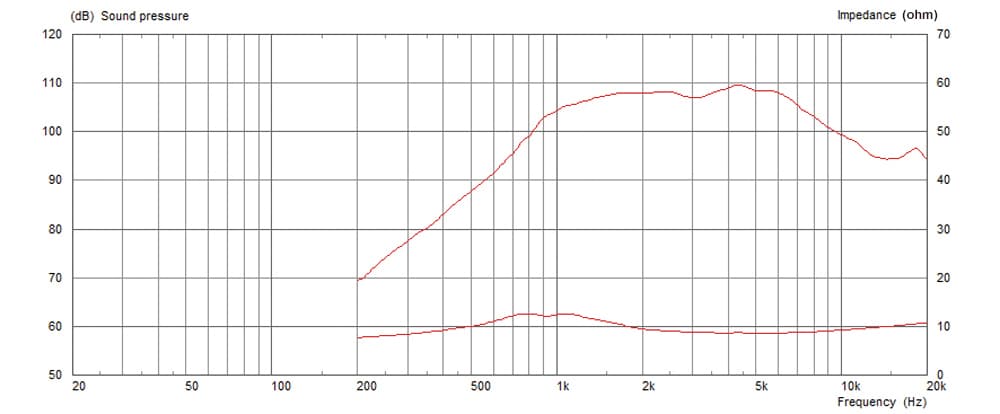

Celestion CDX1-1740 0.984251968503937 inch 8 ohm loudspeaker driver view 3
Auto-advancing

Overview

Compression DriverCDX1 series
Celestion

Celestion CDX1-1740

Celestion CDX1-1740 is a 1" 8 ohm compression driver rated at 50W RMS. The source-backed specifications include sensitivity 107dB, range from 800Hz, to 20000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
50W
Sensitivity
107.0dB
Datasheet

Technical Specifications

Canonical
SPL107dB
Power50W
Impedance8Ω
F Low800Hz
F High20000Hz
Xover1500Hz
Throat25mm
Voice Coil44mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight2.3kg
