Celestion CDX1-1440 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX1-1440

Media

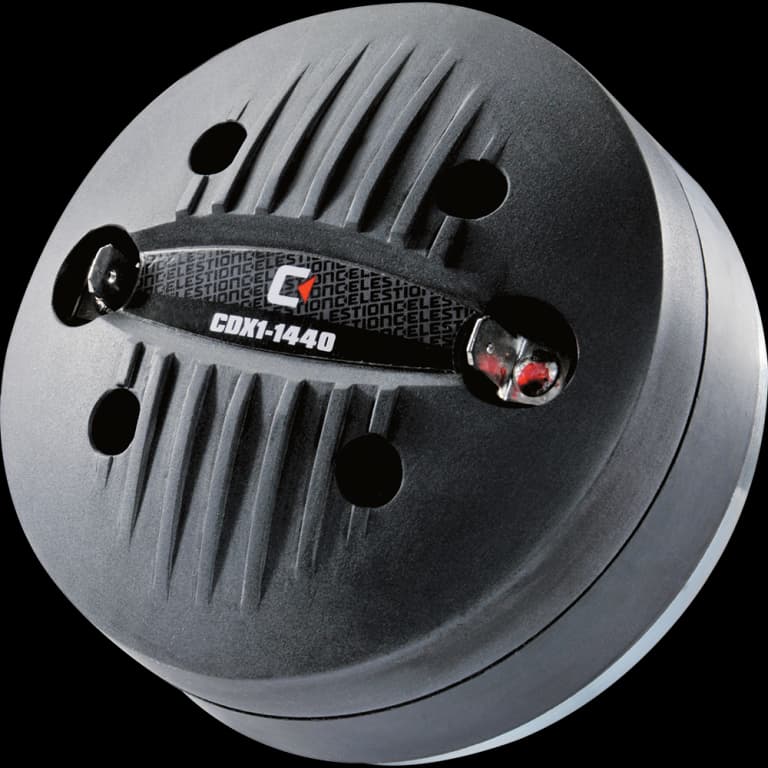

Celestion CDX1-1440 0.984251968503937 inch 8 ohm loudspeaker driver view 1

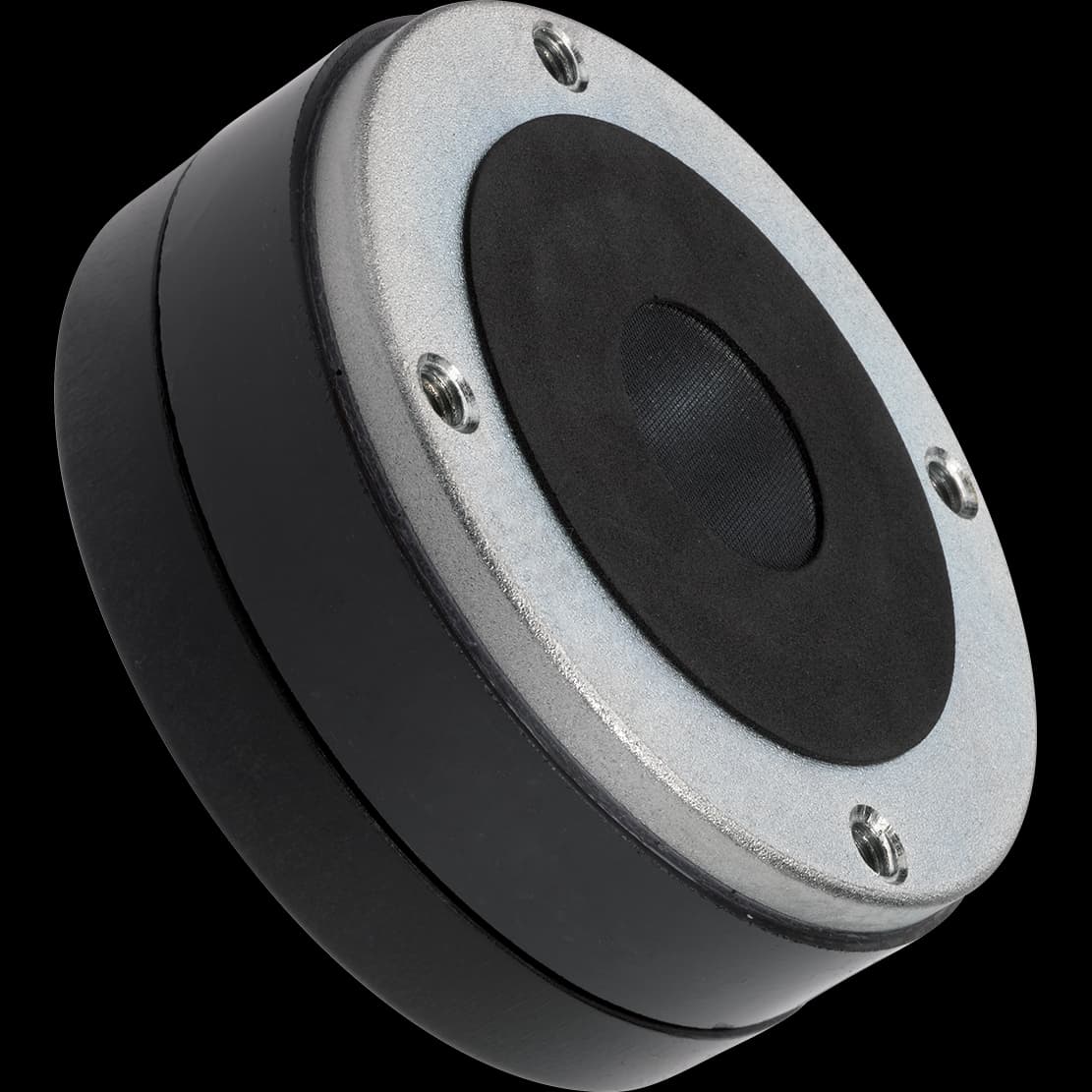

Celestion CDX1-1440 0.984251968503937 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression DriverCDX1 series
Celestion

Celestion CDX1-1440

Celestion CDX1-1440 is a 1" 8 ohm compression driver rated at 25W RMS. The source-backed specifications include sensitivity 106dB, range from 1500Hz, to 20000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
25W
Sensitivity
106.0dB
Datasheet

Technical Specifications

Canonical
SPL106dB
Power25W
Impedance8Ω
F Low1500Hz
F High20000Hz
Xover2200Hz
Throat25mm
Voice Coil35mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Dimensions & Physical

Weight1.0kg
