Celestion CDX1-1415 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX1-1415

Media

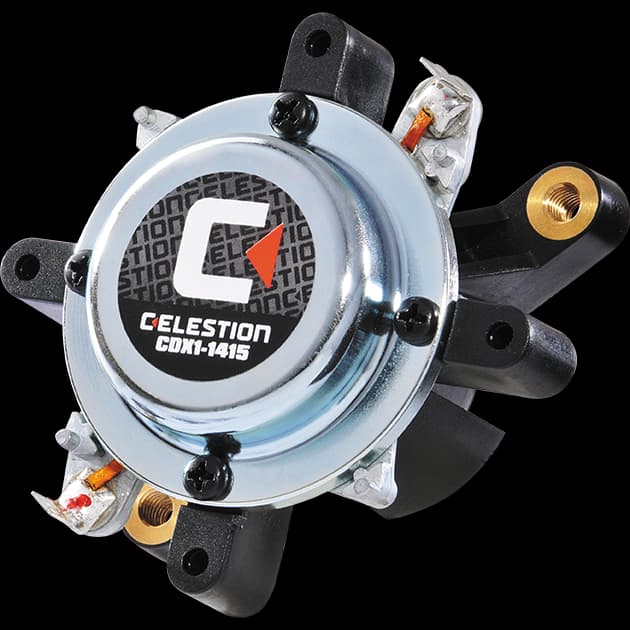

Celestion CDX1-1415 0.984251968503937 inch 8 ohm loudspeaker driver view 1

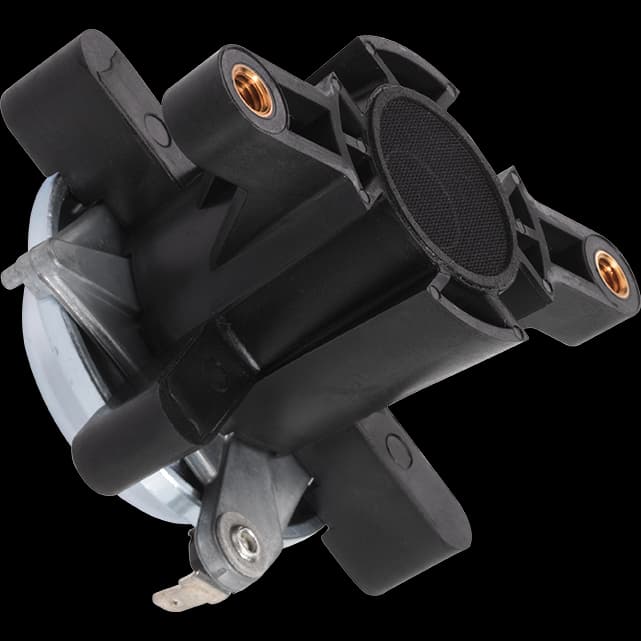

Celestion CDX1-1415 0.984251968503937 inch 8 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression DriverCDX1 series
Celestion

Celestion CDX1-1415

Celestion CDX1-1415 is a 1" 8 ohm compression driver rated at 20W RMS. The source-backed specifications include sensitivity 104dB, range from 2000Hz, to 20000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
20W
Sensitivity
104.0dB
Datasheet

Technical Specifications

Canonical
SPL104dB
Power20W
Impedance8Ω
F Low2000Hz
F High20000Hz
Xover2500Hz
Throat25mm
Voice Coil35mm

Pricing & availability

Price definitions

Vendor offers

1 vendor
leanaudio
Updated 22 Sept 2026· 8Ω
Source: inc VAT · 20%
£65.00
inc VAT
Out of stock

Dimensions & Physical

Weight0.3kg
