Celestion CDX1-1070WG 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDX1-1070WG

Media

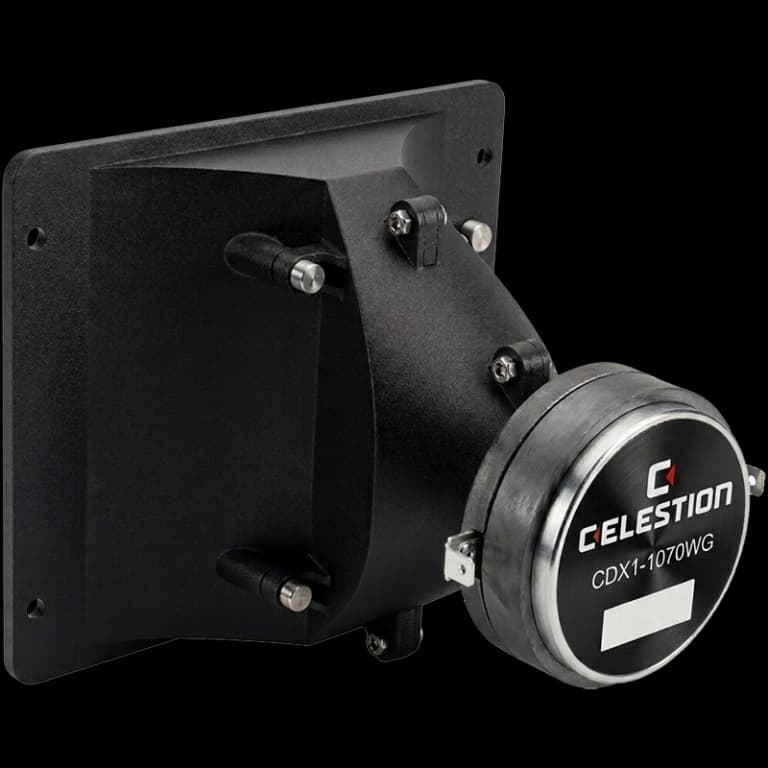

Celestion CDX1-1070WG 0 inch 16 ohm loudspeaker driver view 1

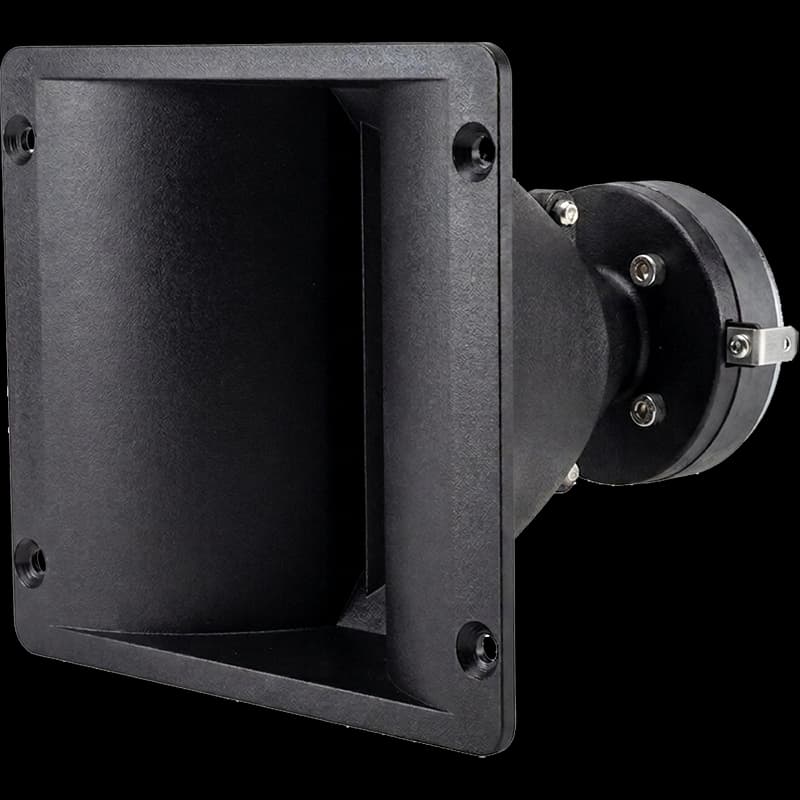

Celestion CDX1-1070WG 0 inch 16 ohm loudspeaker driver view 2

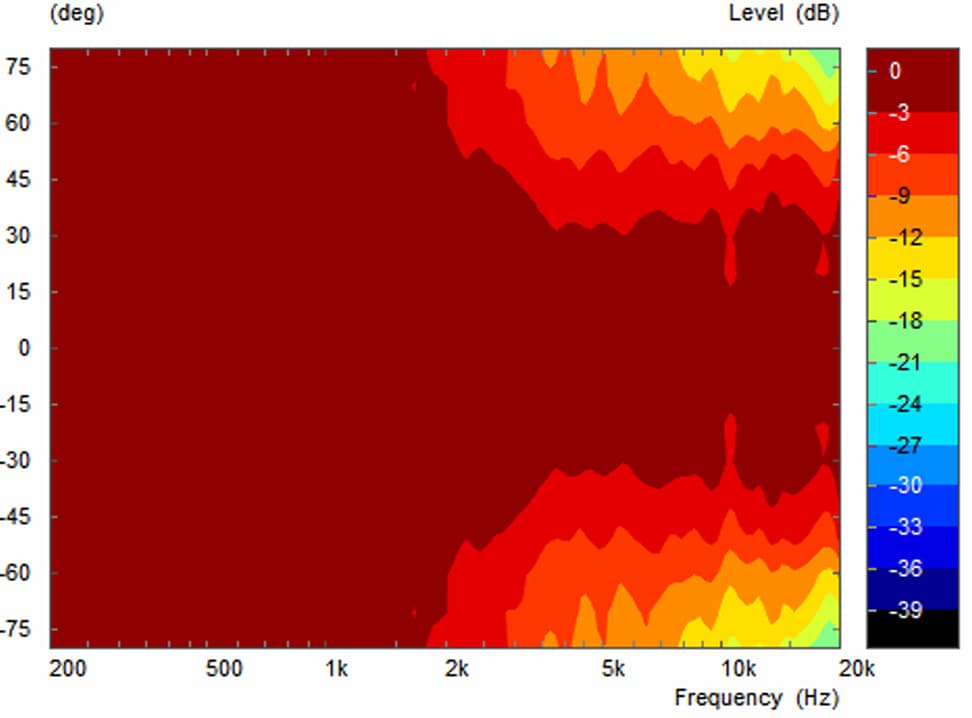

Celestion CDX1-1070WG 0 inch 16 ohm loudspeaker driver view 3

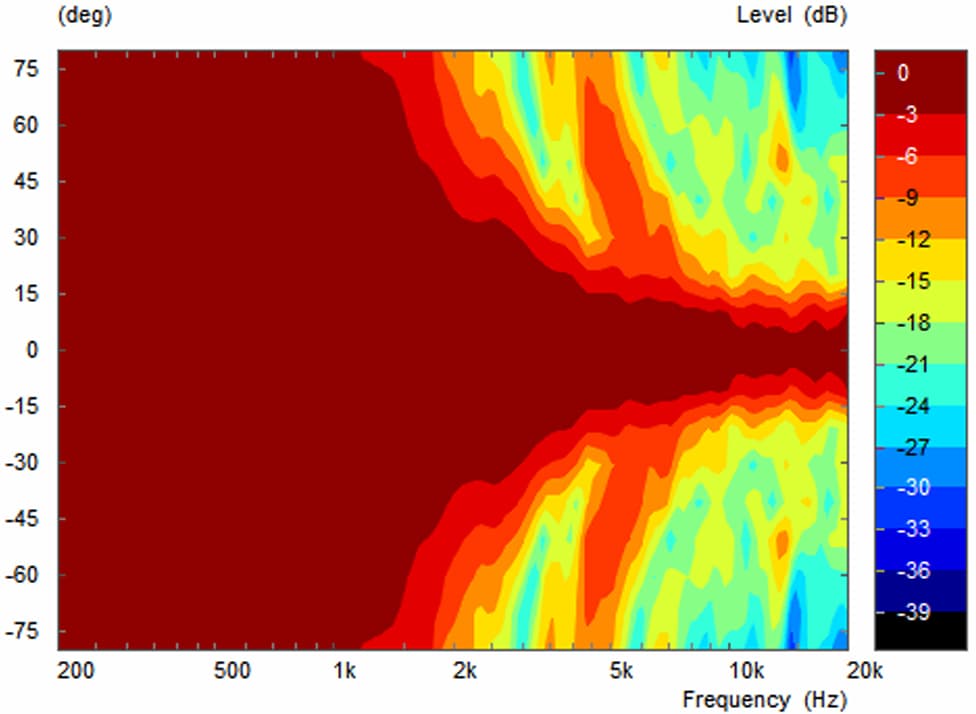

Celestion CDX1-1070WG 0 inch 16 ohm loudspeaker driver view 4
Auto-advancing

Overview

Compression DriverCDX1 series
Celestion

Celestion CDX1-1070WG

Celestion CDX1-1070WG is a - 16 ohm compression driver rated at 12W RMS. The source-backed specifications include sensitivity 105dB, range from 2500Hz, to 18000Hz. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
-
Impedance
16Ω
RMS Power
12W
Sensitivity
105.0dB
Datasheet

Technical Specifications

Canonical
SPL105dB
Power12W
Impedance16Ω
F Low2500Hz
F High18000Hz
Xover3000Hz
Voice Coil25mm

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.
