0.75-inch compression driver · CDX07 series · 25 mm voice coil · 15 W

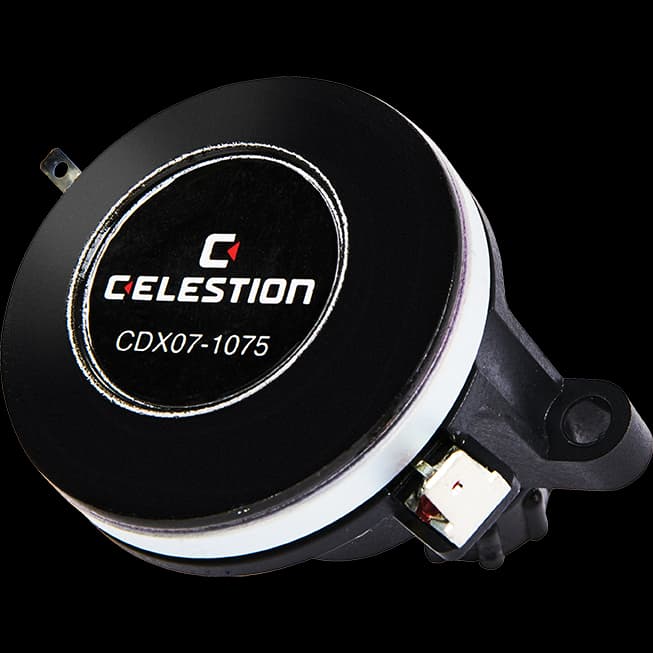

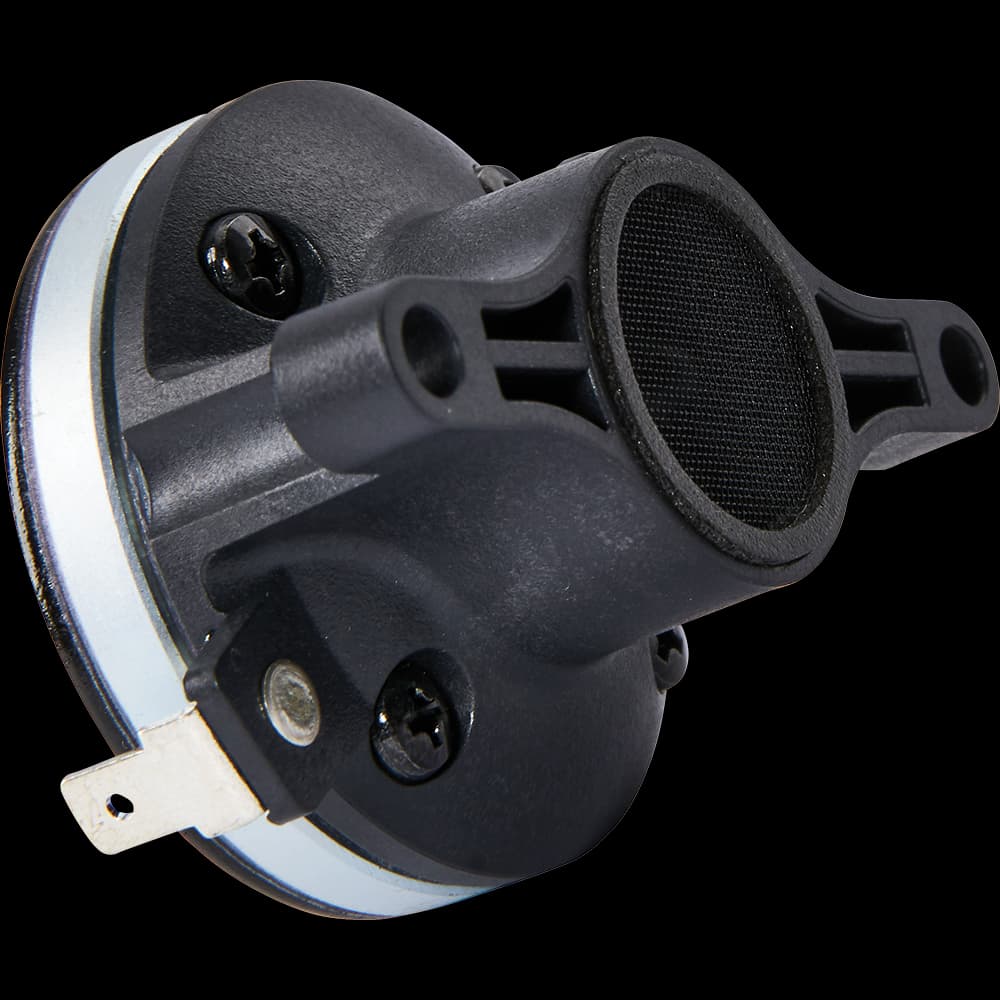

Celestion CDX07-1075 8Ω
8 Ω · 1500–18000 Hz
No current price
- SPL
- 109dB
- Pe
- 15W
- Xover
- 2500Hz
- Throat
- 19mm
- VC
- 25mm
Published graphs
Celestion CDX07-1075 is a 0.75-inch 8 ohm compression driver rated at 15 W RMS. The source-backed specifications include sensitivity 109 dB, range from 1500 Hz, to 18000 Hz, throat 19 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 25mm
Power and response
- Sensitivity
- 109dB
- Power
- 15W
- Impedance
- 8Ω
- Range
- 1500–18000Hz
- Crossover
- 2500Hz
- Throat
- 19mm
Size and mounting
- Weight
- 0.16kg
Other published values
- Power Program
- 30
Everything else Celestion lists
HF · Primary · 0.7480314960629921″
- SPL
- 109dB
- Power
- 15W
- Impedance
- 8Ω
- Sensitivity
- 109dB
- Low limit
- 1500Hz
- Power Program
- 30
- High limit
- 18000Hz
- Throat
- 19mm
- Manufacturer sensitivity
- 109dB
- Voice coil
- 25mm
- Crossover
- 2500Hz
- Weight
- 0.16kg
