0.5-inch compression driver · CDX05 series · 25 mm voice coil · 10 W

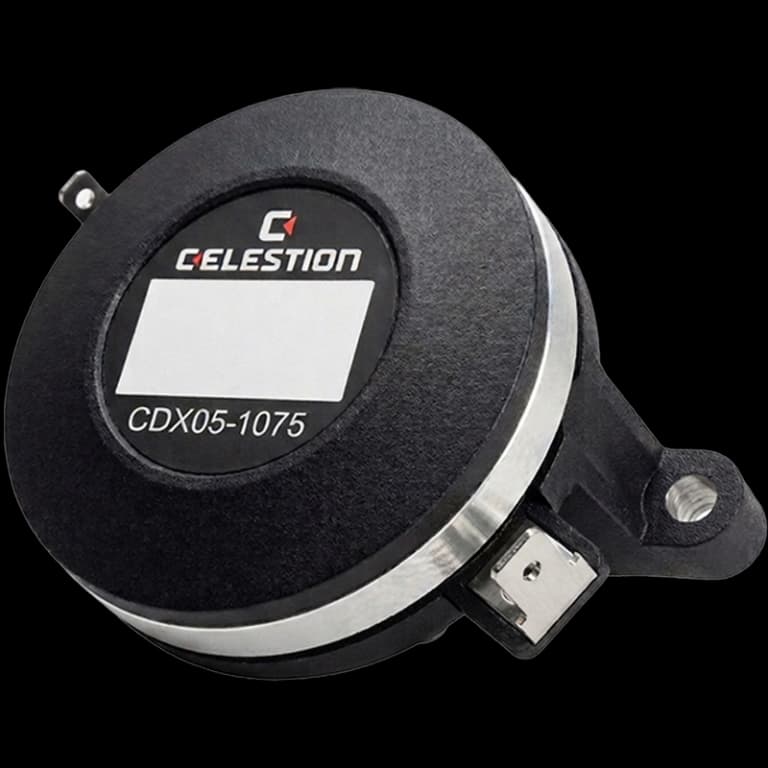

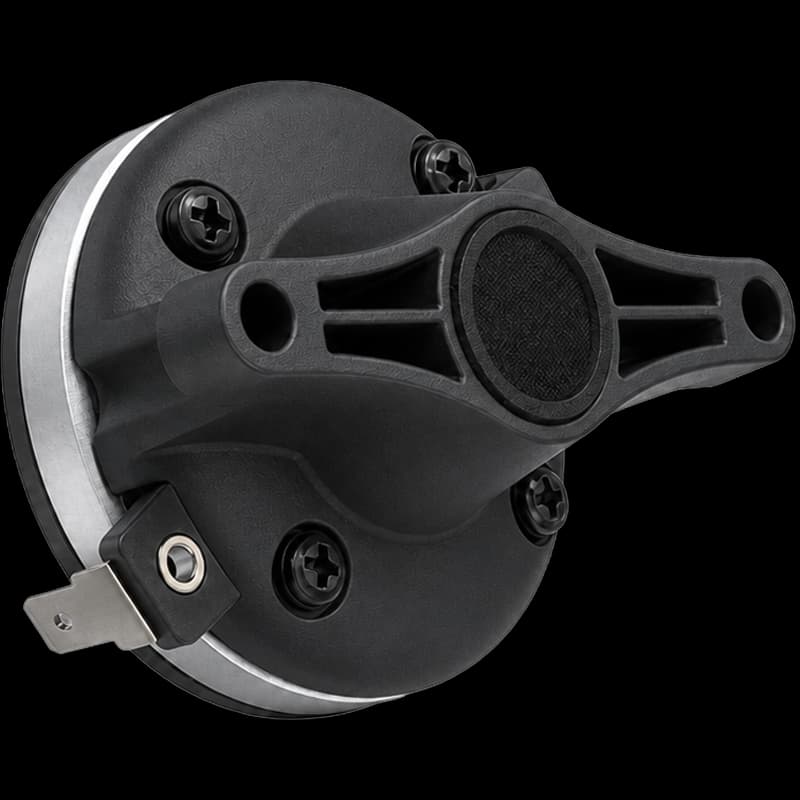

Celestion CDX05-1075 16Ω
16 Ω · 2000–18000 Hz
No current price
- SPL
- 109dB
- Pe
- 10W
- Xover
- 2500Hz
- Throat
- 13mm
- VC
- 25mm
Published graphs
Celestion CDX05-1075 is a 0.5-inch 16 ohm compression driver rated at 10 W RMS. The source-backed specifications include sensitivity 109 dB, range from 2000 Hz, to 18000 Hz, throat 13 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Motor and cone
- Voice coil
- 25mm
Power and response
- Sensitivity
- 109dB
- Power
- 10W
- Impedance
- 16Ω
- Range
- 2000–18000Hz
- Crossover
- 2500Hz
- Throat
- 13mm
Size and mounting
- Weight
- 0.16kg
Other published values
- Power Program
- 20
Everything else Celestion lists
HF · Primary · 0.5118110236220472″
- SPL
- 109dB
- Power
- 10W
- Impedance
- 16Ω
- Sensitivity
- 109dB
- Low limit
- 2000Hz
- Power Program
- 20
- High limit
- 18000Hz
- Throat
- 13mm
- Manufacturer sensitivity
- 109dB
- Voice coil
- 25mm
- Crossover
- 2500Hz
- Weight
- 0.16kg
No current price found. Pricing may appear after the next vendor refresh.
