Celestion CDV1-1757 16Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /Celestion
  4. /CDV1-1757

Media

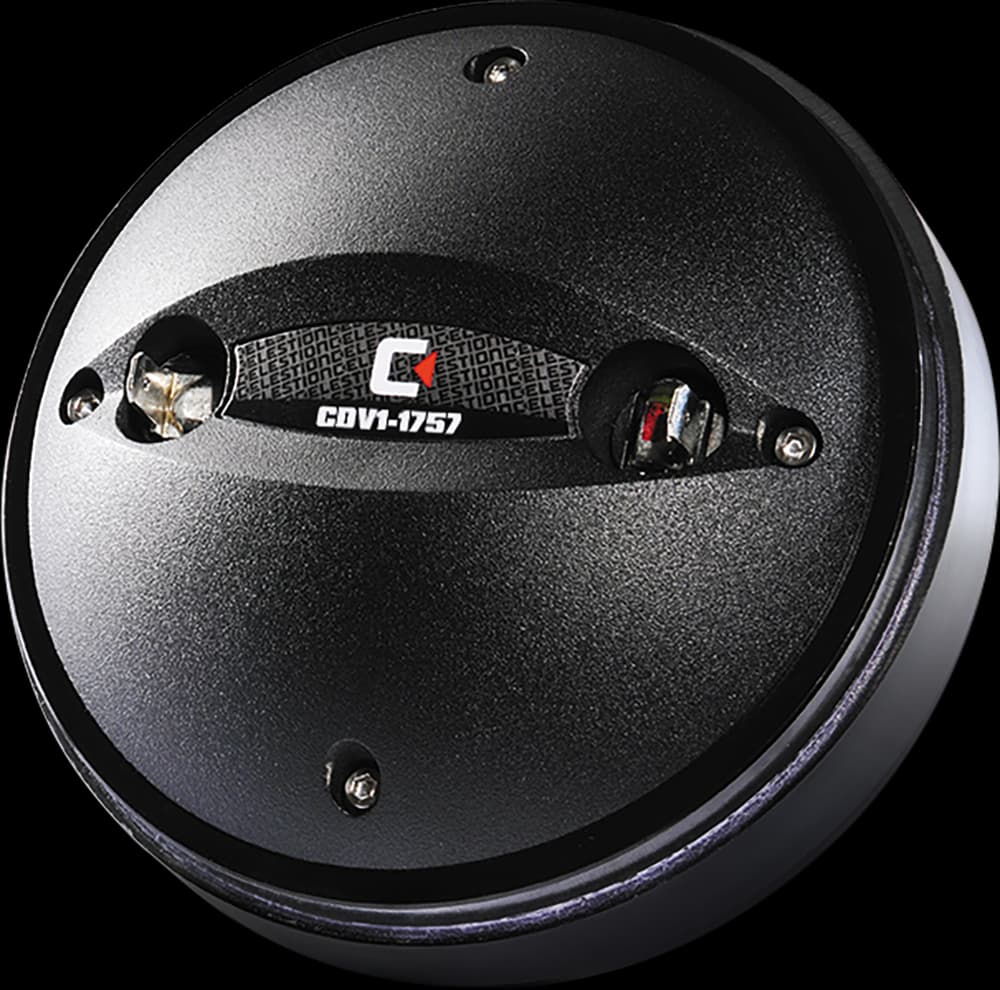

Celestion CDV1-1757 0.984251968503937 inch 16 ohm loudspeaker driver view 1

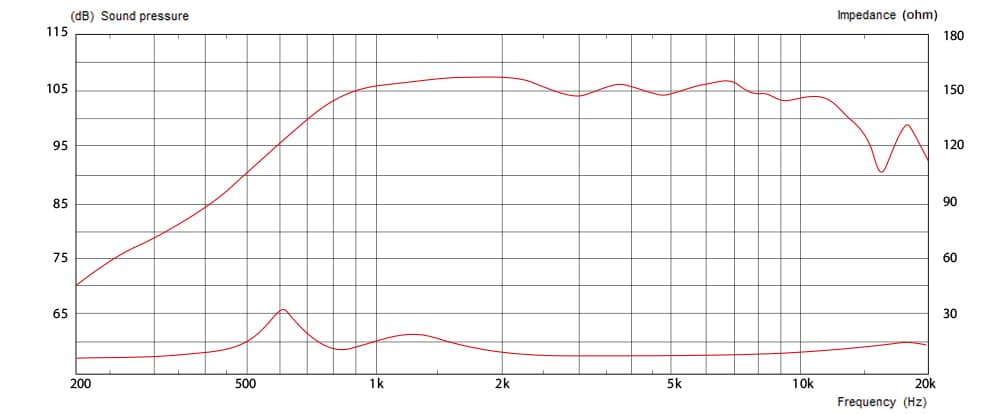

Celestion CDV1-1757 0.984251968503937 inch 16 ohm loudspeaker driver view 2
Auto-advancing

Overview

Compression DriverCDV1 series
Celestion

Celestion CDV1-1757

Celestion CDV1-1757 is a 1" 16 ohm compression driver rated at 60W RMS. The source-backed specifications include sensitivity 107dB, range from 800Hz, to 18000Hz, throat 25mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
16Ω
RMS Power
60W
Sensitivity
107.0dB
Datasheet

Technical Specifications

Canonical
SPL107dB
Power60W
Impedance16Ω
F Low800Hz
F High18000Hz
Xover800Hz
Throat25mm
Voice Coil44mm

Pricing & availability

Price definitions

Vendor offers

2 vendors
leanbusinessNot currently listed
Last seen 17 May 2026· 16Ω
Source: inc VAT · 20%
This vendor's catalogue no longer lists this product, so the price is not counted. Check the vendor for current availability.
£85.00
inc VAT
leanaudio
Updated 22 Sept 2026· 16Ω
Source: inc VAT · 20%
£85.00
inc VAT
Back order

Dimensions & Physical

Weight2.3kg
