BMS 4524 8Ω

Compression Driver
WatchWatch price
  1. Home
  2. /Drivers
  3. /BMS
  4. /4524

Media

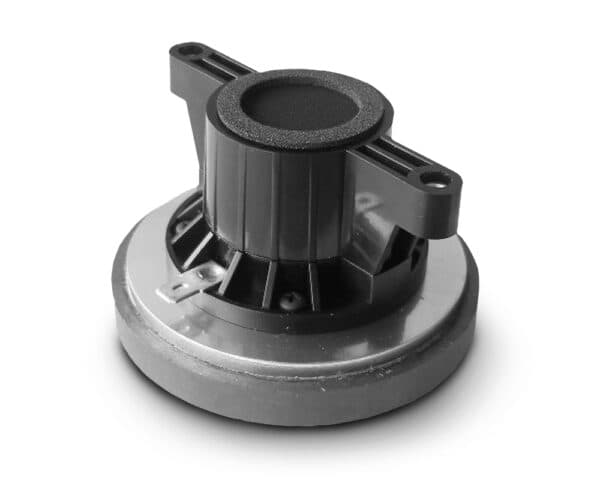

BMS 4524 1 inch 8 ohm loudspeaker driver

Overview

Compression Driver
BMS

BMS 4524

BMS 4524 is a 1" 8 ohm compression driver rated at 25W RMS. The source-backed specifications include sensitivity 113dB, range from 1200Hz, to 30000Hz, throat 25.4mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.

Size
1"
Impedance
8Ω
RMS Power
25W
Sensitivity
113.0dB

Technical Specifications

Canonical
SPL113dB
Power25W
Impedance8Ω
F Low1200Hz
F High30000Hz
Xover1900Hz
Throat25mm

Pricing & availability

Price definitions

Vendor offers

1 vendor
leanaudio
Updated 22 Sept 2026· 8Ω
Source: inc VAT · 20%
£48.10
inc VAT
Back order

Dimensions & Physical

Weight0.7kg
Diameter86.0mm
Overall Depth58.0mm

Additional Manufacturer Specs

4. Peak Power200 W
1. Throat Diameter1″ (25.4 mm)
8. Frequency Range1200 – 30000 Hz
10. Magnet MaterialFerrite
13. Voice Coil FormerKapton TM
2. Nominal Impendance8 Ohm
14. Diaphragm MaterialPolyester
7. Maximal Spl (Cont.)127 dB at 25 W
12. Voice Coil MaterialCopper Clad Aluminum
3. Power Capacity (Aes)25 W
11. Flux Density (Tesla)1.8
9. Recommended Crossover1900 Hz
6. Plane Wave Tube, 1 W / 1 M117dB
5. Cd Horn 90° X 75° 1 W / 1 M113 dB
