Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespBeyma 110MCF40ND8 8Ω
LF DriverMedia
Overview
LF Driver
Beyma
Beyma 110MCF40ND8
Beyma 110MCF40ND8 is a 10" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 260Hz, Qts 0.44, Vas 2L, Xmax 3.5mm, sensitivity 101dB, plus 133cm³ Vd and 578 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
10"
Impedance
8Ω
RMS Power
400W
Sensitivity
101.0dB
102.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
578
Vented alignment
Vd
133cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence4,652 selected pixels of 5,928
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs260Hz
Qts0.44
Qes0.45
Qms22.0
Vas2.0L
Re5.8Ω
Le0.50mH
BL28.8Tm
Sd380cm²
Mms40g
Xmax3.5mm
SPL101dB
Power400W
Impedance8Ω
F Low300Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.2kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
110MCF40ND8
10"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
67%
Similarity
£233.84

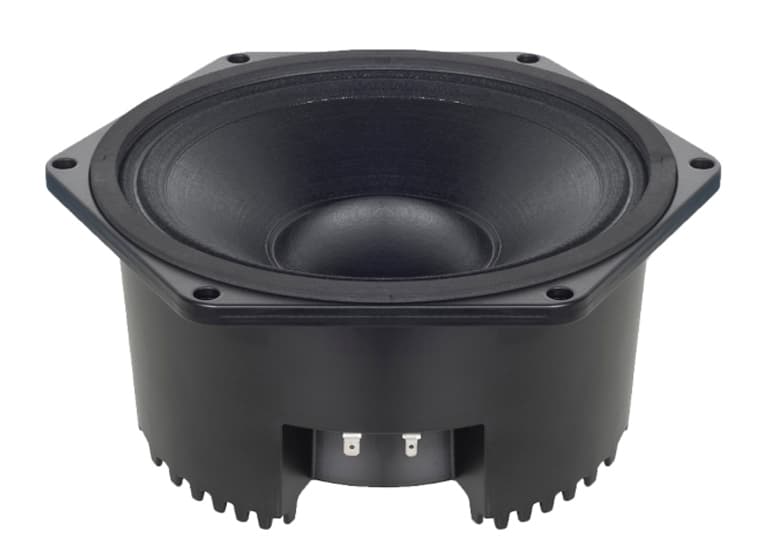

B&C
10NSM76
10"
Xmax3.5mm0%
Qts0.52+18%
BL21.5Tm-25%
Vas2L0%
Qes0.55+22%
