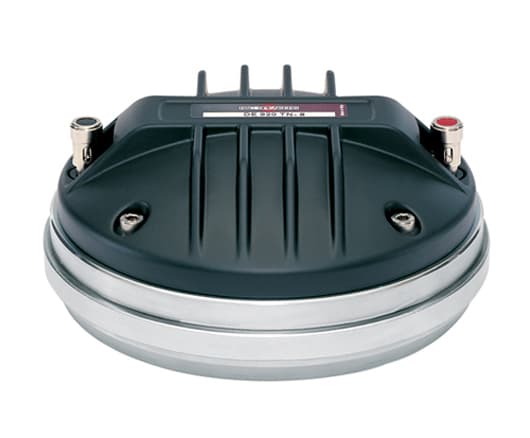

1.5-inch compression driver · 75 mm voice coil · 110 W
B&C DE920TN 8Ω
8 Ω · 1000–18000 Hz
No current price
- SPL
- 109dB
- Pe
- 110W
- Xover
- 1200Hz
- Throat
- 36mm
- VC
- 75mm

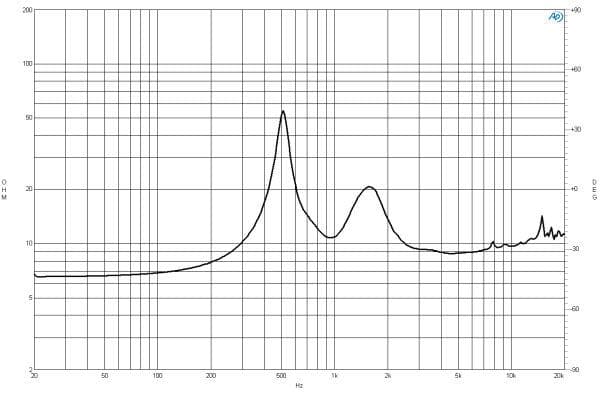

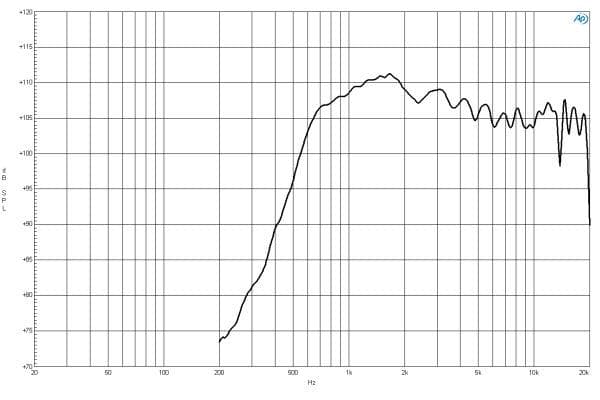

Published graphs
B&C DE920TN is a 1.5-inch 8 ohm compression driver rated at 110 W RMS. The source-backed specifications include sensitivity 108.5 dB, range from 1000 Hz, to 18000 Hz, throat 36 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.14mH
Motor and cone
- Voice coil
- 75mm
- Flux density
- 2.05T
Power and response
- Sensitivity
- 108.5dB
- Power
- 110W
- Nominal power
- 110W
- Impedance
- 8Ω
- Min. impedance
- 7.8Ω
- Range
- 1000–18000Hz
- Crossover
- 1200Hz
- Throat
- 36mm
Size and mounting
- Diameter
- 131mm
- Depth
- 57mm
- Weight
- 2.5kg
Everything else B&C lists
HF
- Le
- 0.14mH
- SPL
- 108.5dB
- Power
- 110W
- Impedance
- 8Ω
- Flux density
- 2.05T
- Sensitivity
- 108.5dB
- Low limit
- 1000Hz
- Nominal power
- 110W
- High limit
- 18000Hz
- Throat
- 36mm
- Manufacturer sensitivity
- 108.5dB
- Min. impedance
- 7.8Ω
- Voice coil
- 75mm
- Crossover
- 1200Hz
- Weight
- 2.5kg
- Diameter
- 131mm
- Depth
- 57mm
- Depth
- 57 mm (2.2 in)
- Inductance
- 0.14 mH
- Net weight
- 2.46 kg (5.42 lb)
- Sensitivity
- 108.5 dB
- Flux density
- 2.05 T
- Shipping box
- 140x135x62 mm (5.51x5.31x2.44 in)
- Shipping units
- 1 pcs
- Frequency range
- 1 kHz - 18 kHz
- Shipping weight
- 2.51 kg (5.53 lb)
- Throat diameter
- 36 mm (1.4 in)
- Overall diameter
- 131 mm (5.2 in)
- Winding material
- Aluminium
- Minimum impedance
- 7.8 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 75 mm (3 in)
- Recommended crossover
- 1.2 kHz
- Nominal power handling
- 110 W
- Continuous power handling
- 220 W
