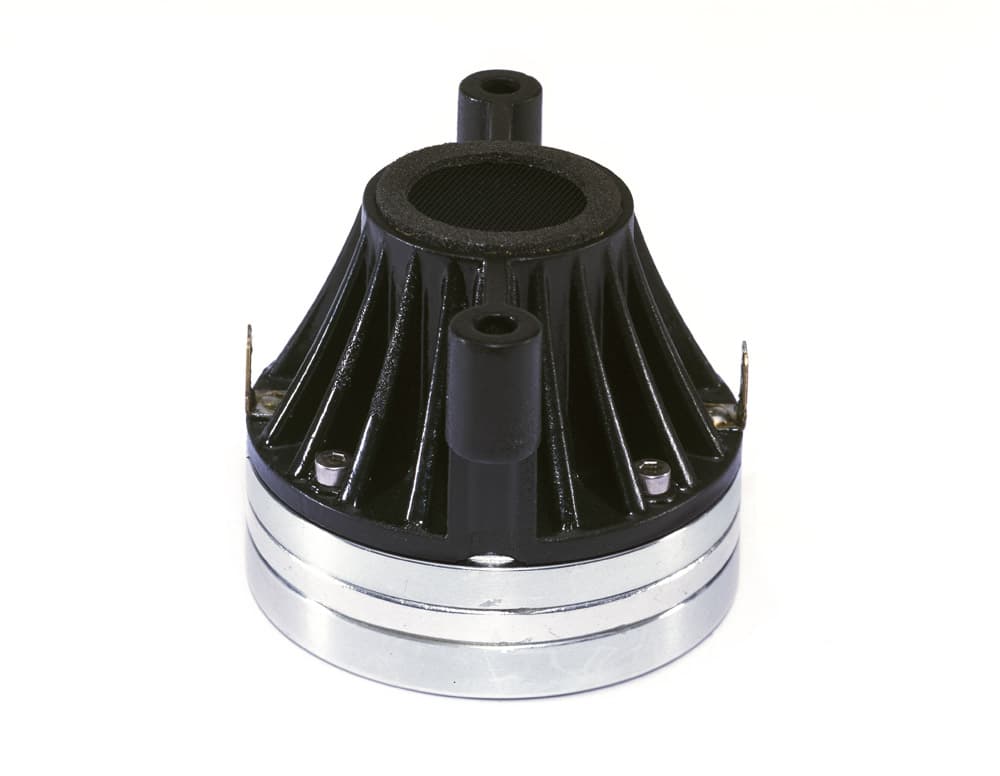

1-inch compression driver · 38 mm voice coil · 40 W
B&C DE38 8Ω
8 Ω · 2000–20000 Hz
No current price
- SPL
- 108dB
- Pe
- 40W
- Xover
- 2000Hz
- Throat
- 25mm
- VC
- 38mm

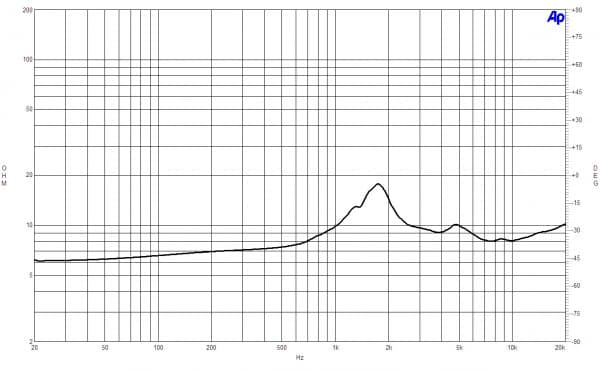

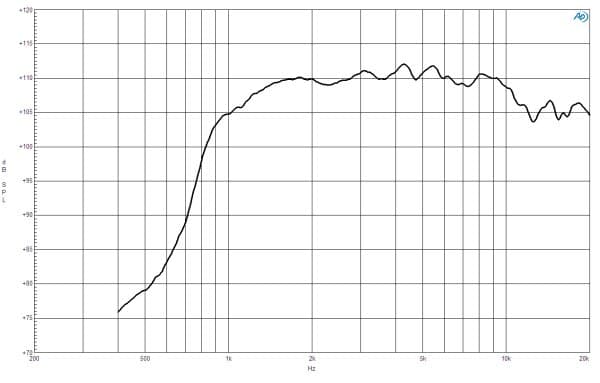

Published graphs
B&C DE38 is a 1-inch 8 ohm compression driver rated at 40 W RMS. The source-backed specifications include sensitivity 107.5 dB, range from 2000 Hz, to 20000 Hz, throat 25 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.05mH
Motor and cone
- Voice coil
- 38mm
- Flux density
- 2T
Power and response
- Sensitivity
- 107.5dB
- Power
- 40W
- Nominal power
- 40W
- Impedance
- 8Ω
- Min. impedance
- 8.1Ω
- Range
- 2000–20000Hz
- Crossover
- 2000Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 70mm
- Depth
- 54mm
- Weight
- 0.55kg
Everything else B&C lists
HF
- Le
- 0.05mH
- SPL
- 107.5dB
- Power
- 40W
- Impedance
- 8Ω
- Flux density
- 2T
- Sensitivity
- 107.5dB
- Low limit
- 2000Hz
- Nominal power
- 40W
- High limit
- 20000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 107.5dB
- Min. impedance
- 8.1Ω
- Voice coil
- 38mm
- Crossover
- 2000Hz
- Weight
- 0.55kg
- Diameter
- 70mm
- Depth
- 54mm
- Depth
- 54 mm (2.1 in)
- Inductance
- 0.05 mH
- Net weight
- 0.55 kg (1.21 lb)
- Sensitivity
- 107.5 dB
- Flux density
- 2 T
- Shipping box
- 92x76x60 mm (3.62x2.99x2.36 in)
- Shipping units
- 1 pcs
- Frequency range
- 2 kHz - 20 kHz
- Shipping weight
- 0.58 kg (1.28 lb)
- Throat diameter
- 25 mm (1 in)
- Overall diameter
- 70 mm (2.75 in)
- Winding material
- Aluminium
- Minimum impedance
- 8.1 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Mylar
- Voice coil diameter
- 38 mm (1.5 in)
- Recommended crossover
- 2 kHz
- Nominal power handling
- 40 W
- Continuous power handling
- 80 W
No current price found. Pricing may appear after the next vendor refresh.
