1-inch compression driver · 36 mm voice coil · 30 W

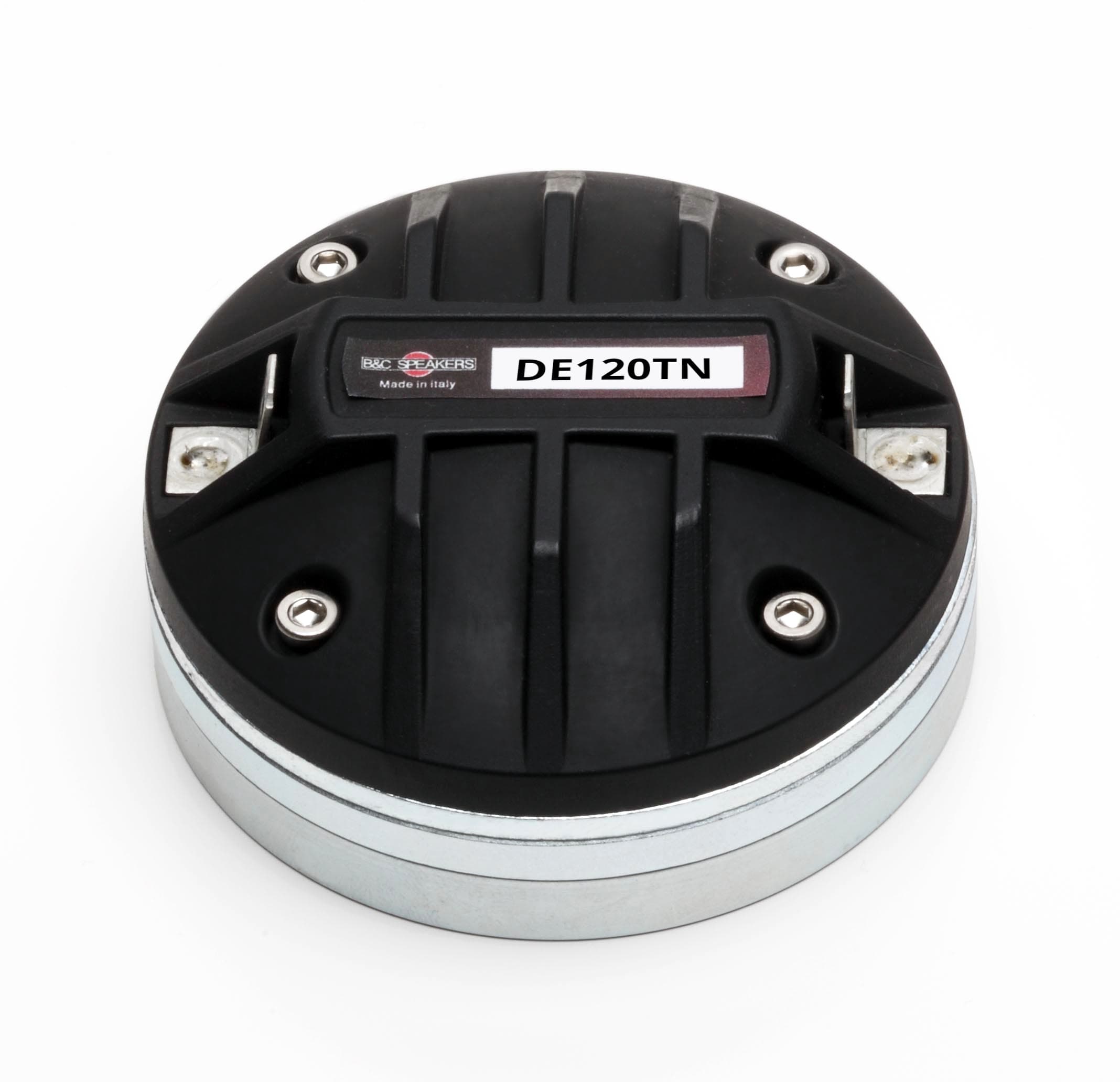

B&C DE120TN 8Ω
8 Ω · 1200–18000 Hz
No current price
- SPL
- 106dB
- Pe
- 30W
- Xover
- 2000Hz
- Throat
- 25mm
- VC
- 36mm

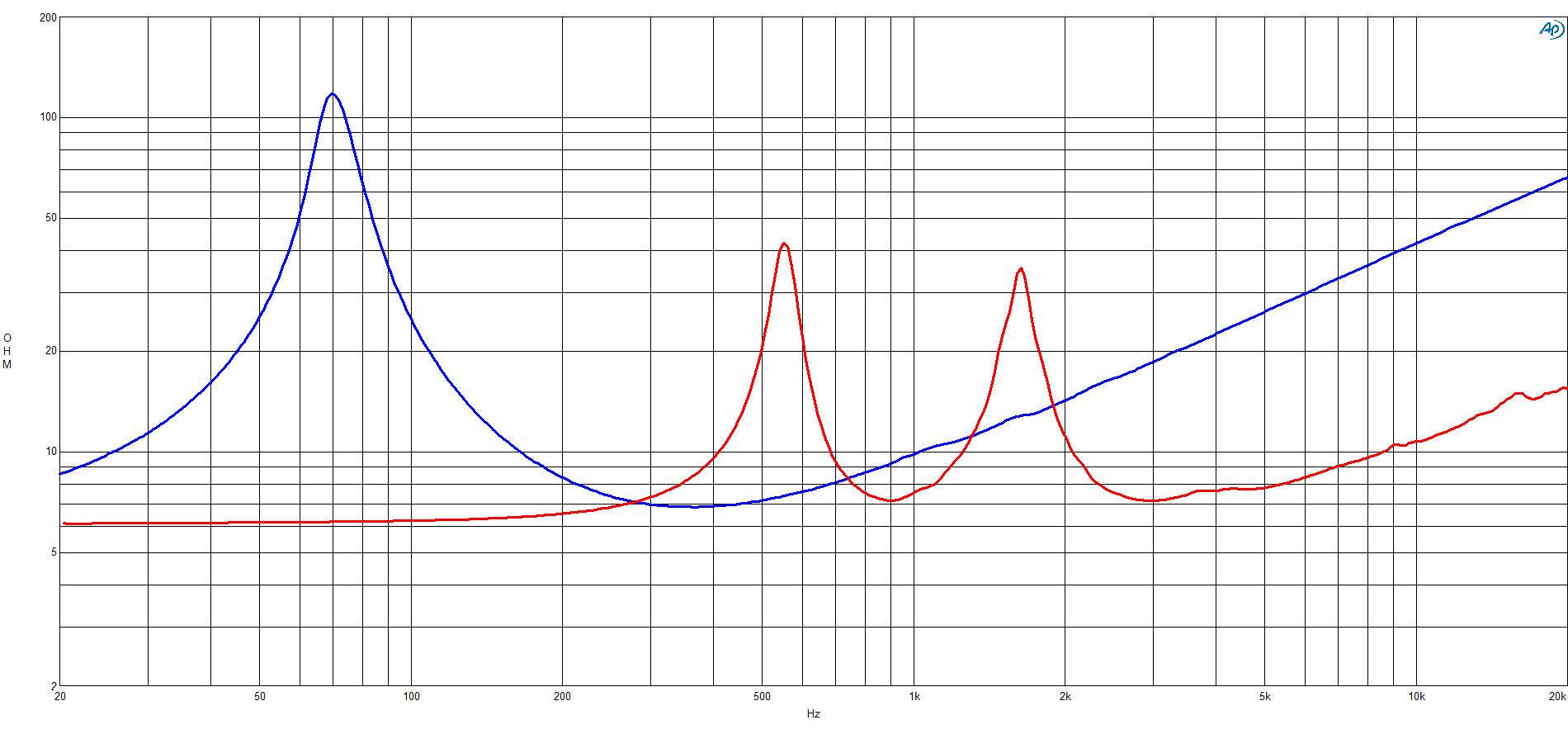

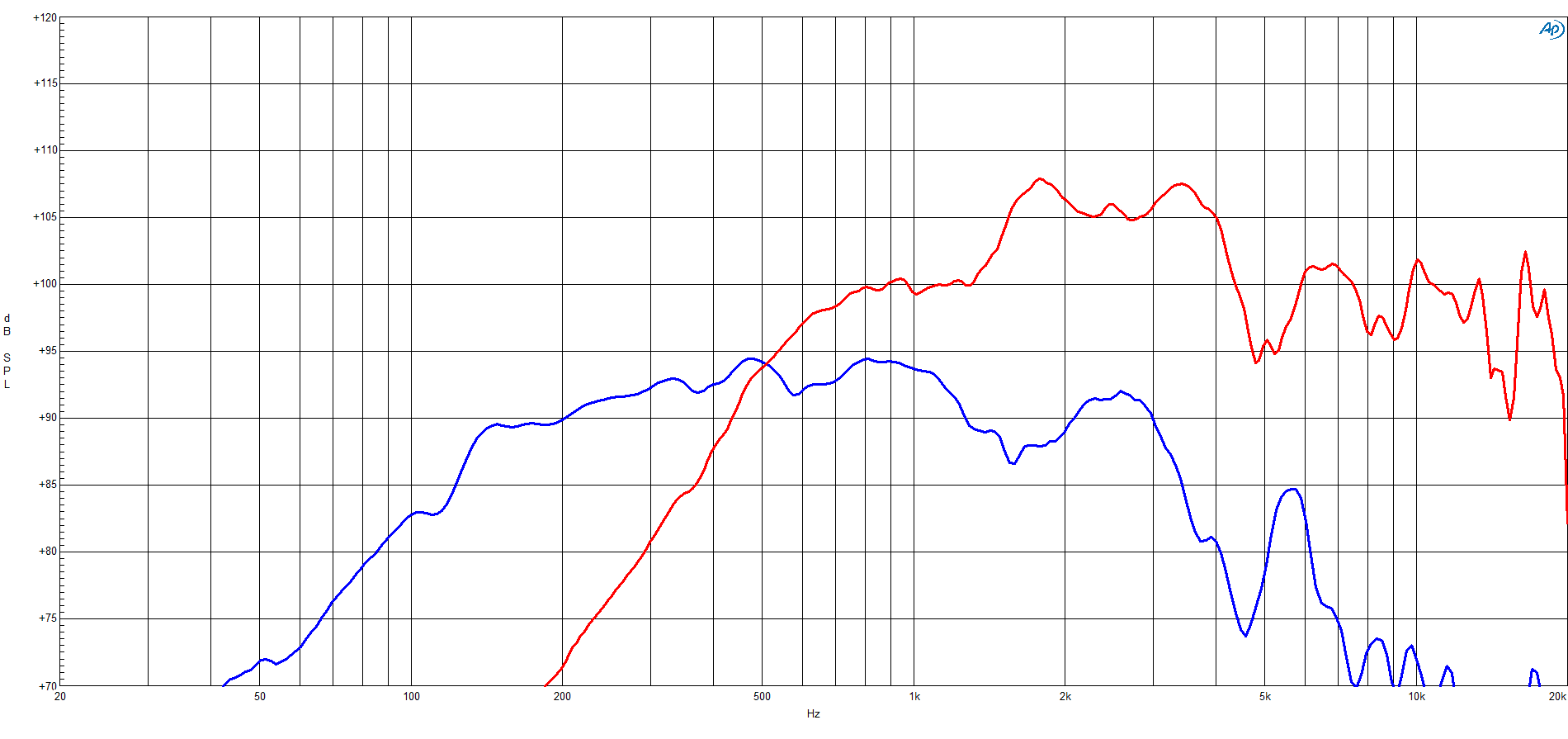

Published graphs
B&C DE120TN is a 1-inch 8 ohm compression driver rated at 30 W RMS. The source-backed specifications include sensitivity 105.5 dB, range from 1200 Hz, to 18000 Hz, throat 25 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.14mH
Motor and cone
- Voice coil
- 36mm
- Flux density
- 1.90T
Power and response
- Sensitivity
- 105.5dB
- Power
- 30W
- Nominal power
- 30W
- Impedance
- 8Ω
- Min. impedance
- 8Ω
- Range
- 1200–18000Hz
- Crossover
- 2000Hz
- Throat
- 25mm
Size and mounting
- Diameter
- 71mm
- Depth
- 34mm
- Weight
- 0.45kg
Everything else B&C lists
HF
- Le
- 0.14mH
- SPL
- 105.5dB
- Power
- 30W
- Impedance
- 8Ω
- Flux density
- 1.90T
- Sensitivity
- 105.5dB
- Low limit
- 1200Hz
- Nominal power
- 30W
- High limit
- 18000Hz
- Throat
- 25mm
- Manufacturer sensitivity
- 105.5dB
- Min. impedance
- 8Ω
- Voice coil
- 36mm
- Crossover
- 2000Hz
- Weight
- 0.45kg
- Diameter
- 71mm
- Depth
- 34mm
- Depth
- 34 mm (1.34 in)
- Inductance
- 0.14 mH
- Net weight
- 0.45 kg (0.98 lb)
- Sensitivity
- 105.5 dB
- Flux density
- 1.9 T
- Shipping box
- 105x105x65 mm (4.13x4.13x2.56 in)
- Shipping units
- 1 pcs
- Frequency range
- 1.2 kHz - 18 kHz
- Shipping weight
- 0.48 kg (1.05 lb)
- Throat diameter
- 25 mm (1 in)
- Overall diameter
- 71 mm (2.8 in)
- Winding material
- Aluminium
- Minimum impedance
- 8 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 36 mm (1.4 in)
- Recommended crossover
- 2 kHz
- Nominal power handling
- 30 W
- Continuous power handling
- 60 W
