2-inch compression driver · 100 mm voice coil · 140 W

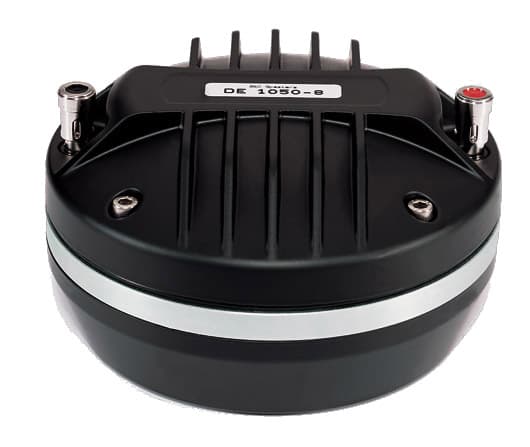

B&C DE1050 8Ω
8 Ω
No current price
- SPL
- 109dB
- Pe
- 140W
- Xover
- 800Hz
- Throat
- 50mm
- VC
- 100mm

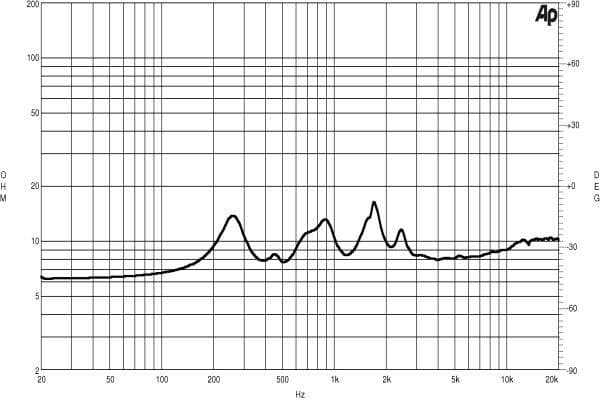

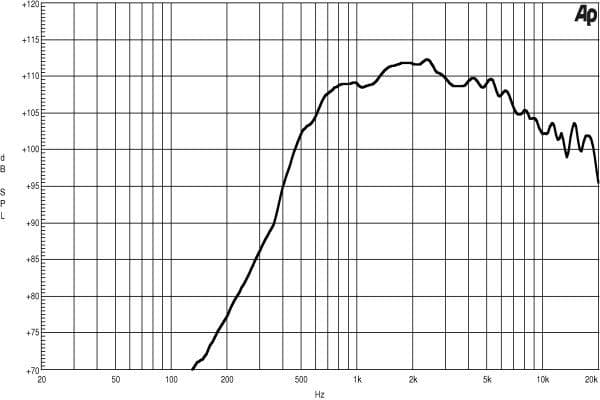

Published graphs
B&C DE1050 is a 2-inch 8 ohm compression driver rated at 140 W RMS. The source-backed specifications include sensitivity 109 dB, range from 500000 Hz, to 20000 Hz, throat 50 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.18mH
Motor and cone
- Voice coil
- 100mm
- Flux density
- 1.95T
Power and response
- Sensitivity
- 109dB
- Power
- 140W
- Nominal power
- 140W
- Impedance
- 8Ω
- Min. impedance
- 8.1Ω
- Low limit
- 500000Hz
- High limit
- 20000Hz
- Crossover
- 800Hz
- Throat
- 50mm
Size and mounting
- Diameter
- 154mm
- Depth
- 86mm
- Weight
- 3.7kg
Everything else B&C lists
HF
- Le
- 0.18mH
- SPL
- 109dB
- Power
- 140W
- Impedance
- 8Ω
- Flux density
- 1.95T
- Sensitivity
- 109dB
- Low limit
- 500000Hz
- Nominal power
- 140W
- High limit
- 20000Hz
- Throat
- 50mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 8.1Ω
- Voice coil
- 100mm
- Crossover
- 800Hz
- Weight
- 3.7kg
- Diameter
- 154mm
- Depth
- 86mm
- Depth
- 86 mm (3.39 in)
- Inductance
- 0.18 mH
- Net weight
- 3.7 kg (8.16 lb)
- Sensitivity
- 109 dB
- Flux density
- 1.95 T
- Shipping box
- 195x195x120 mm (7.68x7.68x4.72 in)
- Shipping units
- 1 pcs
- Frequency range
- 500 kHz - 20 kHz
- Shipping weight
- 4 kg (8.82 lb)
- Throat diameter
- 50 mm (2 in)
- Overall diameter
- 154 mm (6.1 in)
- Winding material
- Aluminium
- Minimum impedance
- 8.1 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 100 mm (4 in)
- Recommended crossover
- 0.8 kHz
- Nominal power handling
- 140 W
- Continuous power handling
- 280 W
