1.5-inch compression driver · 100 mm voice coil · 140 W

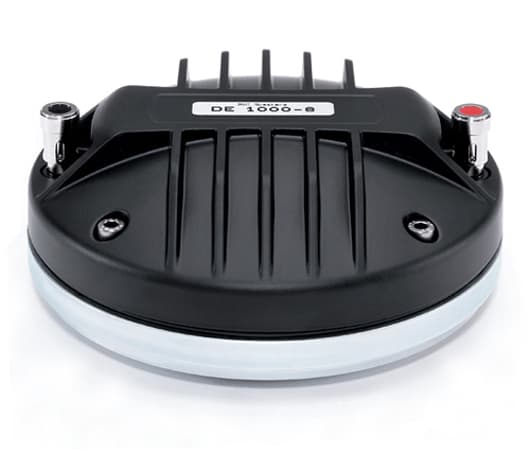

B&C DE1000 8Ω
8 Ω · 1000–20000 Hz
No current price
- SPL
- 109dB
- Pe
- 140W
- Xover
- 1000Hz
- Throat
- 38mm
- VC
- 100mm

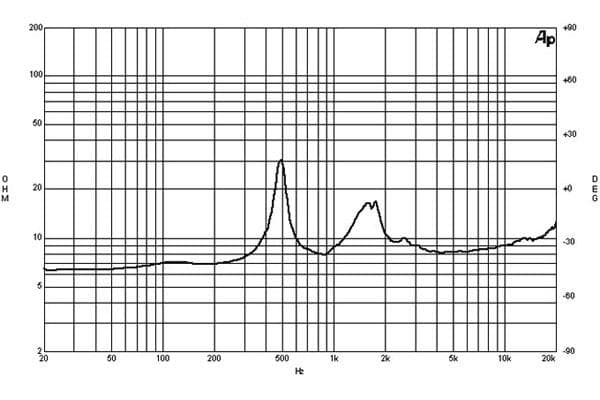

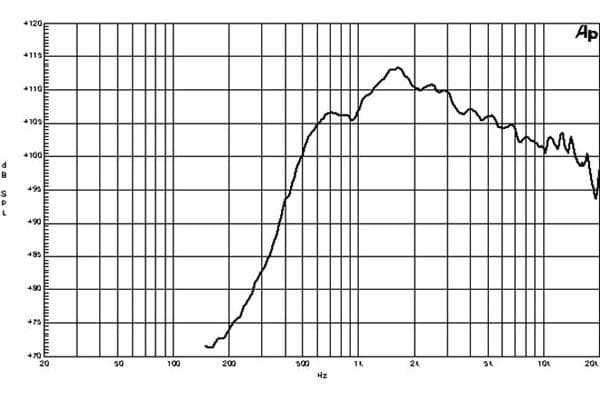

Published graphs
B&C DE1000 is a 1.5-inch 8 ohm compression driver rated at 140 W RMS. The source-backed specifications include sensitivity 109 dB, range from 1000 Hz, to 20000 Hz, throat 38 mm. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Source-backed specifications
Thiele/Small
- Le
- 0.18mH
Motor and cone
- Voice coil
- 100mm
- Flux density
- 1.95T
Power and response
- Sensitivity
- 109dB
- Power
- 140W
- Nominal power
- 140W
- Impedance
- 8Ω
- Min. impedance
- 8.1Ω
- Range
- 1000–20000Hz
- Crossover
- 1000Hz
- Throat
- 38mm
Size and mounting
- Diameter
- 154mm
- Depth
- 60mm
- Weight
- 3.4kg
Everything else B&C lists
HF
- Le
- 0.18mH
- SPL
- 109dB
- Power
- 140W
- Impedance
- 8Ω
- Flux density
- 1.95T
- Sensitivity
- 109dB
- Low limit
- 1000Hz
- Nominal power
- 140W
- High limit
- 20000Hz
- Throat
- 38mm
- Manufacturer sensitivity
- 109dB
- Min. impedance
- 8.1Ω
- Voice coil
- 100mm
- Crossover
- 1000Hz
- Weight
- 3.4kg
- Diameter
- 154mm
- Depth
- 60mm
- Depth
- 60 mm (2.4 in)
- Inductance
- 0.18 mH
- Net weight
- 3.4 kg (7.5 lb)
- Sensitivity
- 109 dB
- Flux density
- 1.95 T
- Shipping box
- 190x190x100 mm (7.48x7.48x3.94 in)
- Shipping units
- 1 pcs
- Frequency range
- 1 kHz - 20 kHz
- Shipping weight
- 3.58 kg (7.89 lb)
- Throat diameter
- 38 mm (1.5 in)
- Overall diameter
- 154 mm (6.1 in)
- Winding material
- Aluminium
- Minimum impedance
- 8.1 Ω
- Nominal impedance
- 8 Ω
- Diaphragm material
- Titanium
- Voice coil diameter
- 100 mm (4 in)
- Recommended crossover
- 1 kHz
- Nominal power handling
- 140 W
- Continuous power handling
- 280 W
