Overview
LF DriverCrystalid series
Accuton

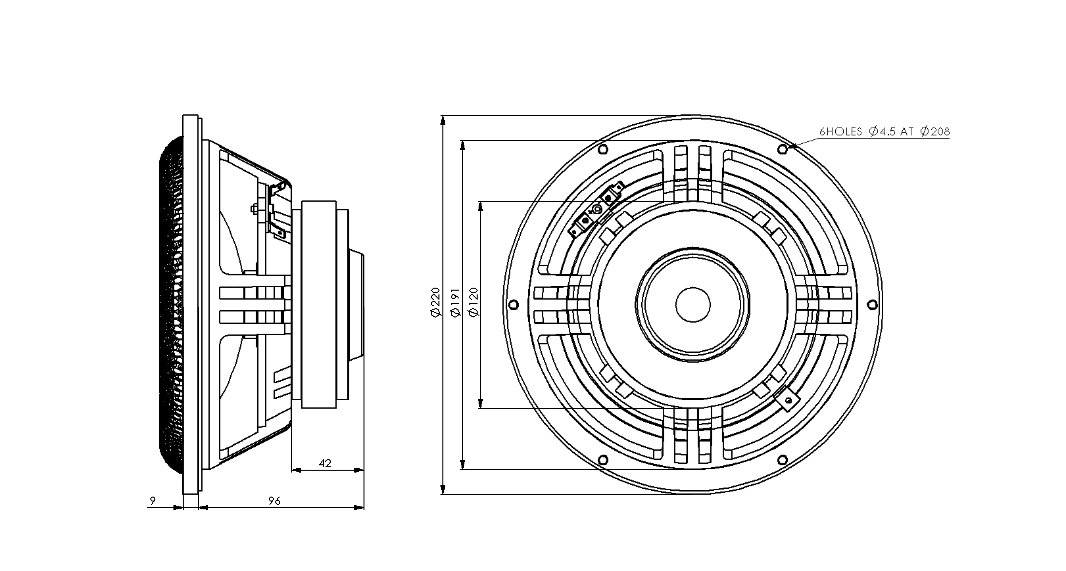

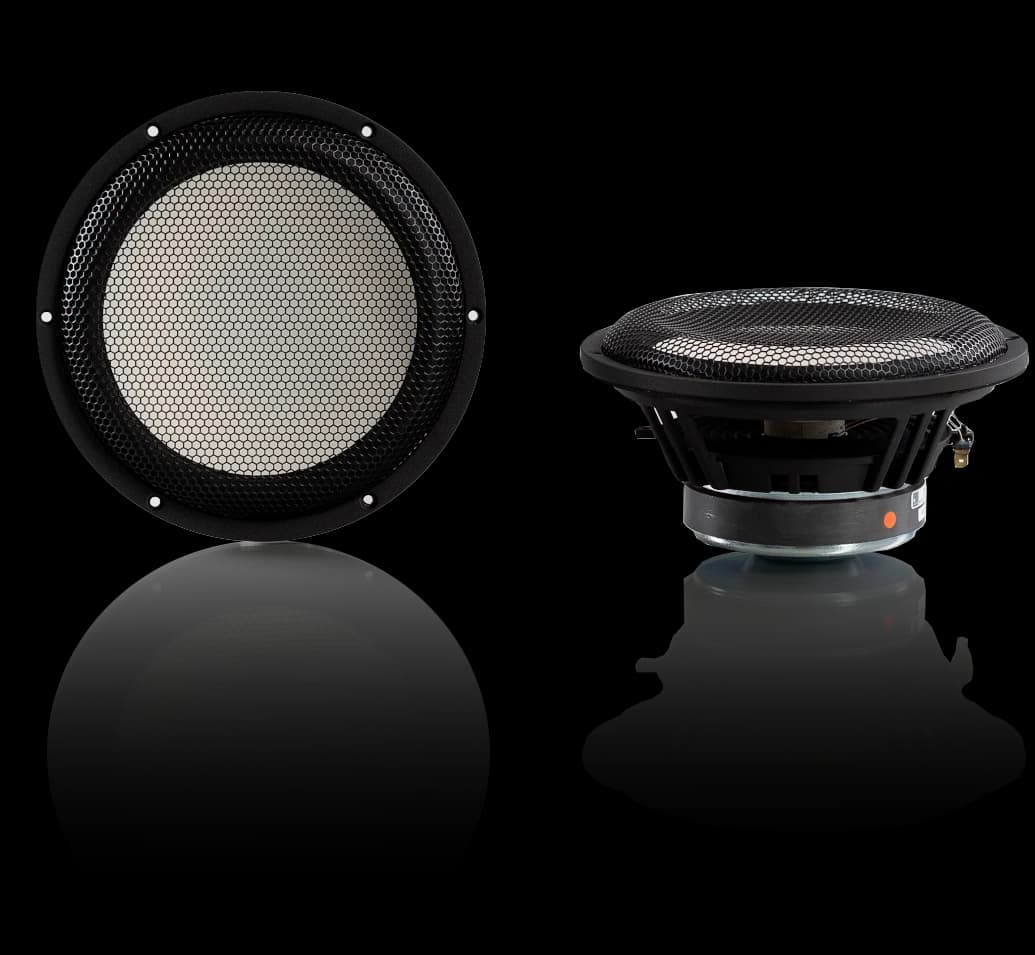

Accuton CL220-6-221
Accuton CL220-6-221 is a - 6 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 27Hz, Qts 0.34, Vas 99.0L, Xmax 4mm, sensitivity 89.6dB, plus 91cm³ Vd and 78 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
6Ω
RMS Power
120W
Sensitivity
89.6dB
86.5dBmanufacturer; using T/S-derived value (3.1dB delta).
EBP
78
Either alignment
Vd
91cm³
T/S Parameters
Valid
Fs27Hz
Qts0.34
Qes0.35
Qms6.5
Vas99.0L
Re10.2Ω
Le0.17mH
BL10.3Tm
Sd227cm²
Mms25g
Xmax4.0mm
SPL90dB
Power120W
Impedance6Ω
F Low40Hz
F High2500Hz
Voice Coil114mm
