Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespAccuton CL173-6-191 6Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverCrystalid series
Accuton

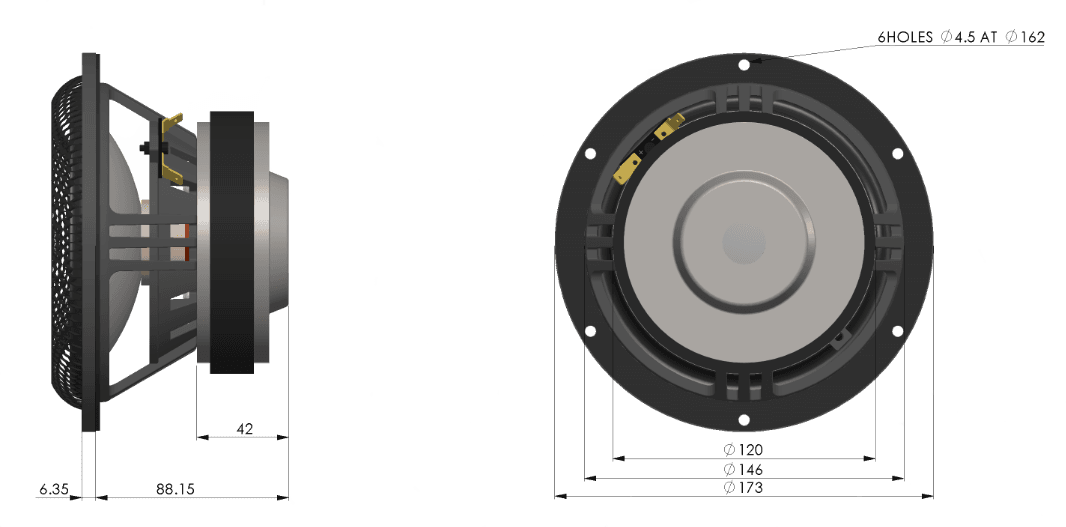

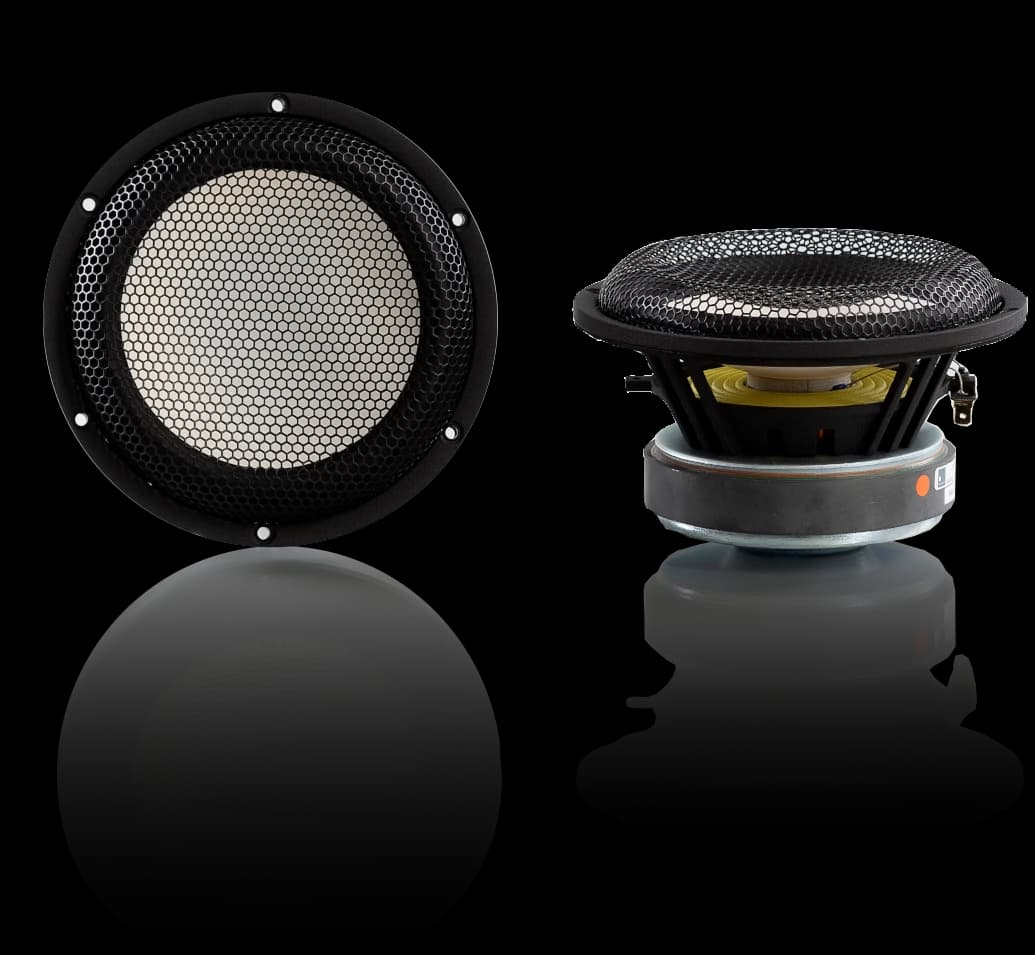

Accuton CL173-6-191
Accuton CL173-6-191 is a - 6 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 51Hz, Qts 0.39, Vas 17L, Xmax 6mm, sensitivity 89.2dB, plus 85cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
-
Impedance
6Ω
RMS Power
120W
Sensitivity
89.2dB
87.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
119
Vented alignment
Vd
85cm³
T/S Parameters
Valid
Fs51Hz
Qts0.39
Qes0.43
Qms3.9
Vas17.0L
Re9.9Ω
Le0.65mH
BL10.9Tm
Sd141cm²
Mms16g
Xmax6.0mm
SPL89dB
Power120W
Impedance6Ω
F Low40Hz
F High3Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
CL173-6-191
-
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
Loading matches
