Accuton ASP190
Passive RadiatorMedia
Auto-advancing
Overview
Passive RadiatorPassive Radiator series
Accuton

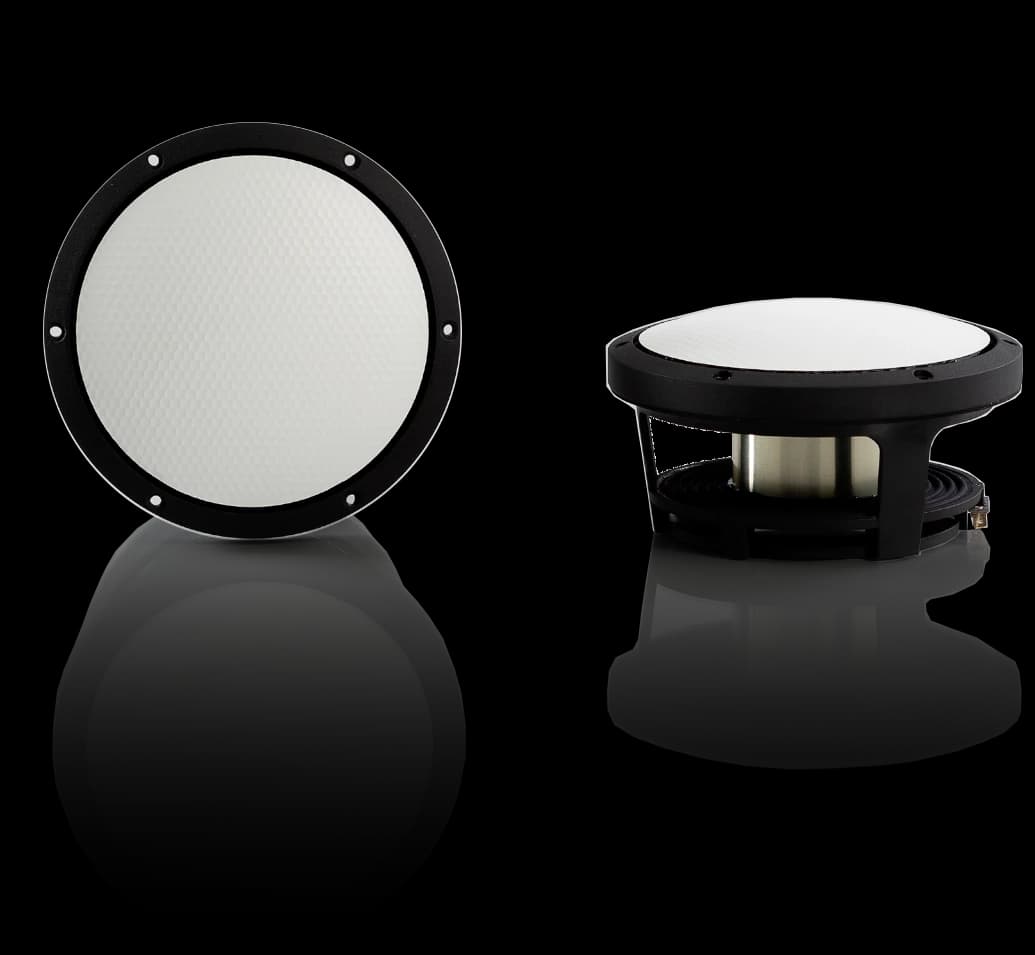

Accuton ASP190
Accuton ASP190 is a 7" passive radiator. The source-backed mechanical data includes Fs 33Hz, Vas 27L, Xmax 12mm, plus 242cm³ Vd. bits tracks vendor pricing and datasheet links from the same loudspeaker database.
Partial source evidence
No automated T/S validation result is published for this record yet.
- Manufacturer page linked
- Datasheet linked
- Canonical units normalized for comparison
- Vd can be derived from Sd and Xmax
Size
7"
Passive Radiator Parameters
Fs33Hz
Vas27.0L
Sd202cm²
Mms50g
Xmax12.0mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Qts, Qes, Qms, Re, Le, Bl, RMS power, nominal impedance
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Qts, Re, Le, Bl, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Qts, Qes, Qms, Re, Le, Bl, RMS power, nominal impedance
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Not enough T/S data
Missing a validated core T/S parameter set
Copy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

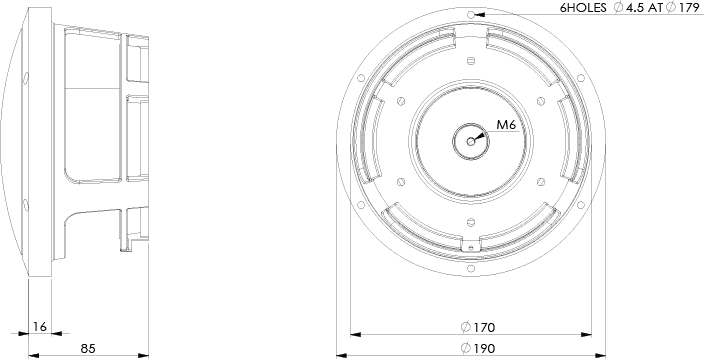

Dimensions & Physical
Diameter190.0mm
Overall Depth85.0mm
