NSW4018-8 18

LF Driver
Simulate

Media

NSW4018-8 18 view 1
NSW4018-8 18 view 2

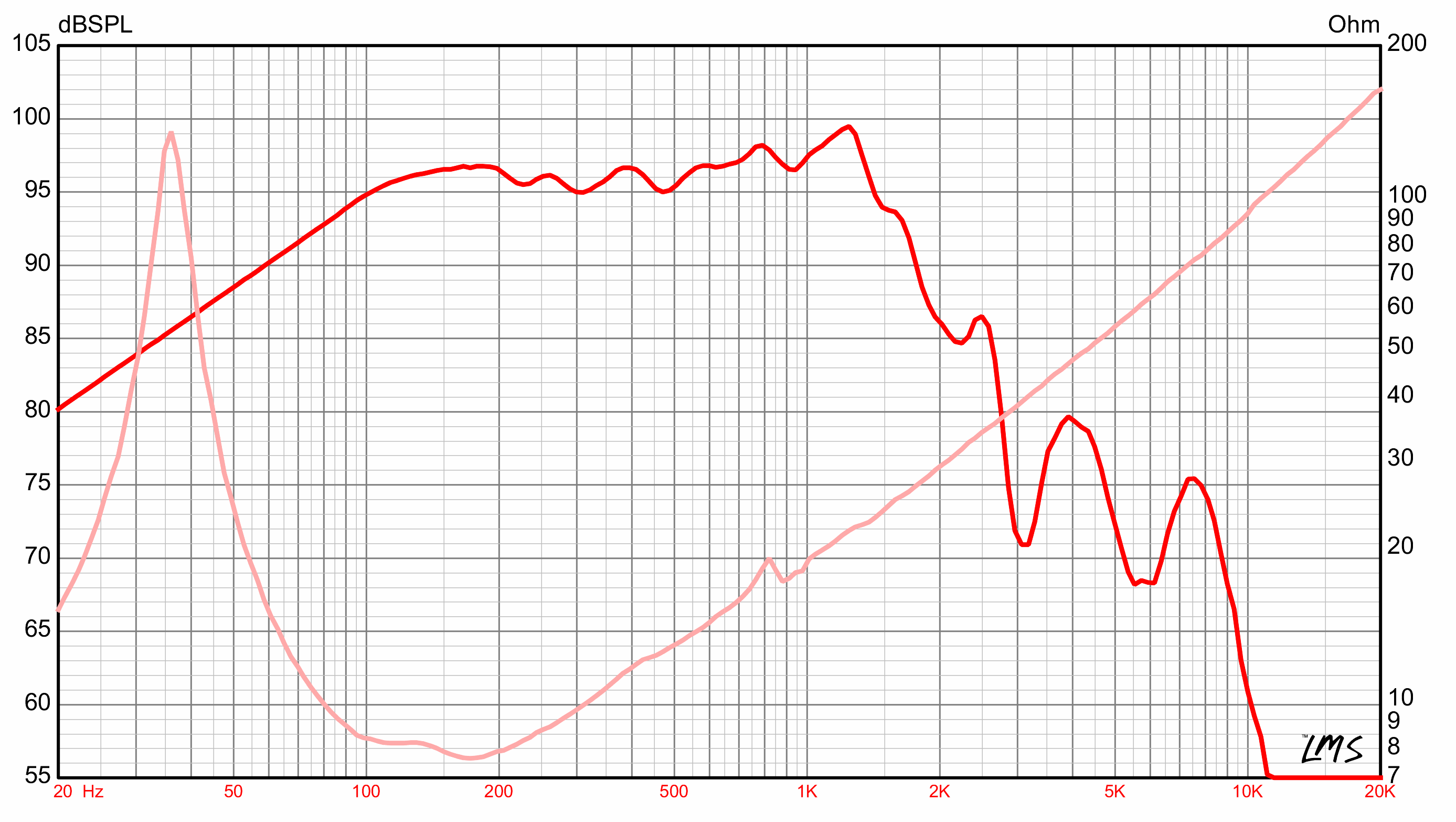

NSW4018-8 18 view 3
Auto-advancing

Overview

LF DriverNSW series
Eminence

NSW4018-8 18

Size
18"
Impedance
8Ω
RMS Power
1600W
Sensitivity
97dB
EBP
92
Either alignment
Vd
1851cm³
Datasheet

T/S Parameters

Valid
Manufacturer
Fs36Hz
Qts0.38
Qes0.39
Qms8.5
Vas164.5L
Re5.9Ω
Le1.54mH
BL28.2Tm
Sd1217cm²
Mms237g
Xmax15.2mm
SPL97dB
Power1600W
Impedance8Ω
F Low27Hz
F High1000Hz

Pricing & availability

Price movement

Best current price

Updated 17 May 2026

bluearan
£299.00
inc VAT
Buy now

Dimensions & Physical

Weight9.5kg
Diameter460.5mm
Overall Depth226.1mm
Cutout Diameter421.6mm
Bolt Circle Diameter439.9mm
