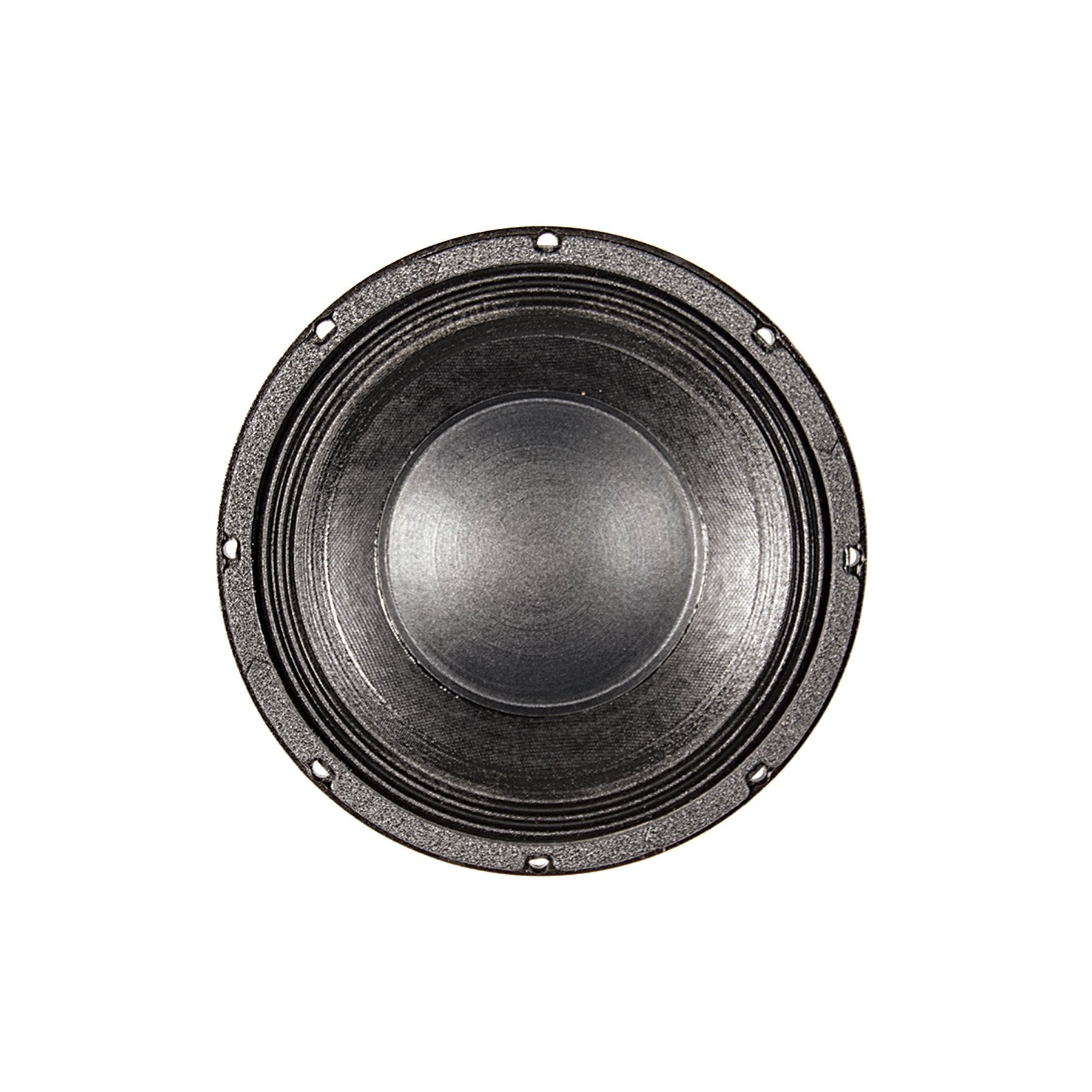

KAPPALITE view 1
KAPPALITE view 2

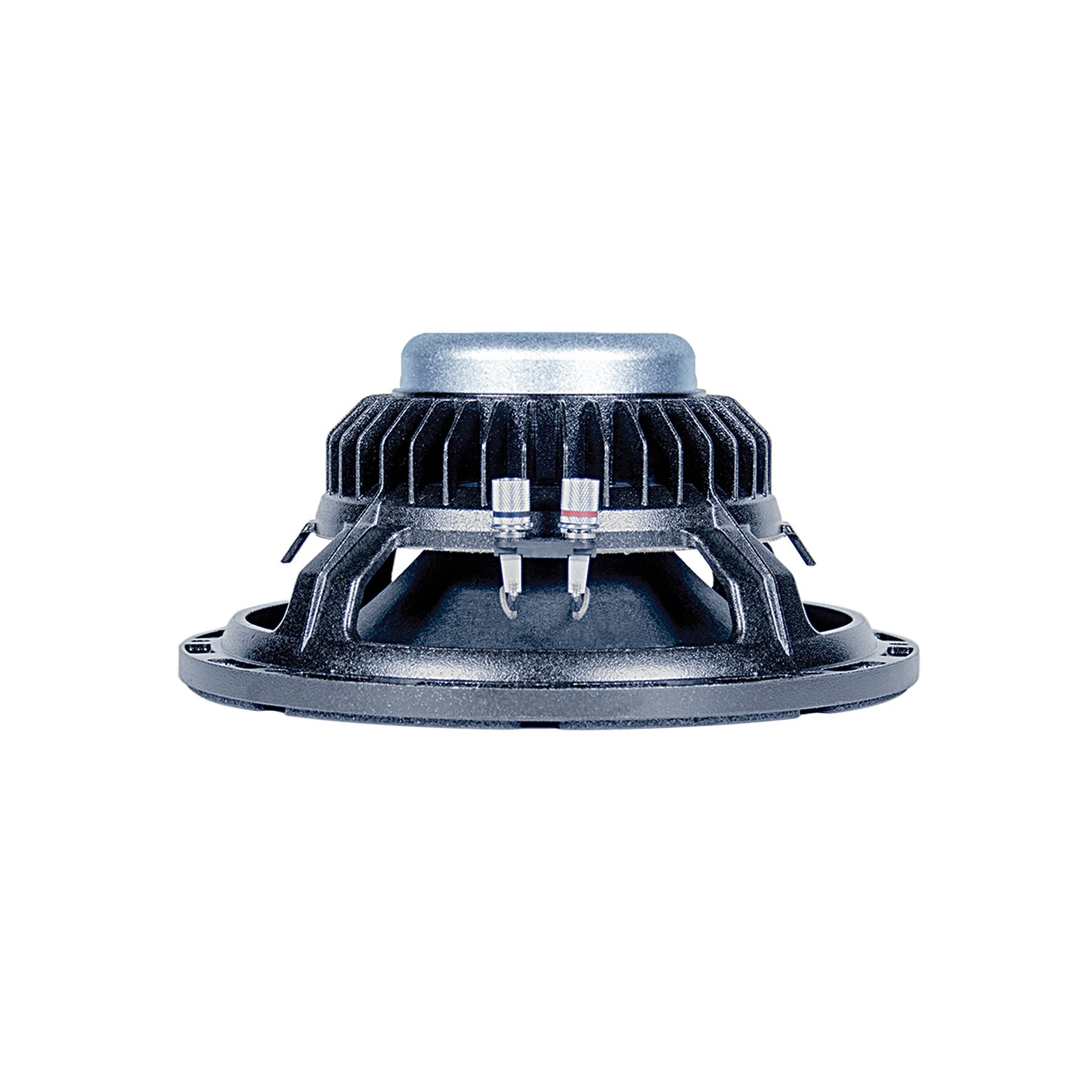

KAPPALITE view 3

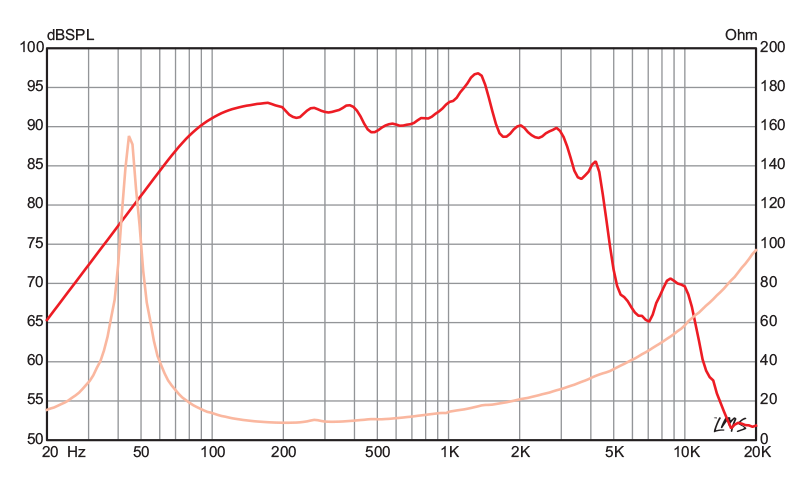

KAPPALITE view 4
Auto-advancing

Overview

LF DriverKAPPALITE series
Eminence

KAPPALITE

Size
10"
Impedance
8Ω
RMS Power
450W
Sensitivity
92dB
EBP
136
Vented alignment
Vd
321cm³
Datasheet

T/S Parameters

Valid
Manufacturer
Fs45Hz
Qts0.31
Qes0.33
Qms7.0
Vas47.3L
Re7.0Ω
Le0.87mH
BL18.0Tm
Sd377cm²
Mms53g
Xmax8.5mm
SPL92dB
Power450W
Impedance8Ω
F Low42Hz
F High1000Hz

Pricing & availability

Price movement

Other offers

6 vendors
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£125.45
inc VAT
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£150.00
inc VAT
bluearan
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£154.48
inc VAT
bluearan
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£160.97
inc VAT
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£168.99
inc VAT
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£220.64
inc VAT

Best current price

Updated 17 May 2026

bluearan
£123.44
Avg £157.71£34.27 below avg (-21.7%)
inc VAT
Buy now

Dimensions & Physical

Weight3.2kg
Diameter260.4mm
Overall Depth124.0mm
Cutout Diameter231.6mm
Bolt Circle Diameter247.1mm
