DELTA-15A 15

LF Driver
Simulate

Media

DELTA-15A 15 view 1

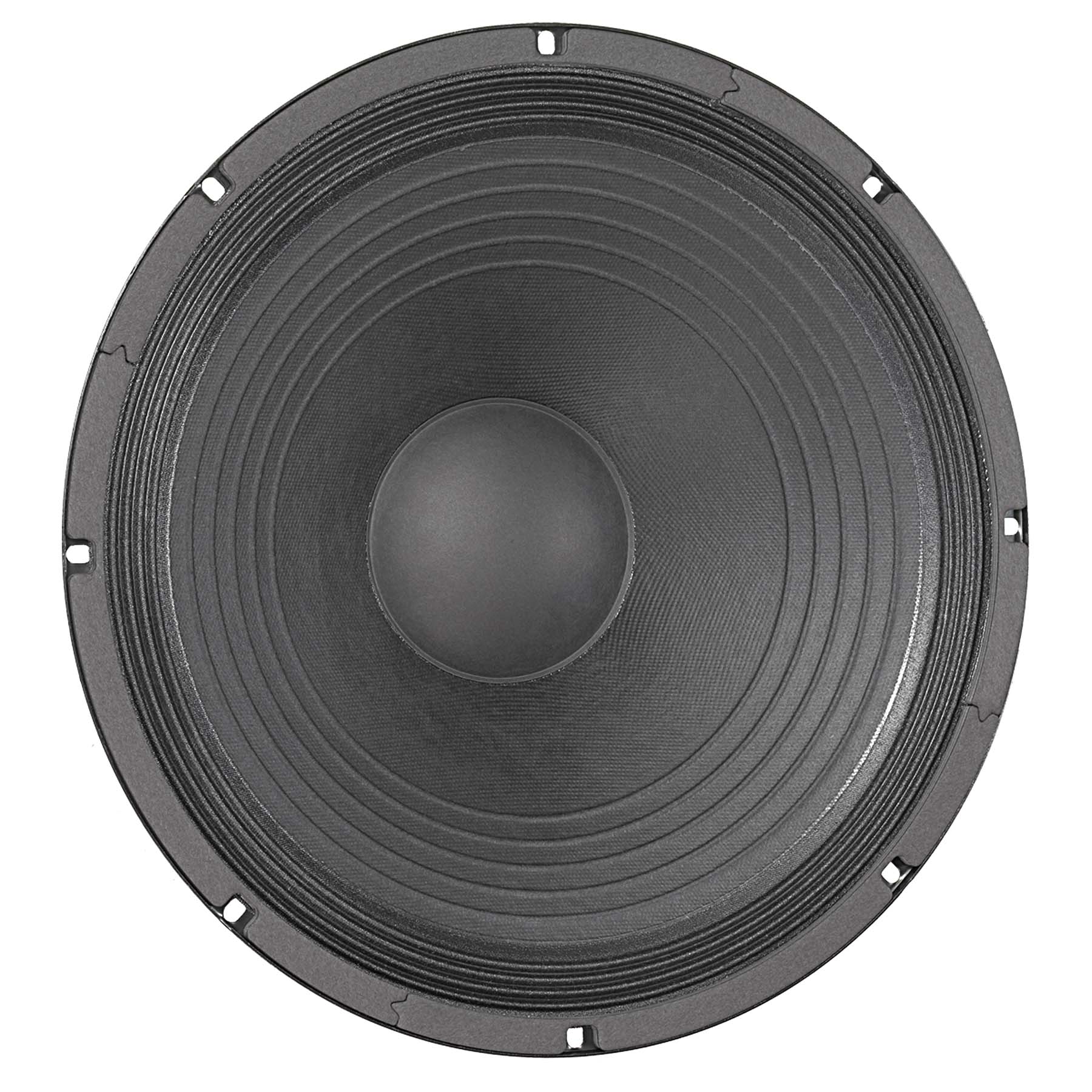

DELTA-15A 15 view 2
DELTA-15A 15 view 3

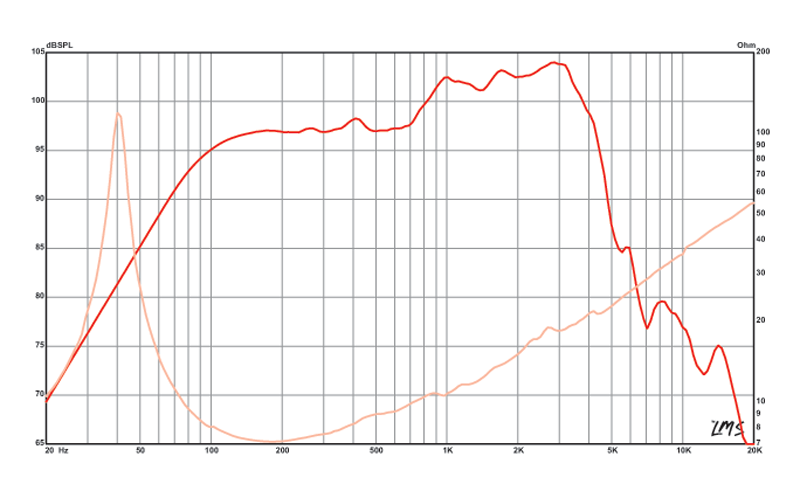

DELTA-15A 15 view 4
Auto-advancing

Overview

LF DriverDELTA series
Eminence

DELTA-15A 15

Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
100dB
EBP
70
Either alignment
Vd
233cm³
Datasheet

T/S Parameters

Valid
Manufacturer
Fs40Hz
Qts0.53
Qes0.57
Qms8.1
Vas270.7L
Re6.3Ω
Le0.64mH
BL13.2Tm
Sd865cm²
Mms62g
Xmax2.7mm
SPL100dB
Power400W
Impedance8Ω
F Low48Hz
F High4000Hz

Pricing & availability

Price movement

Other offers

6 vendors
leanaudio
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£115.07
inc VAT
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£115.07
inc VAT
leanaudio
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£135.00
inc VAT
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£145.00
inc VAT
leanaudio
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£153.34
inc VAT
bluearan
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£155.81
inc VAT

Best current price

Updated 17 May 2026

bluearan
£110.00
Avg £132.76£22.76 below avg (-17.1%)
inc VAT
Buy now

Dimensions & Physical

Weight5.6kg
Diameter384.8mm
Overall Depth153.7mm
Cutout Diameter352.3mm
Bolt Circle Diameter369.8mm
