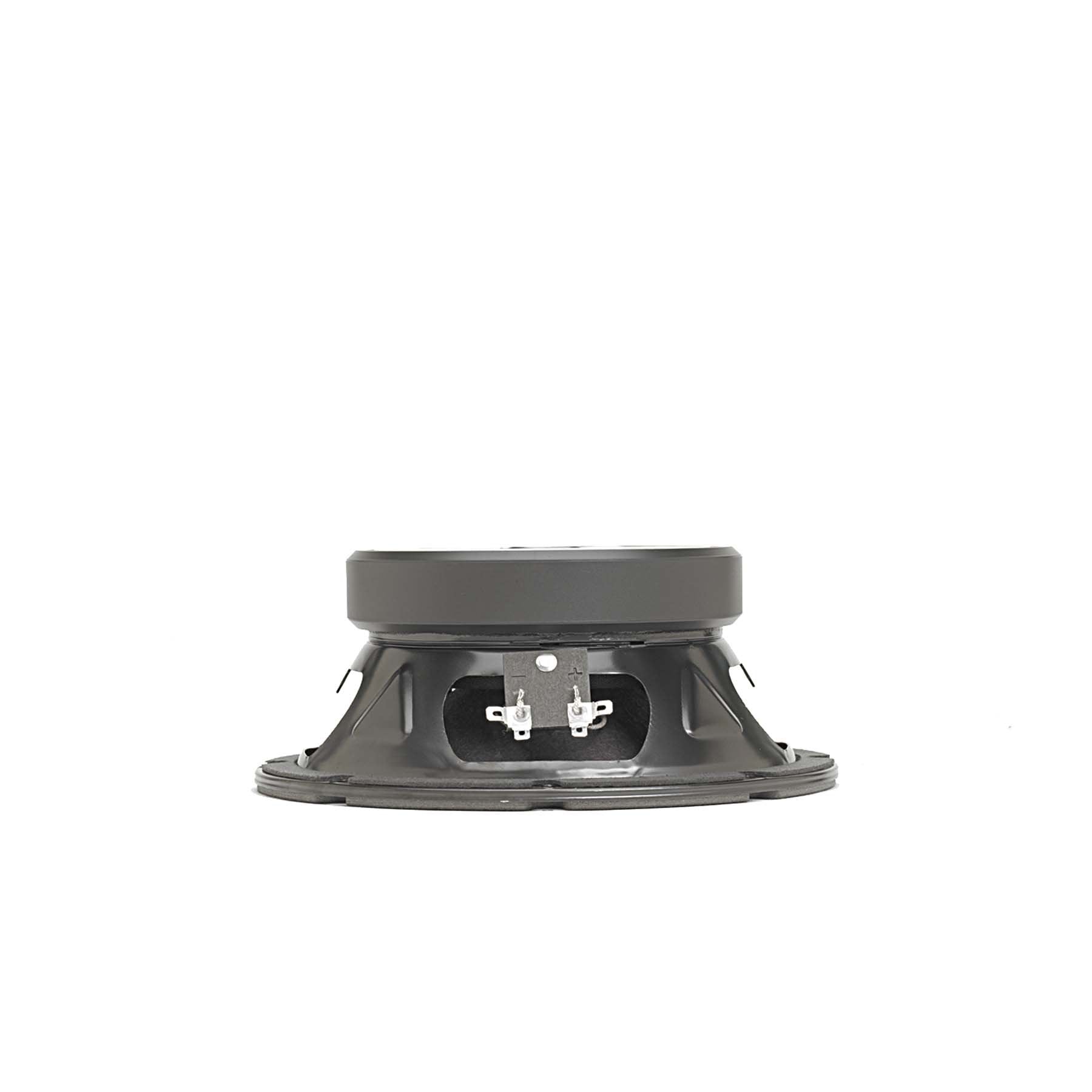

BETA-8A 8 view 3

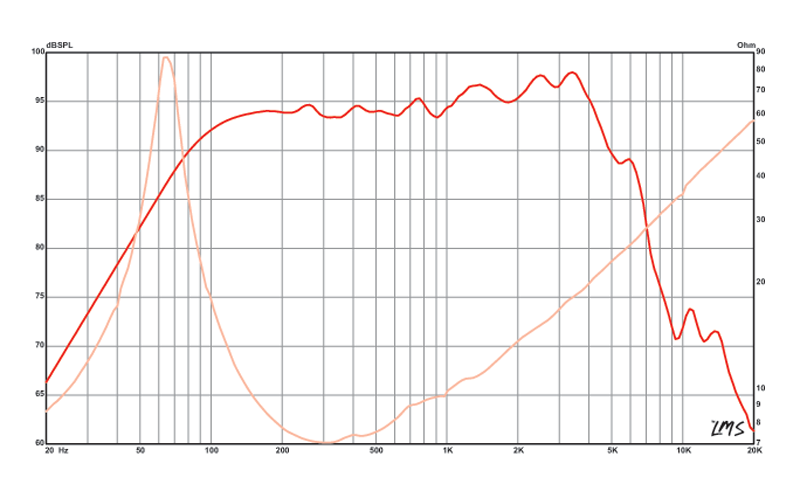

BETA-8A 8 view 4
Auto-advancing

Overview

LF DriverBETA series
Eminence

BETA-8A 8

Size
8"
Impedance
8Ω
RMS Power
225W
Sensitivity
95dB
EBP
155
Vented alignment
Vd
63cm³
Datasheet

T/S Parameters

Valid
Manufacturer
Fs65Hz
Qts0.38
Qes0.42
Qms5.0
Vas23.3L
Re6.0Ω
Le0.49mH
BL9.6Tm
Sd210cm²
Mms16g
Xmax3.0mm
SPL95dB
Power225W
Impedance8Ω
F Low78Hz
F High4000Hz

Pricing & availability

Price movement

Other offers

1 vendor
thomann
Updated 17 May 2026
Source: inc VAT · 20%
£96.00
inc VAT

Best current price

Updated 17 May 2026

bluearan
£71.54
Avg £83.77£12.23 below avg (-14.6%)
inc VAT
Buy now

Dimensions & Physical

Weight3.0kg
Diameter209.3mm
Overall Depth88.9mm
Cutout Diameter181.1mm
Bolt Circle Diameter196.8mm
