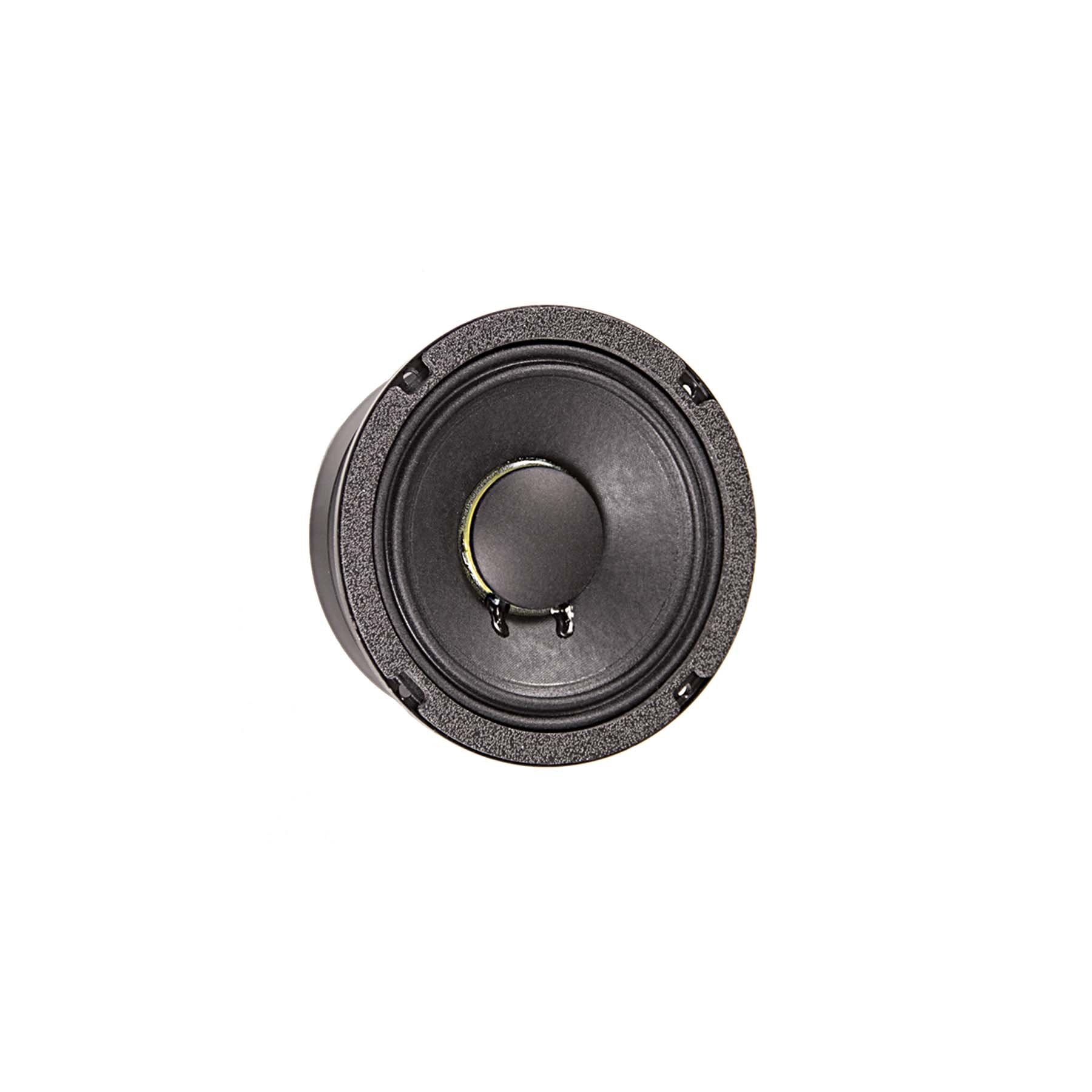

BETA-6A 6 view 2

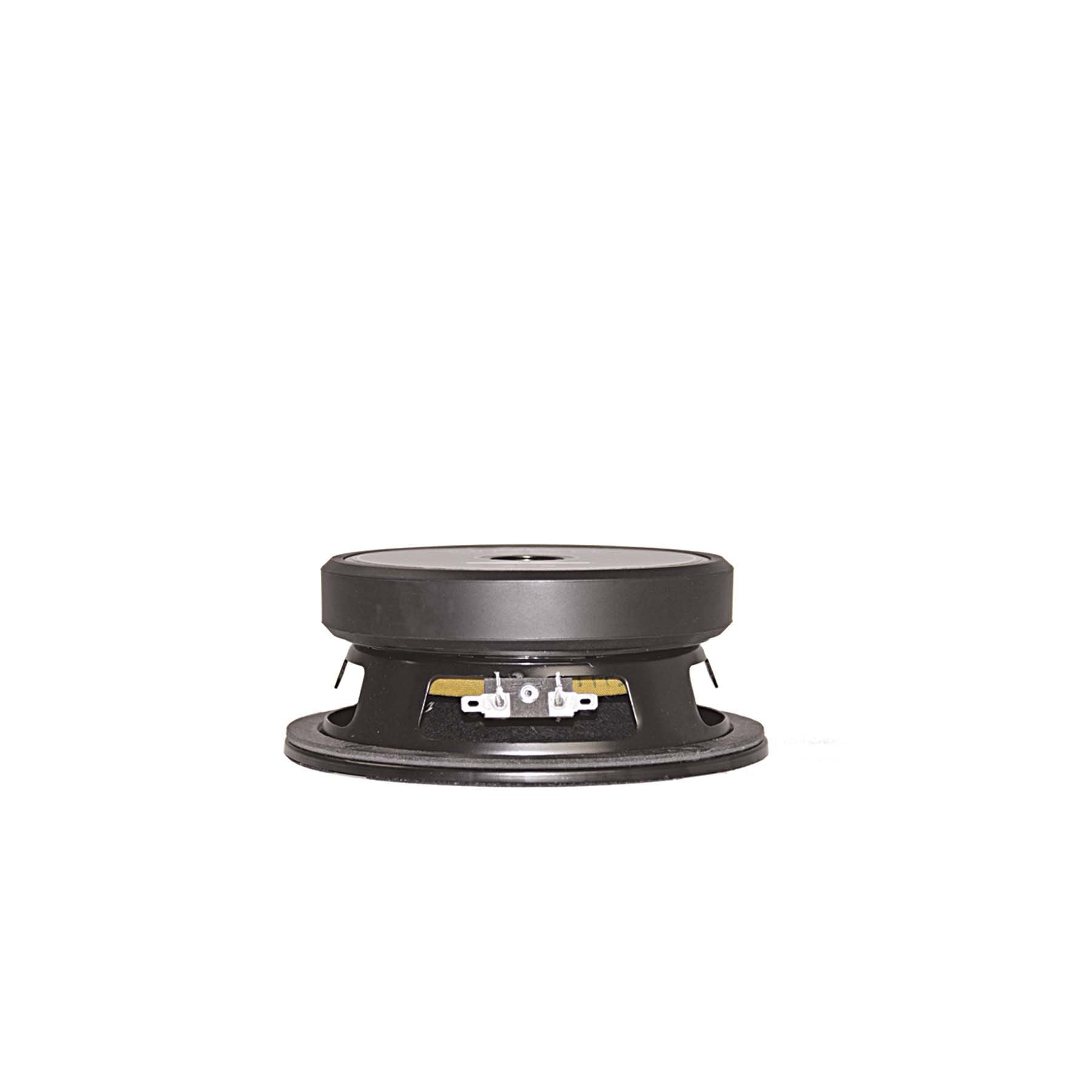

BETA-6A 6 view 3
BETA-6A 6 view 4
Auto-advancing

Overview

LF DriverBETA series
Eminence

BETA-6A 6

Size
6"
Impedance
8Ω
RMS Power
175W
Sensitivity
94dB
EBP
186
Vented alignment
Vd
58cm³
Datasheet

T/S Parameters

Valid
Manufacturer
Fs123Hz
Qts0.56
Qes0.66
Qms3.5
Vas3.5L
Re5.2Ω
Le0.43mH
BL8.1Tm
Sd130cm²
Mms11g
Xmax4.5mm
SPL94dB
Power175W
Impedance8Ω
F Low95Hz
F High4000Hz

Pricing & availability

Price movement

Best current price

Updated 17 May 2026

bluearan
£64.09
inc VAT
Buy now

Dimensions & Physical

Weight2.5kg
Diameter167.4mm
Overall Depth67.6mm
Cutout Diameter143.5mm
Bolt Circle Diameter153.9mm
