T/S Parameters
Valid
Fs407Hz
Qts1.35
Qes1.74
Qms6.0
Vas0.5L
Re5.3Ω
Le0.38mH
BL7.9Tm
Sd127cm²
Mms8g
Xmax1.5mm
SPL98dB
Power100W
Impedance8Ω
F Low400Hz
F High5000Hz
Pricing & availability
No standard offers found
Check the manufacturer website for current pricing.
Dimensions & Physical
Weight1.7kg
Diameter167.4mm
Overall Depth55.9mm
Cutout Diameter144.5mm
Bolt Circle Diameter153.9mm
Similar Drivers
Keep size fixed, then add or remove T/S params to change the ranking and the comparison rows.
Reference
Eminence

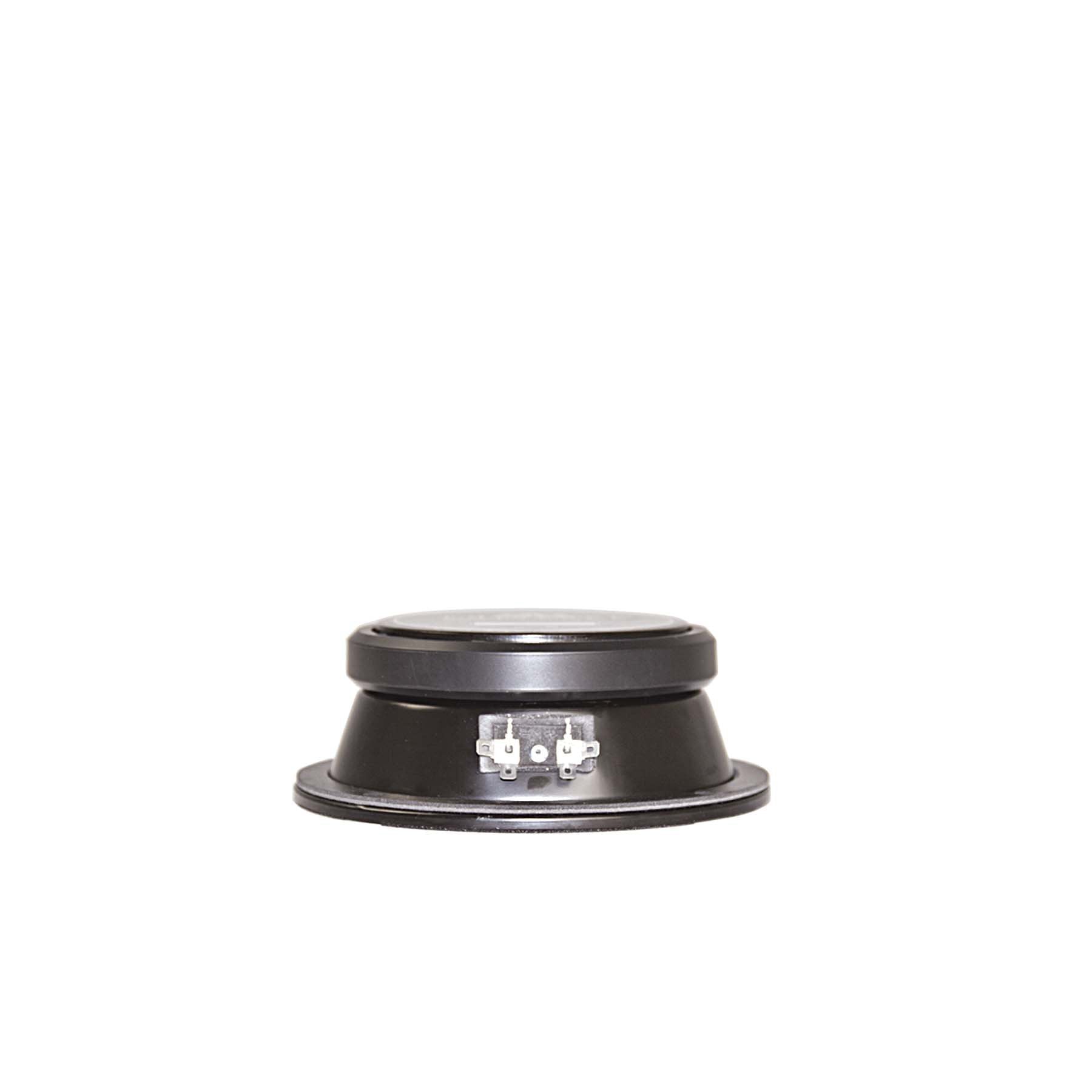

ALPHA-6CBMRA 6
6"
